Intuitive Parking Assist System

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM:

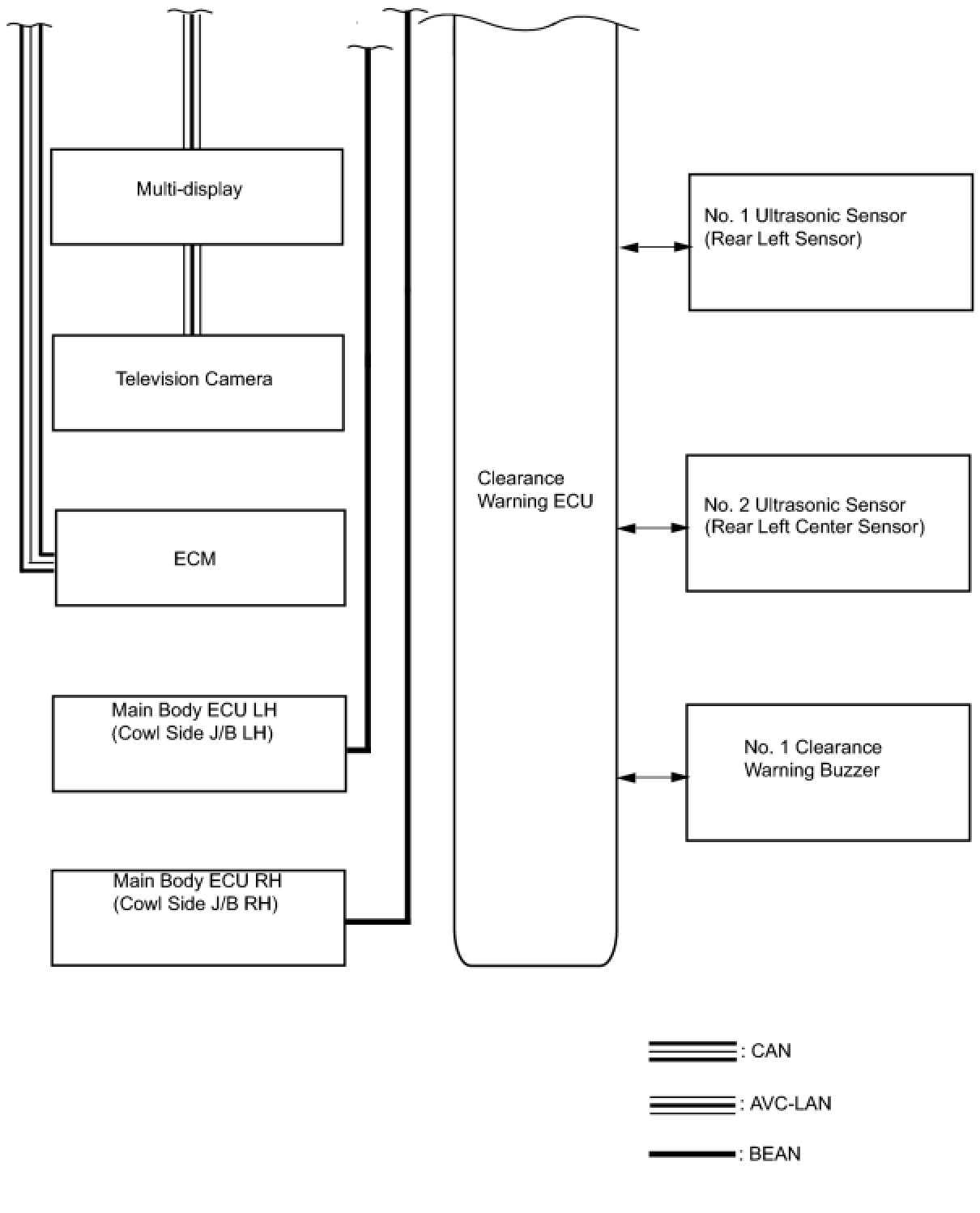

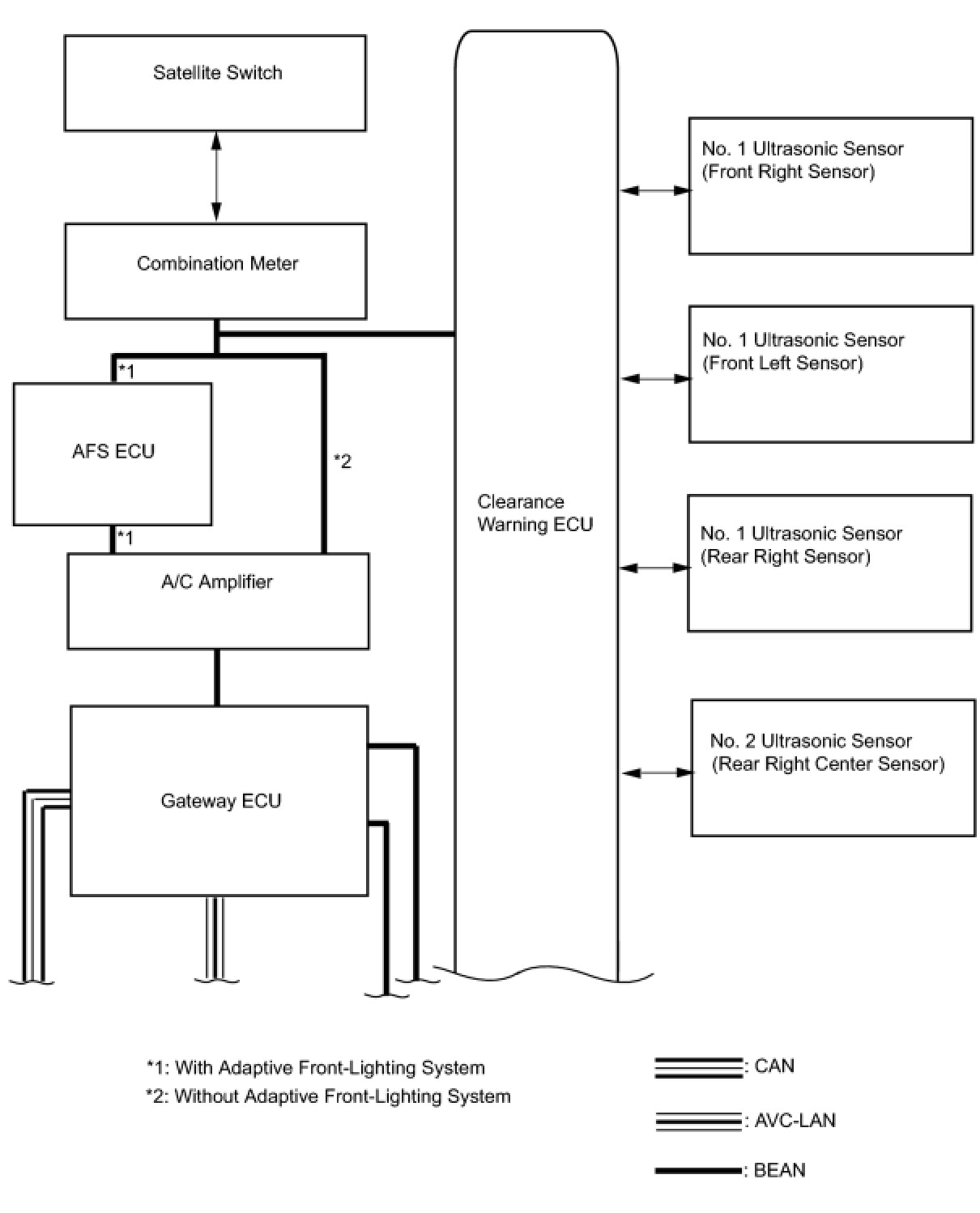

SYSTEM DIAGRAM

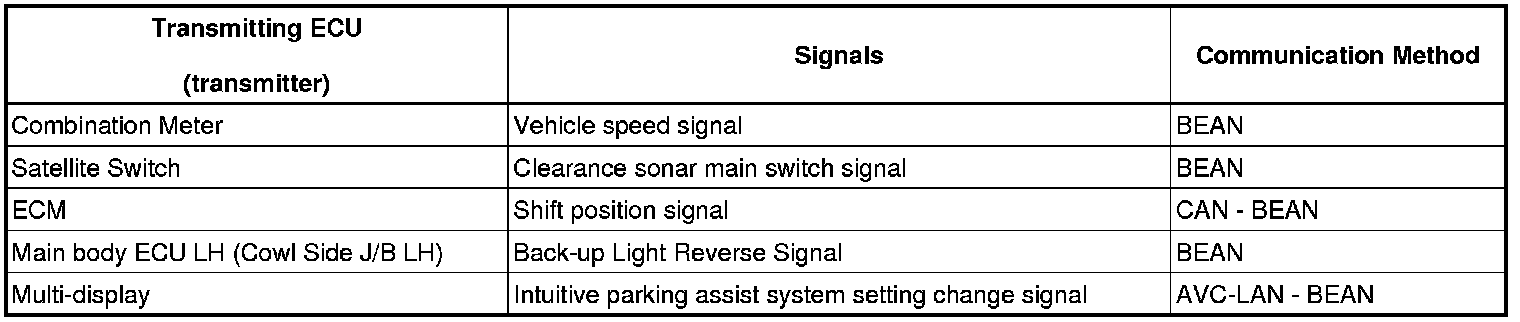

Input signal to clearance warning ECU

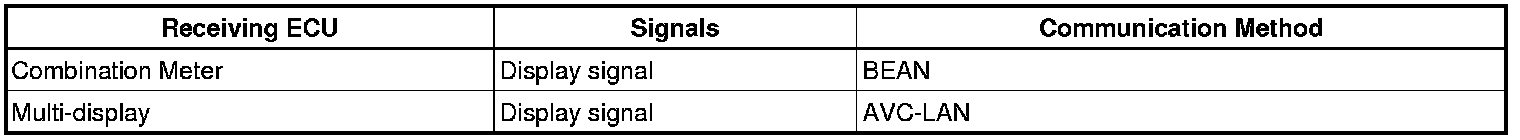

Output signal from clearance warning ECU






SYSTEM DESCRIPTION

1. GENERAL
(a) This system uses ultrasonic sensors to detect any obstacles at the corners and the rear of the vehicle. The system then informs the driver of the distance between the sensors and the obstacles as well as their positions by indicating them on the multi-display or multi-information display and by sounding a buzzer.

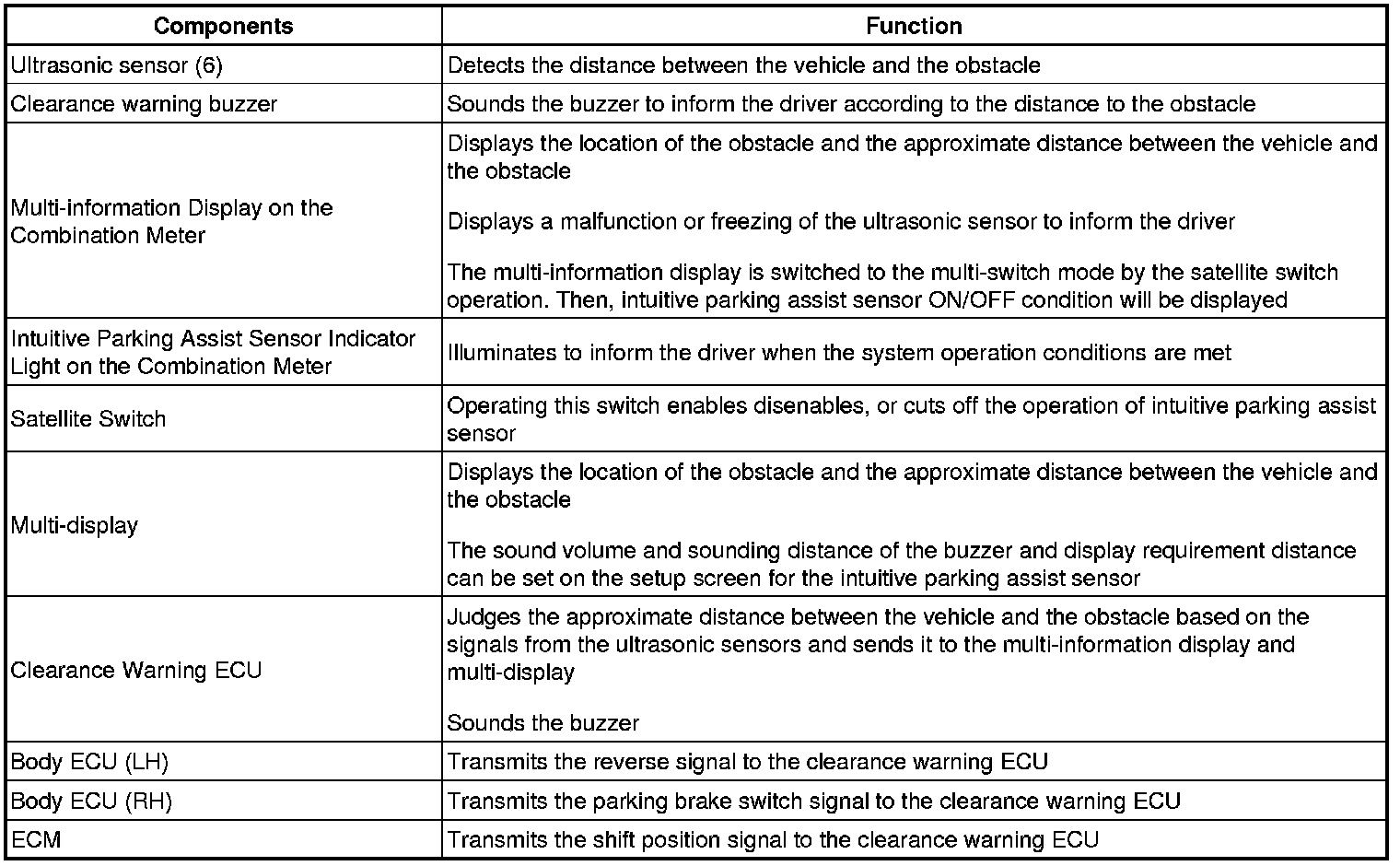

2. FUNCTION OF COMPONENTS






3. OPERATION EXPLANATION

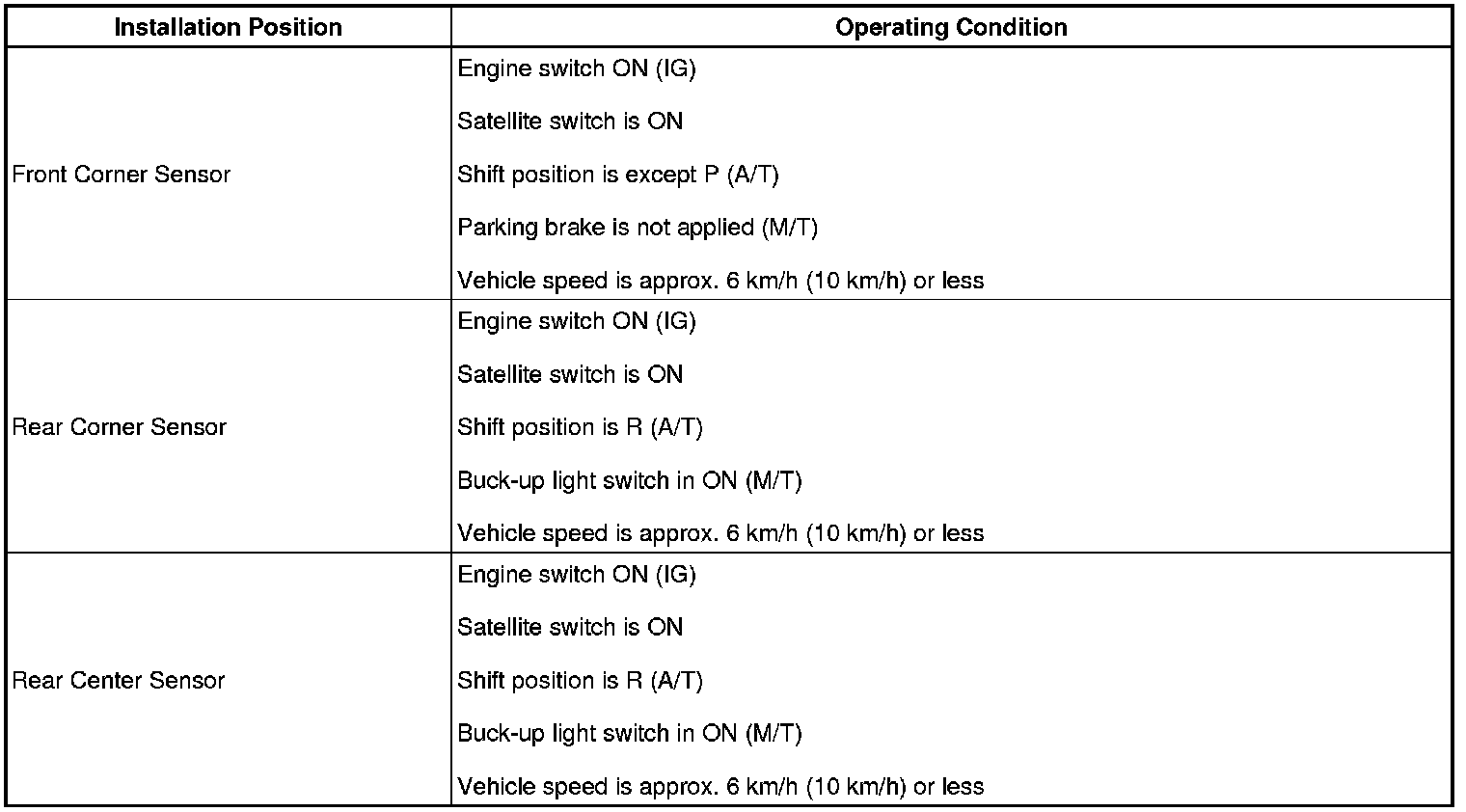

(a) The operating condition of each intuitive parking assist sensor differs according to the installation position as shown in the table bellow.






(b) The intuitive parking assist sensor then informs the driver of the distance between the sensors and the obstacles as well as their positions by displaying them on the multi-information display in the combination meter or multi-display and by sounding buzzer.
