Installation

THEFT DETERRENT: SECURITY HORN ASSEMBLY:

INSTALLATION

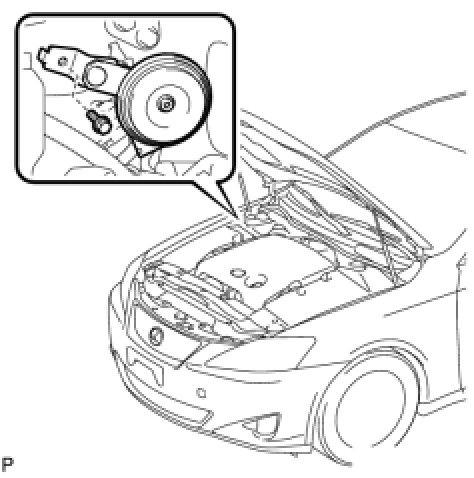

1. INSTALL SECURITY HORN ASSEMBLY
(a) Connect the connector.






(b) Install the security horn assembly with the bolt.
2. INSTALL BATTERY
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal Repair Instruction - Initialization.
