Dynamic Radar Cruise Control System

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: U0123: Communication Error of Yaw Rate Sensor

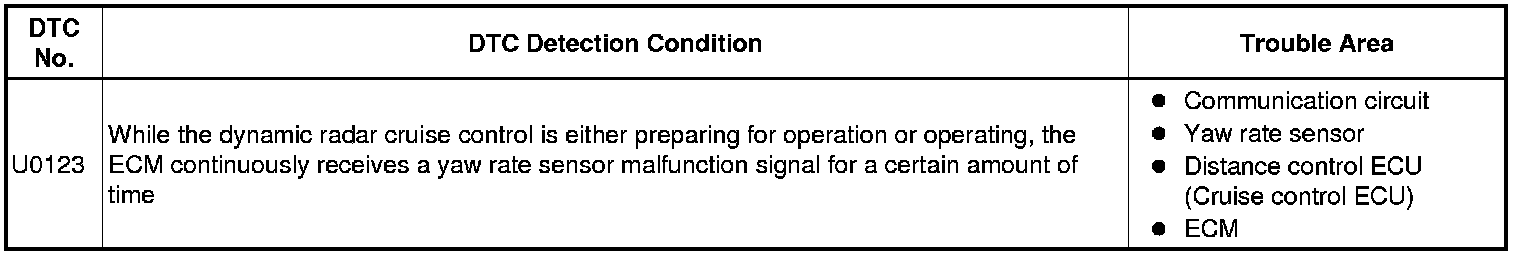

DTC U0123 - Communication Error of Yaw Rate Sensor

DESCRIPTION

This circuit detects the yaw rate of the vehicle and transmits its signal to the skid control ECU and distance control ECU.






INSPECTION PROCEDURE
HINT: This circuit uses CAN communication. Therefore, if there are any malfunctions in the communication circuit, one or more DTCs in the CAN communication system are output.

1. CHECK CAN COMMUNICATION SYSTEM
Refer to HOW TO PROCEED WITH TROUBLESHOOTING How to Proceed With Troubleshooting.
