4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0500: Vehicle Speed Sensor "A"

DTC P0500 - Vehicle Speed Sensor "A"

DESCRIPTION

The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU. The skid control ECU converts these wheel speed signals into a 4-pulse signal and outputs it to the ECM via the combination meter. The ECM determines the vehicle speed based on the frequency of these pulse signals.









MONITOR DESCRIPTION

Manual Transaxle Models:
The ECM assumes that the vehicle is being driven while the vehicle speed sensor signal is being transmitted by the combination meter. If there is no signal from the No. 1 vehicle speed sensor despite this condition being met, the ECM interprets this as a malfunction in the sensor. The ECM then illuminates the MIL and sets the DTC.

MONITOR STRATEGY

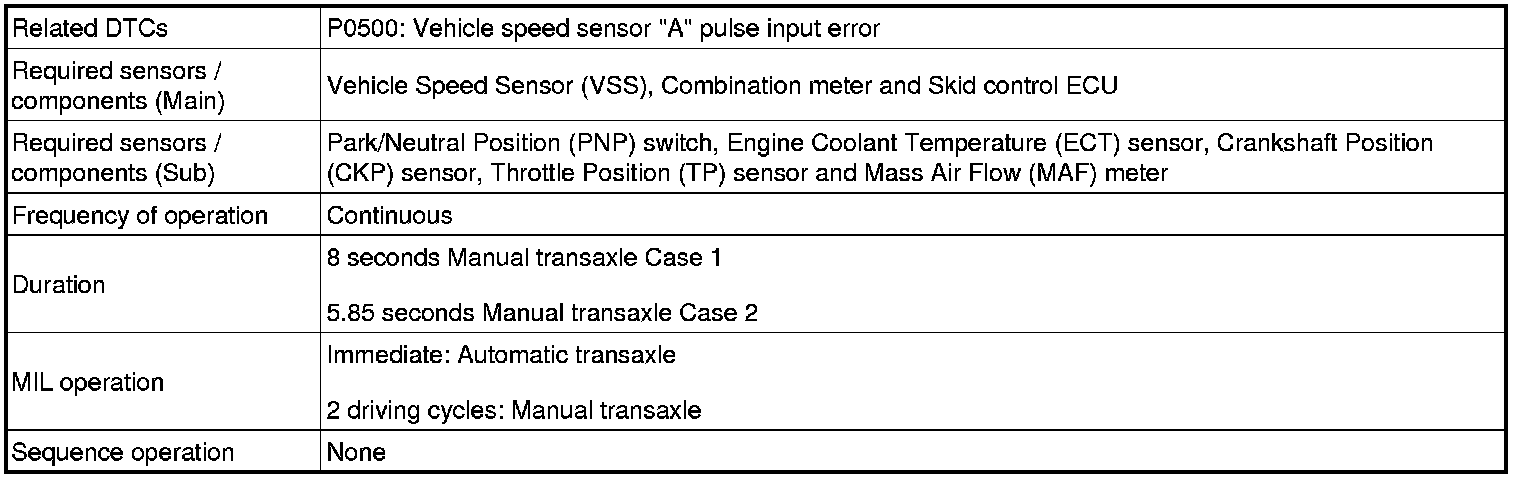

TYPICAL ENABLING CONDITIONS

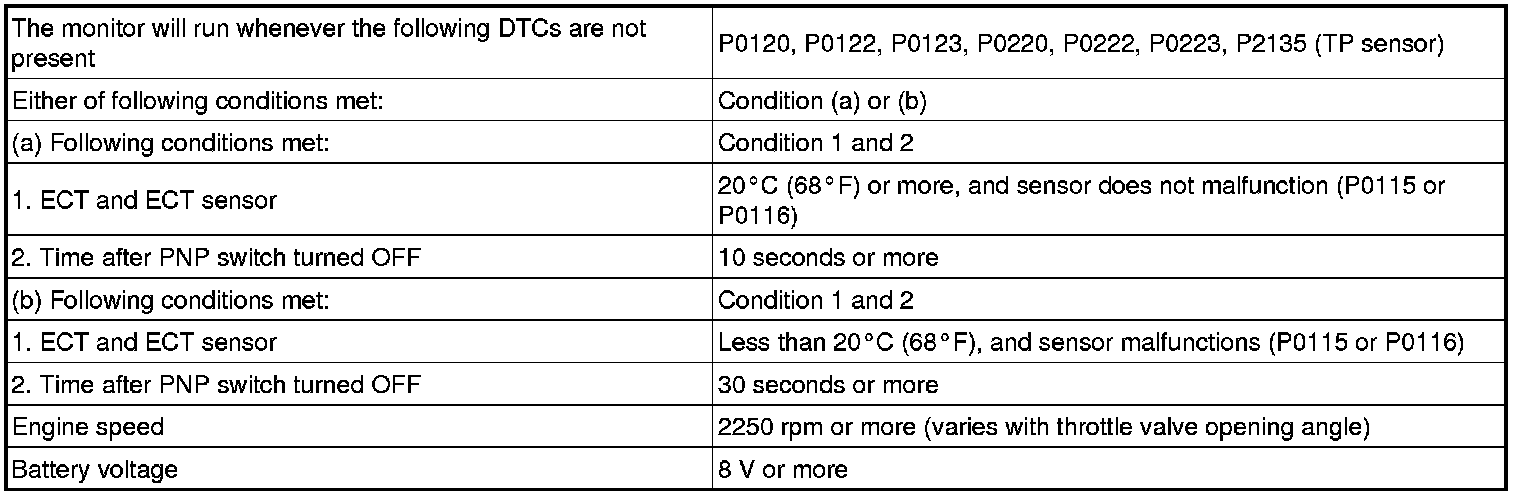

M/T:

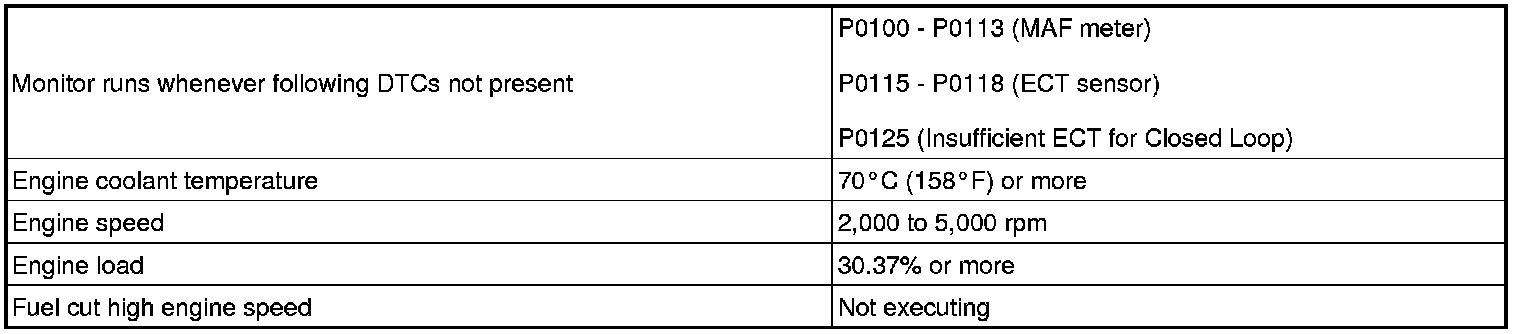

A/T:

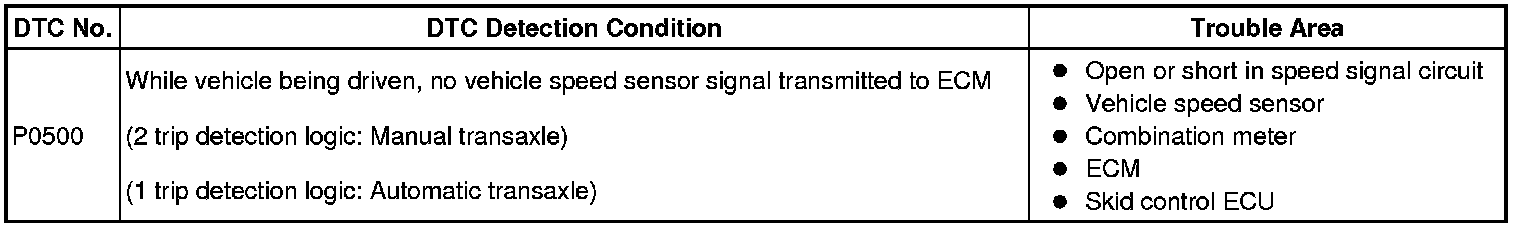

TYPICAL MALFUNCTION THRESHOLDS





WIRING DIAGRAM





INSPECTION PROCEDURE
HINT: Read freeze frame data using Techstream or the OBD II scan tool. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. INSPECT SPEEDOMETER (METER OPERATION)
(a) Drive the vehicle and check if operation of the speedometer in the combination meter is normal.
HINT: The vehicle speed sensor is operating normally if the speedometer display is normal.

NG -- CHECK SPEEDOMETER CIRCUIT
OK -- Continue to next step.
2. INSPECT ECM





(a) Shift the lever to the neutral position.
(b) Jack up the vehicle.
(c) Turn the engine switch on (IG).





(d) Measure the voltage according to the value(s) in the table below as the wheel is turned slowly.
Standard:





HINT: The output voltage should fluctuate up and down similarly to the diagram on the left when the wheel is turned slowly.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM
