Vehicle Stability Control System (w/o VDIM)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (w/o VDIM):

DIAGNOSTIC TROUBLE CODE CHART

- If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the applicable Diagnostic Trouble Code Test.
- Inspect the fuse and relay before investigating the trouble areas as shown in the table below.

DTC chart of ABS:

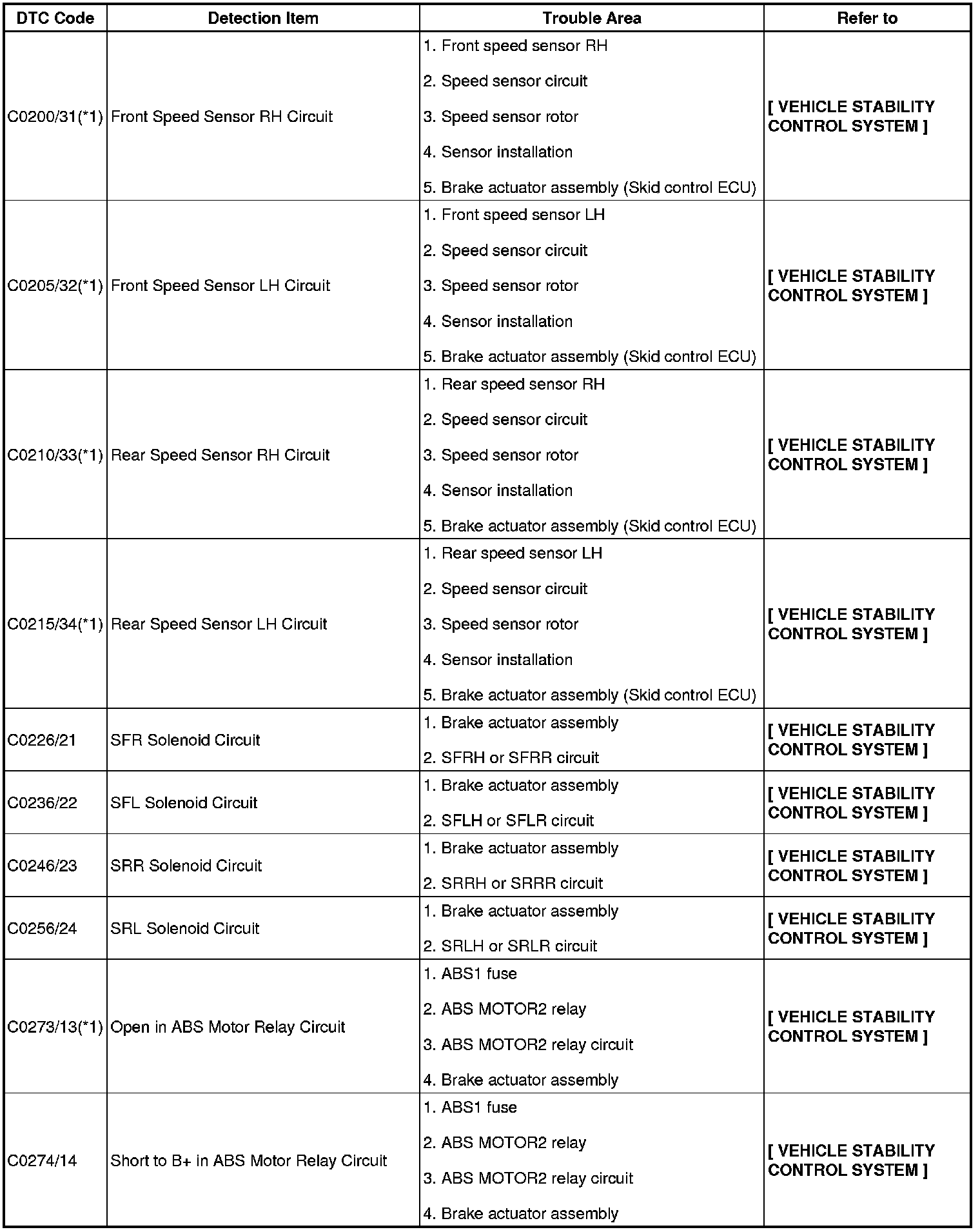

C0200/31 - C0274/14:

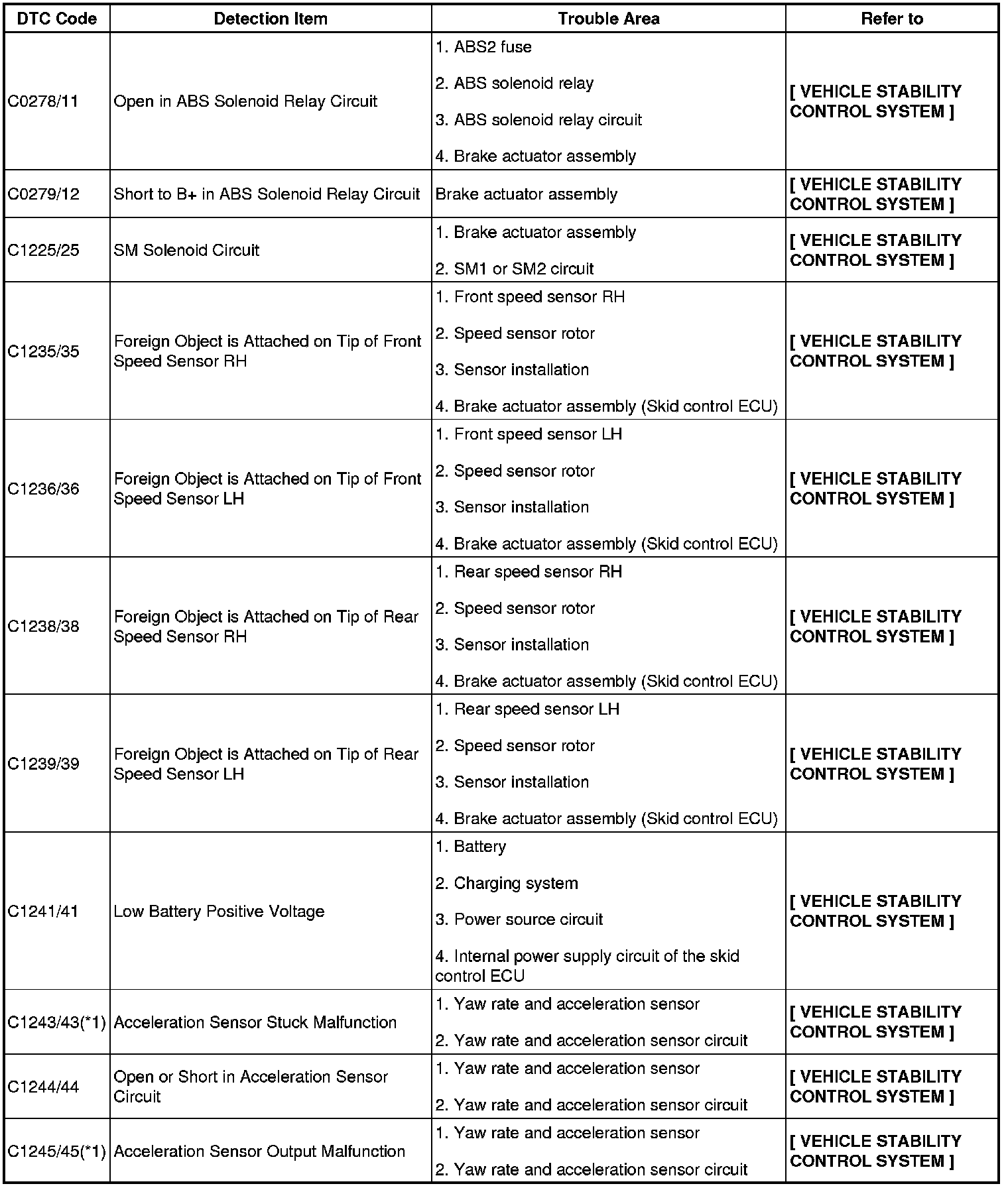

C0278/11 - C1245/45:

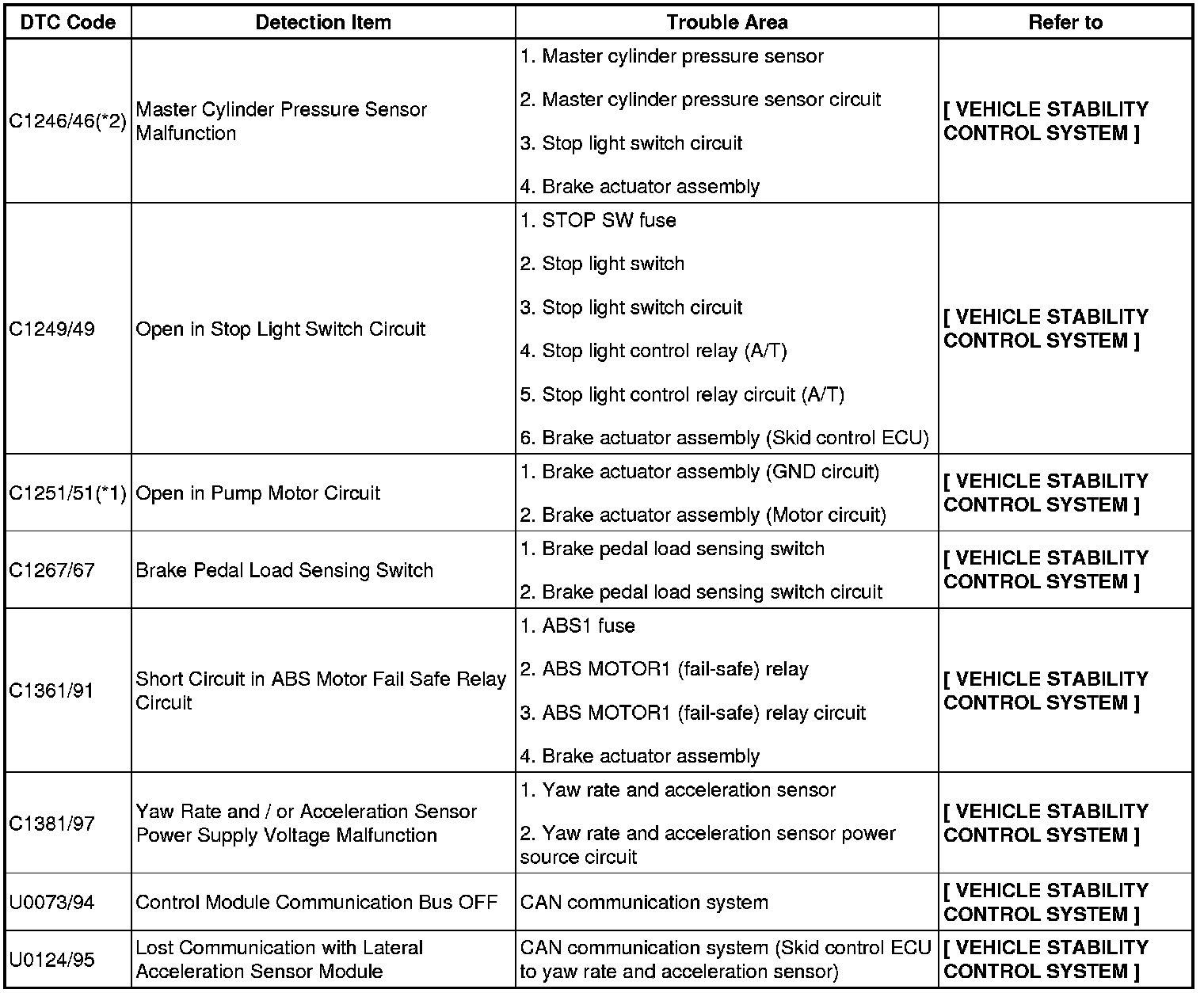

C1246/46 - U0124/95:

(*1, *2):
Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed:

- (*1):
1 Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
2 Clear the DTC.

- (*2):
1 Keep the vehicle stationary for 5 seconds or more and depress the brake pedal lightly 2 or 3 times.
2 Drive the vehicle at the vehicle speed of 31 mph (50 km/h) and keep depressing the brake pedal strongly for approximately 3 seconds.
3 Repeat the above operation 3 times or more and check that the ABS warning light goes off.
4 Clear the DTC.

HINT: In some cases, Techstream cannot be used when the ABS warning light remains on.

DTC chart of VSC:

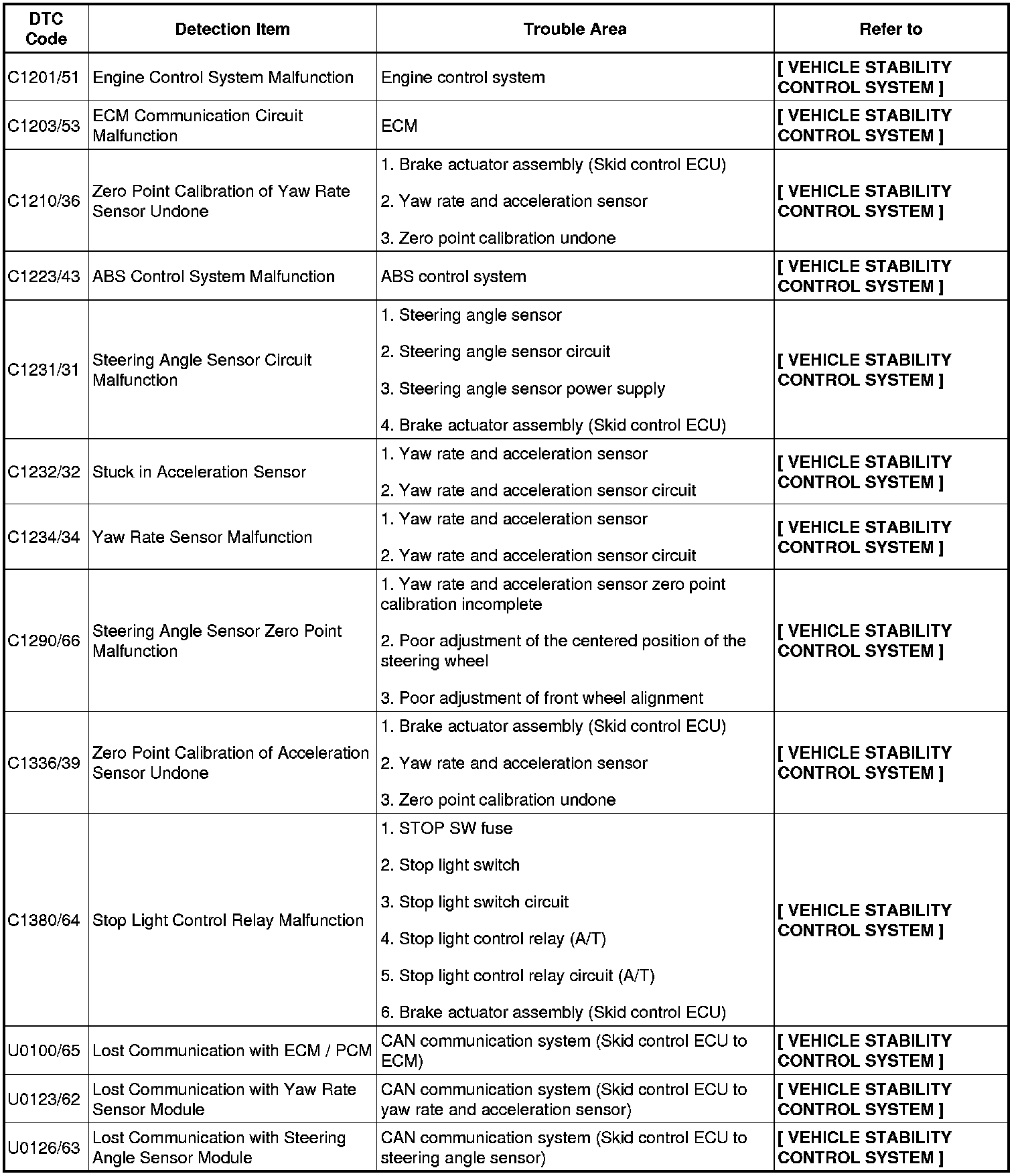

C1201/51 - U0126/63:

HINT: In some cases, Techstream cannot be used when the VSC warning (multi-information display and master caution indicator light) light remains on.

Test Mode DTC of ABS:

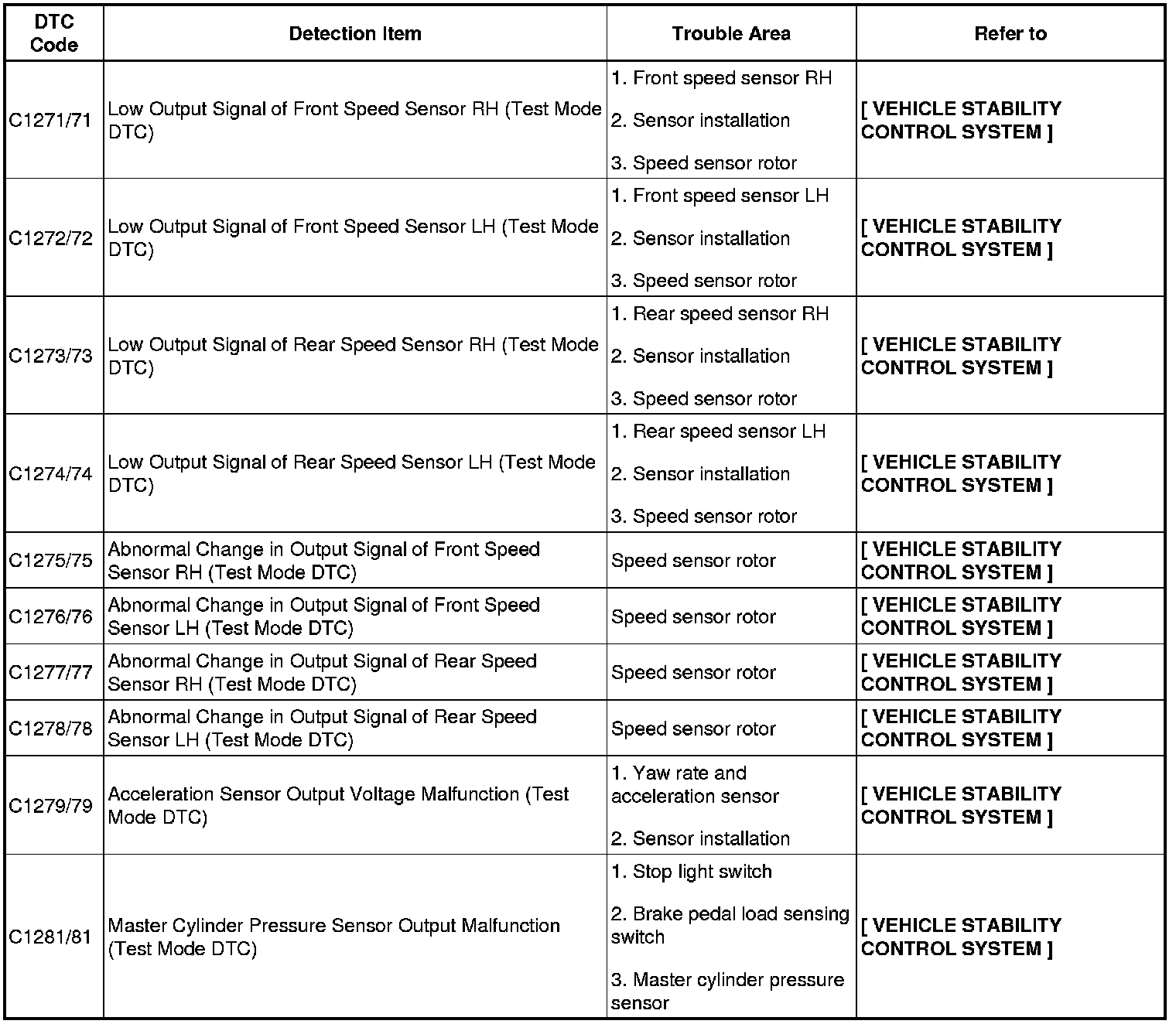

C1271/71 - C1281/81:

Test mode DTC of VSC:

C0371/71:
