Tire Pressure Warning System

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM:

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a trouble code is displayed during the DTC check, inspect the circuit listed for that code. For details of each code, refer to the applicable Diagnostic Trouble Code Test.

Tire Pressure Warning System:

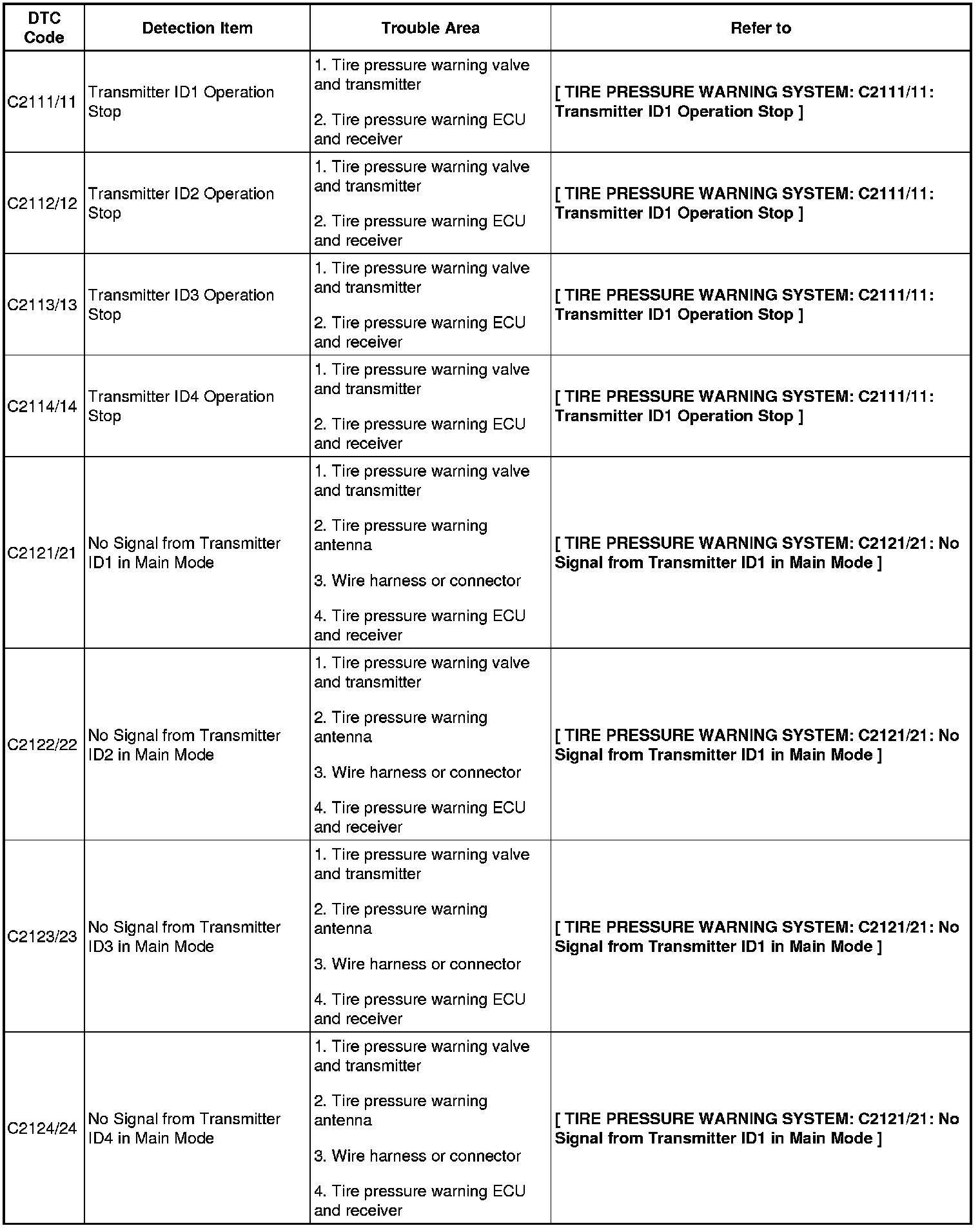

C2111/11 - C2124/24:

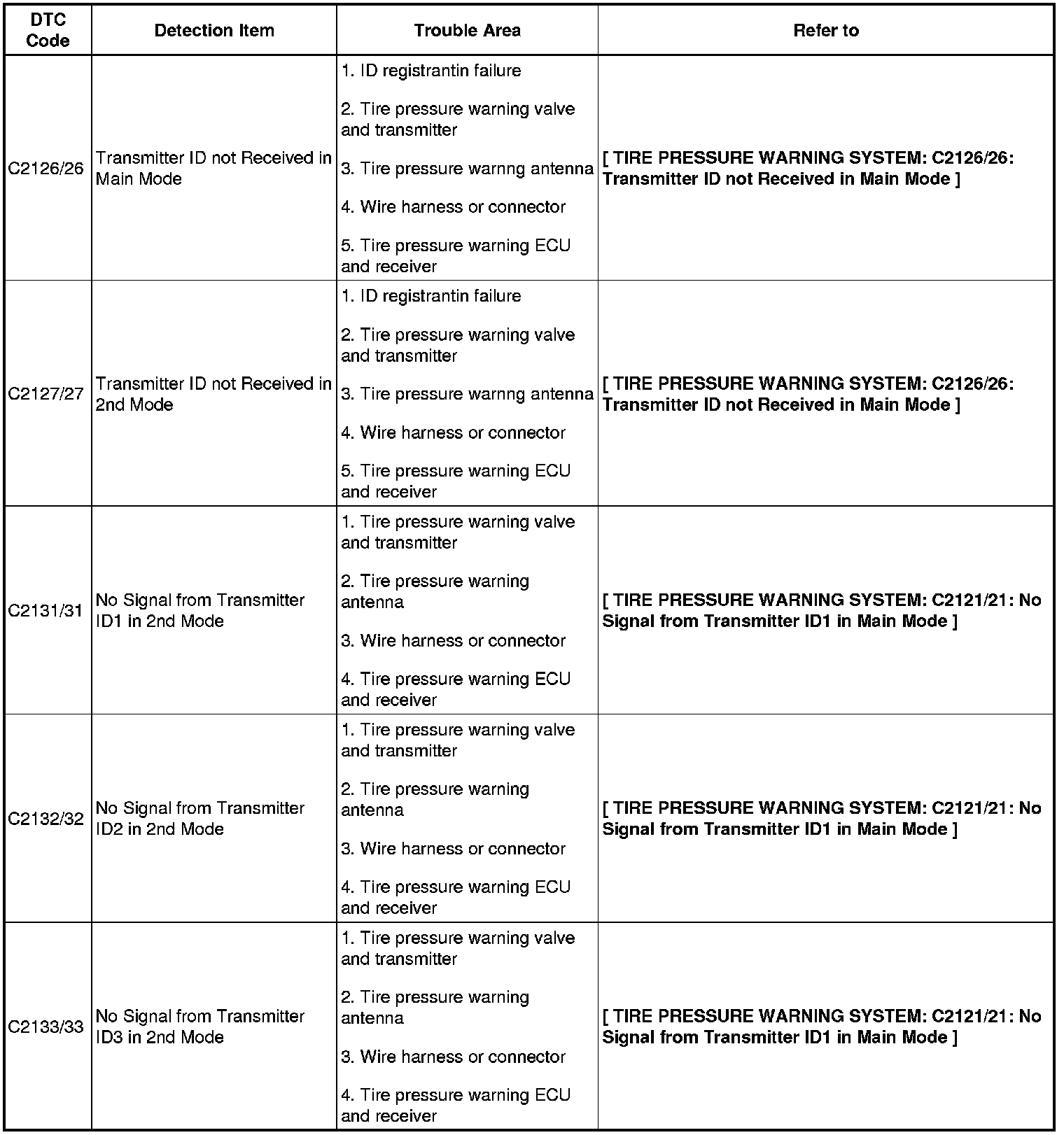

C2126/26 - C2133/33:

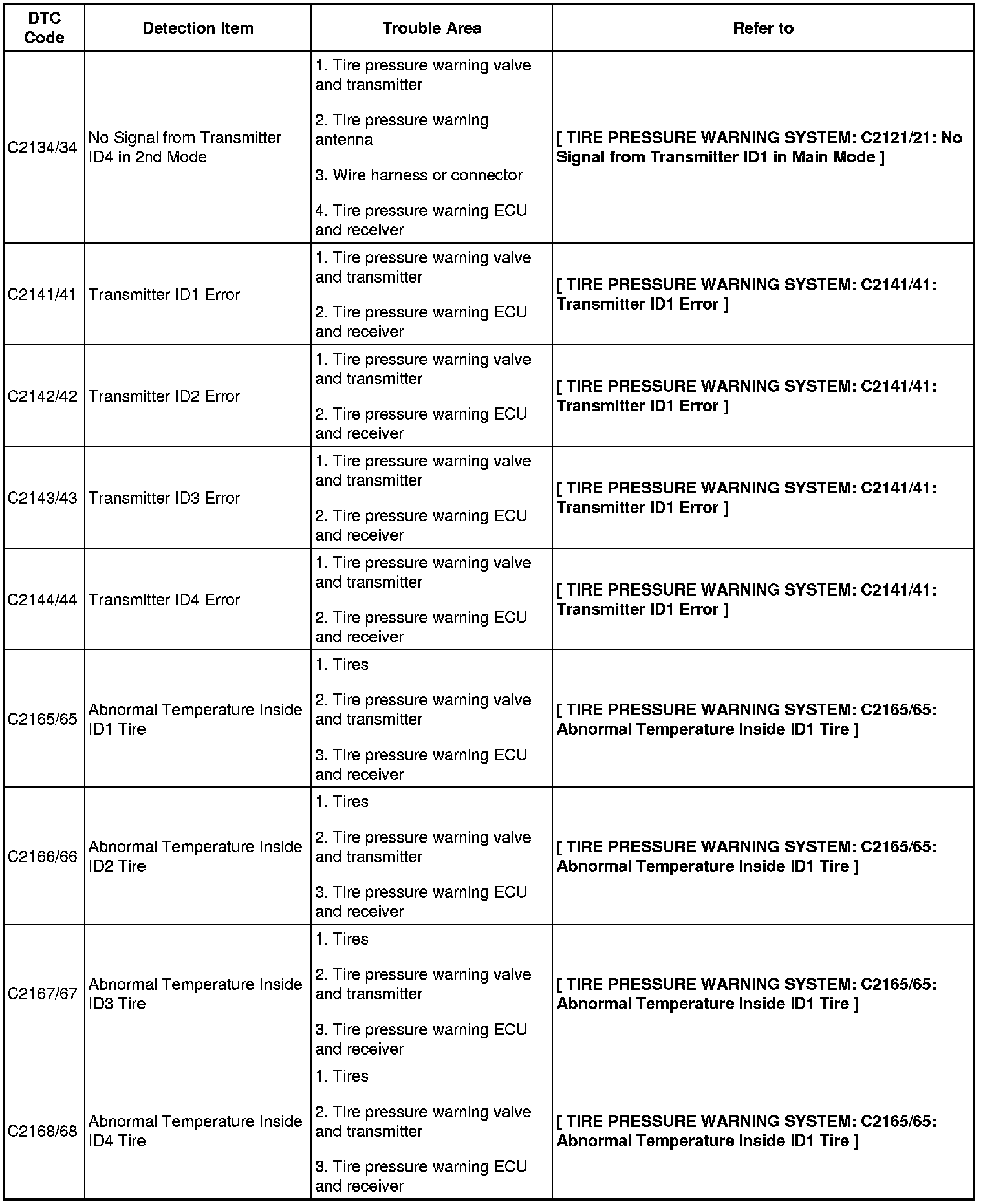

C2134/34 - C2168/68:

C2171/71 - C2183/83:

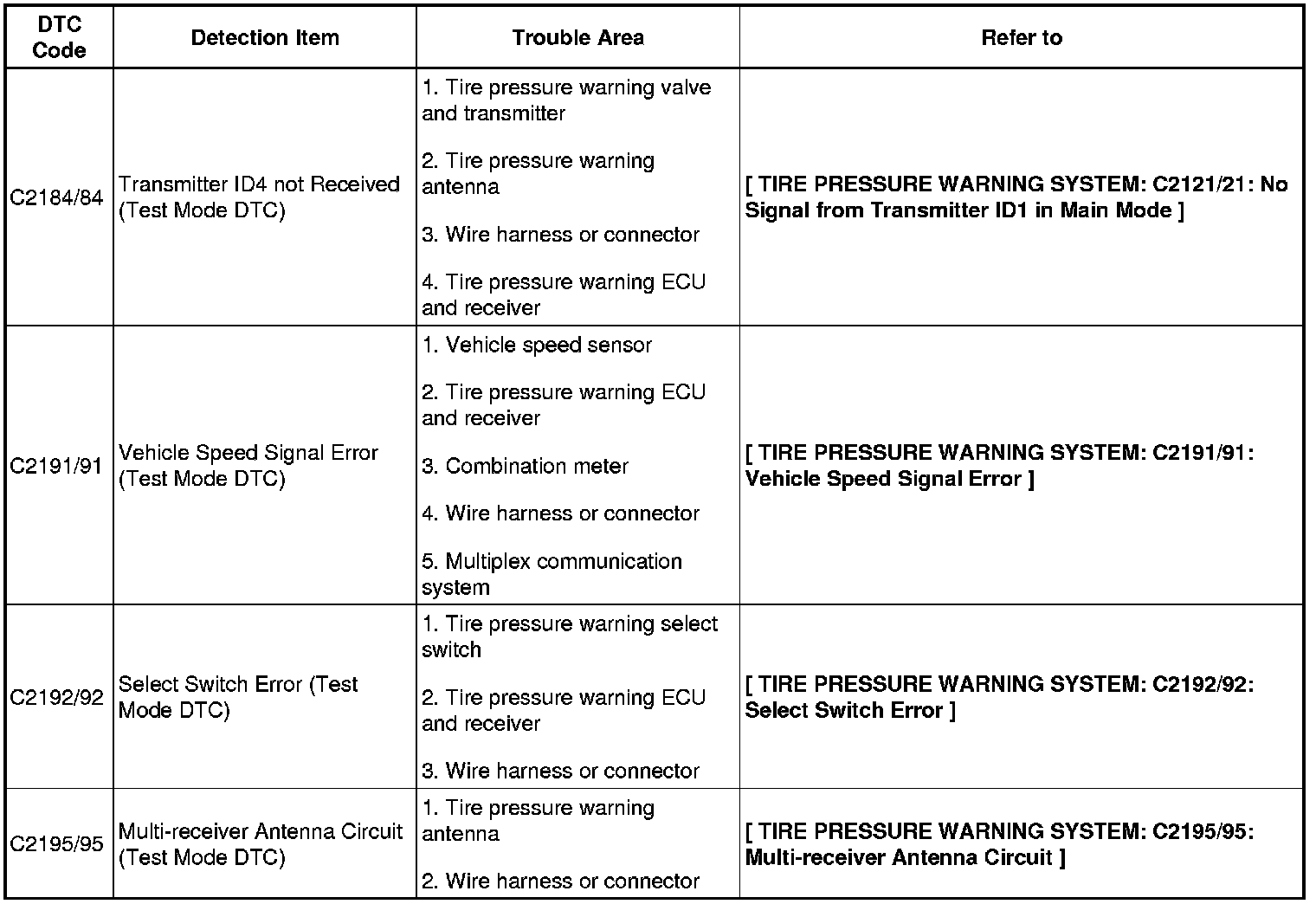

C2184/84 - C2195/95:
