4GR-FSE STARTING: SMART ACCESS SYSTEM WITH PUSH-BUTTON START:
DIAGNOSTIC TROUBLE CODE CHART
SMART ACCESS SYSTEM WITH PUSH-BUTTON START

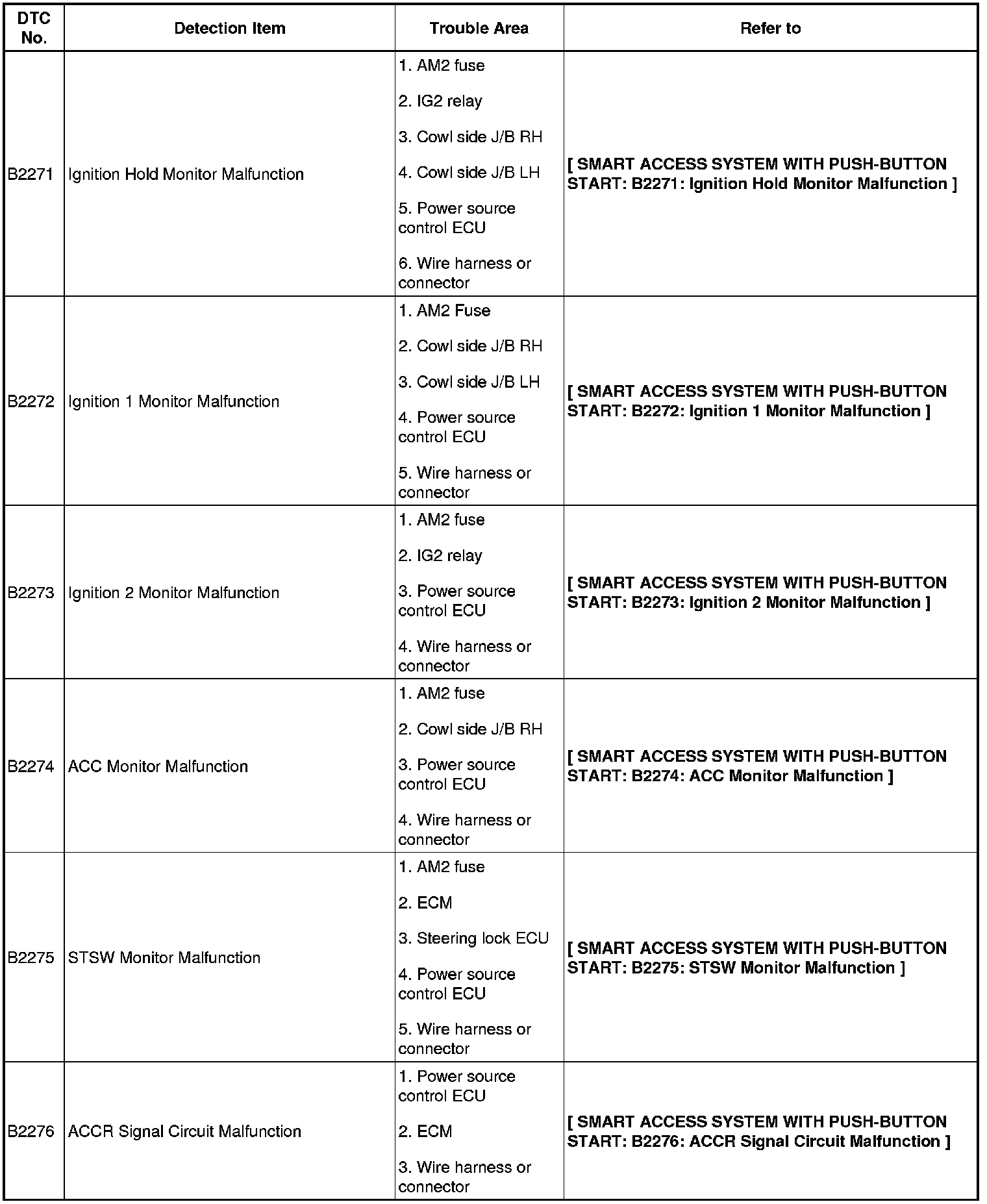

B2271 - B2276:

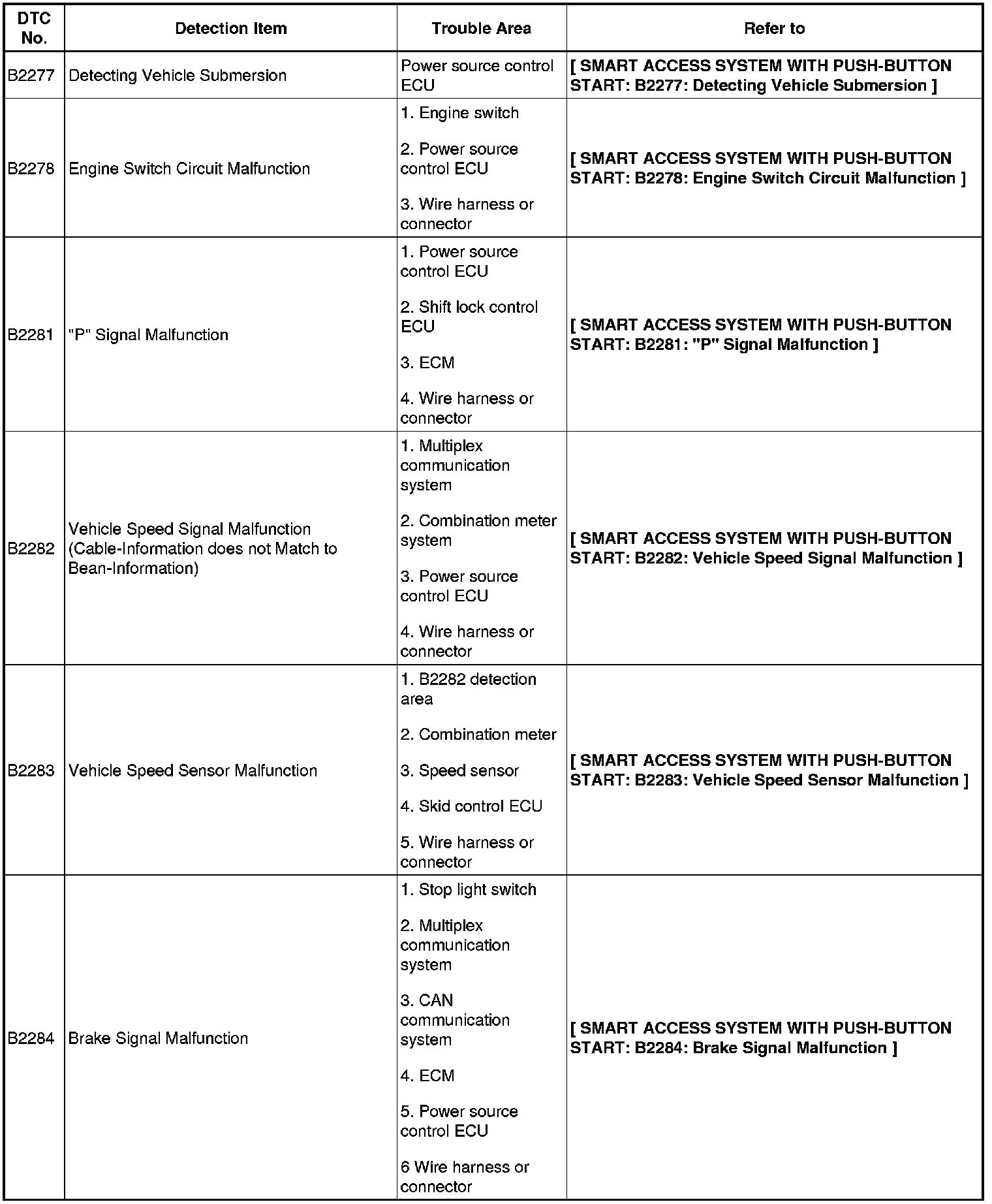

B2777 - B2284:

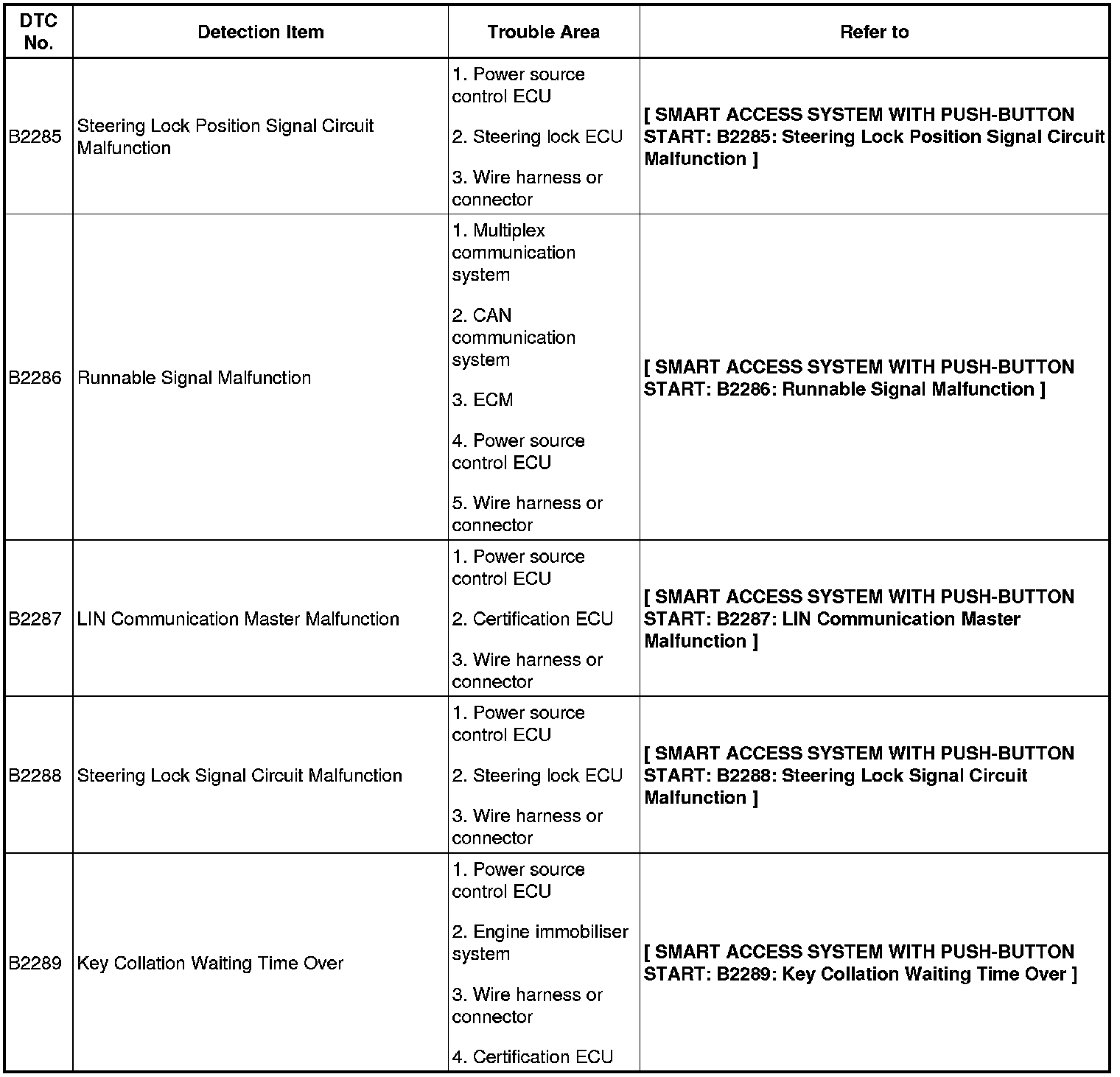

B2285 - B2289:
