SFI System

4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM:

DIAGNOSTIC TROUBLE CODE CHART

HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.
If a DTC is displayed, check the trouble area for the DTC listed in the table below. For details of each DTC.

*1: Except KOREA
*2: Except KOREA and TAIWAN
*3: MIL flashes when a catalyst damaged misfire is detected.

SFI SYSTEM

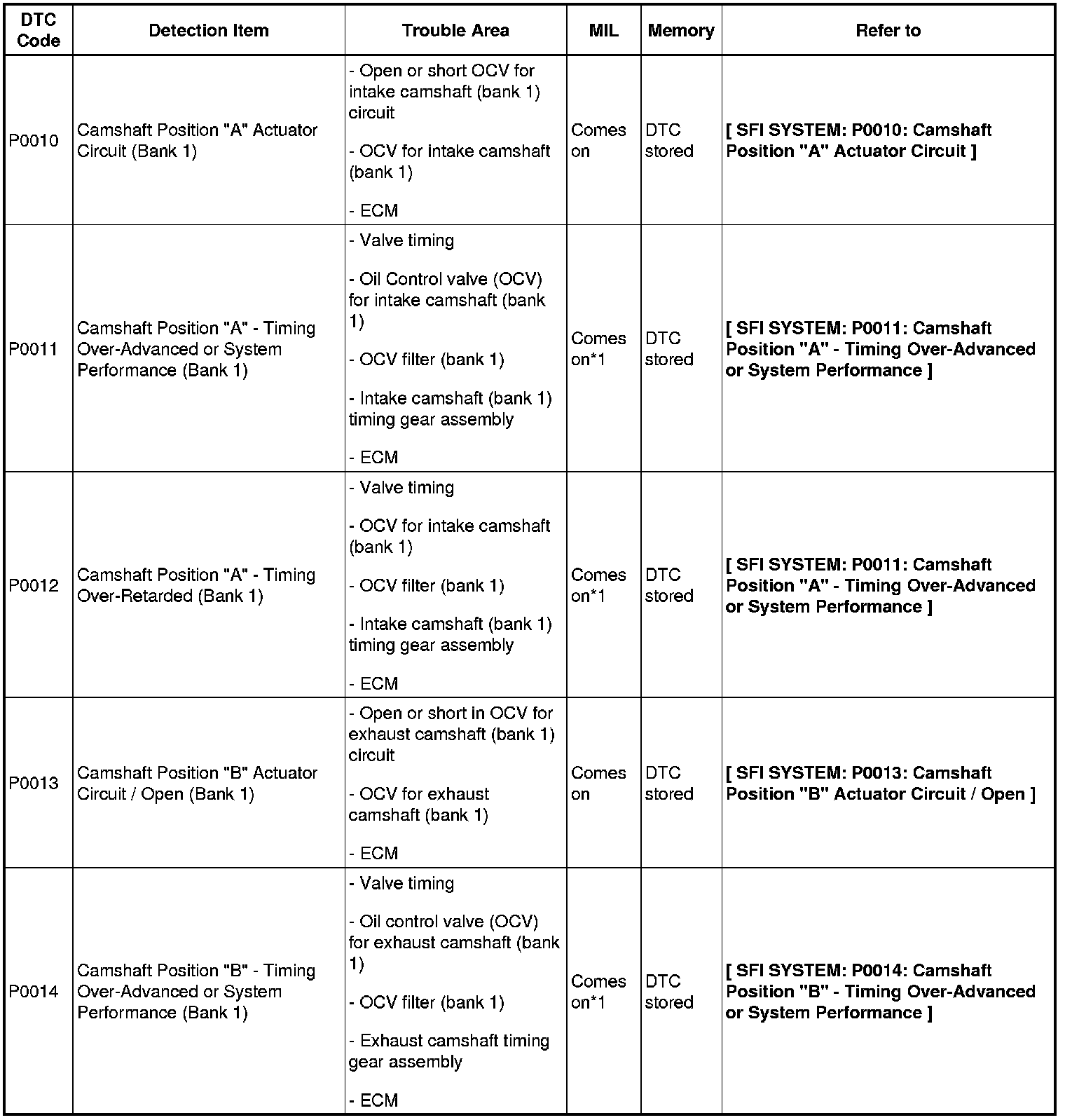

P0010 - P0014:

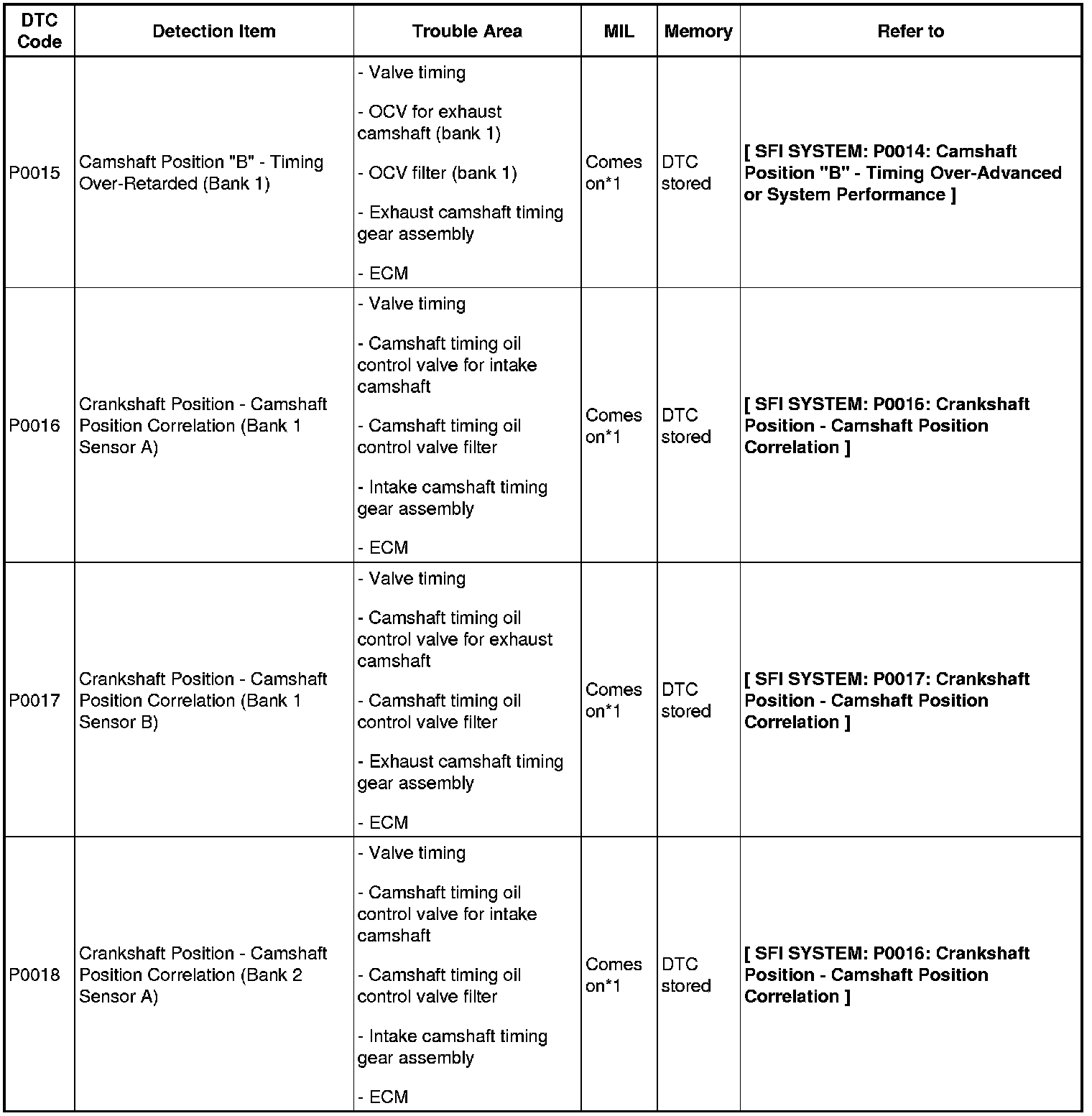

P0015 - P0018:

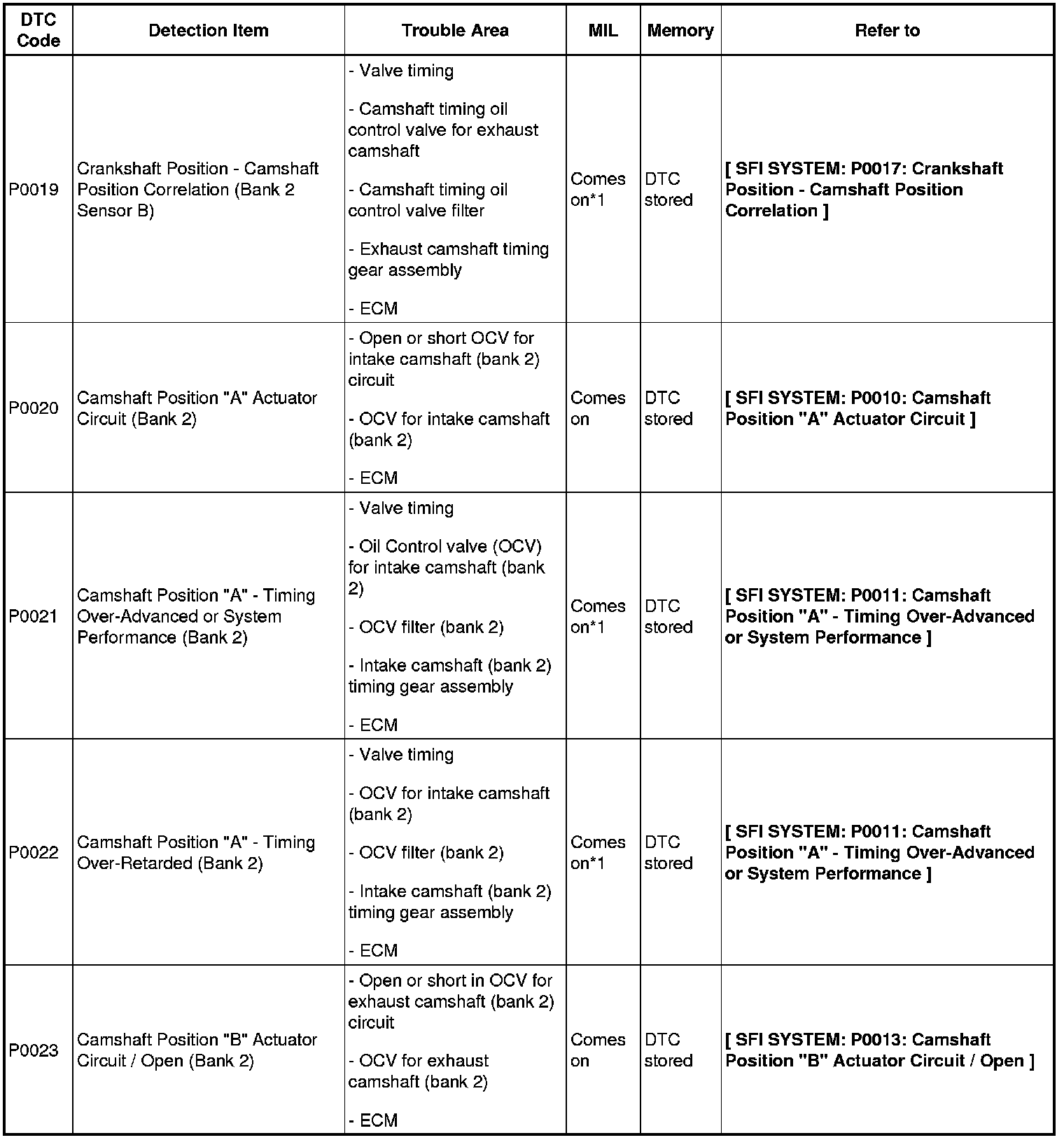

P0019 - P0023:

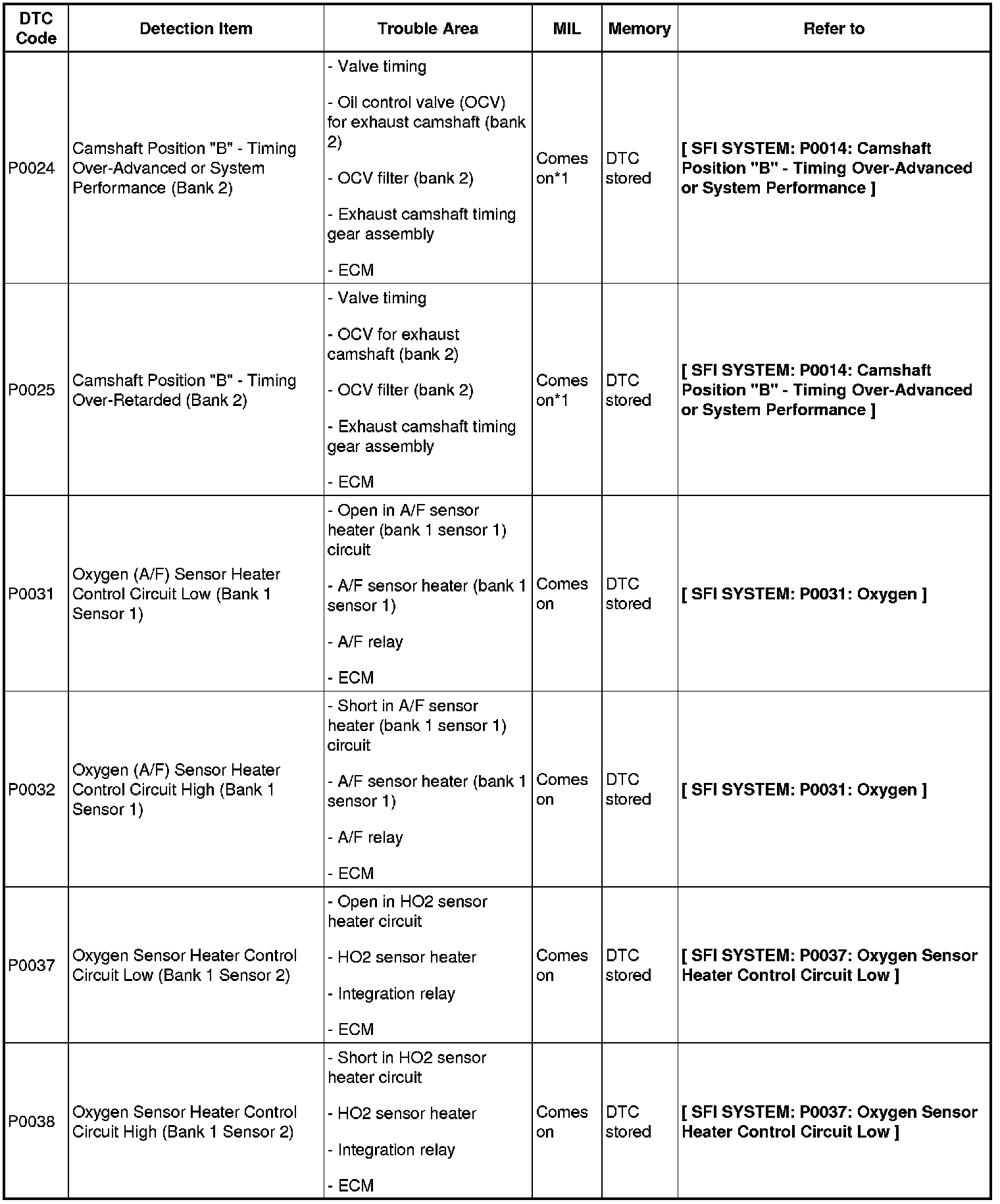

P0024 - P0038:

P0051 - P0087:

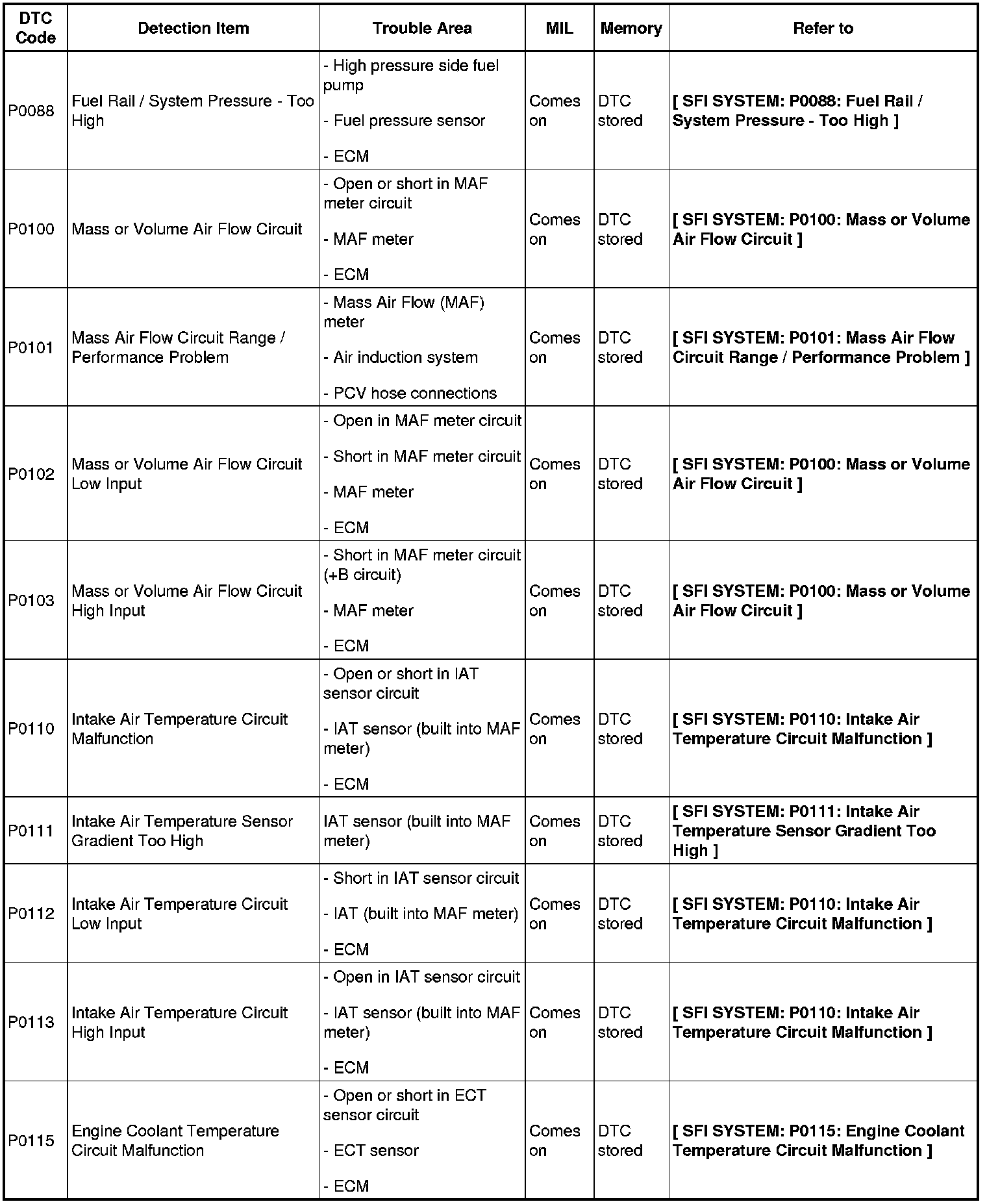

P0088 - P0115:

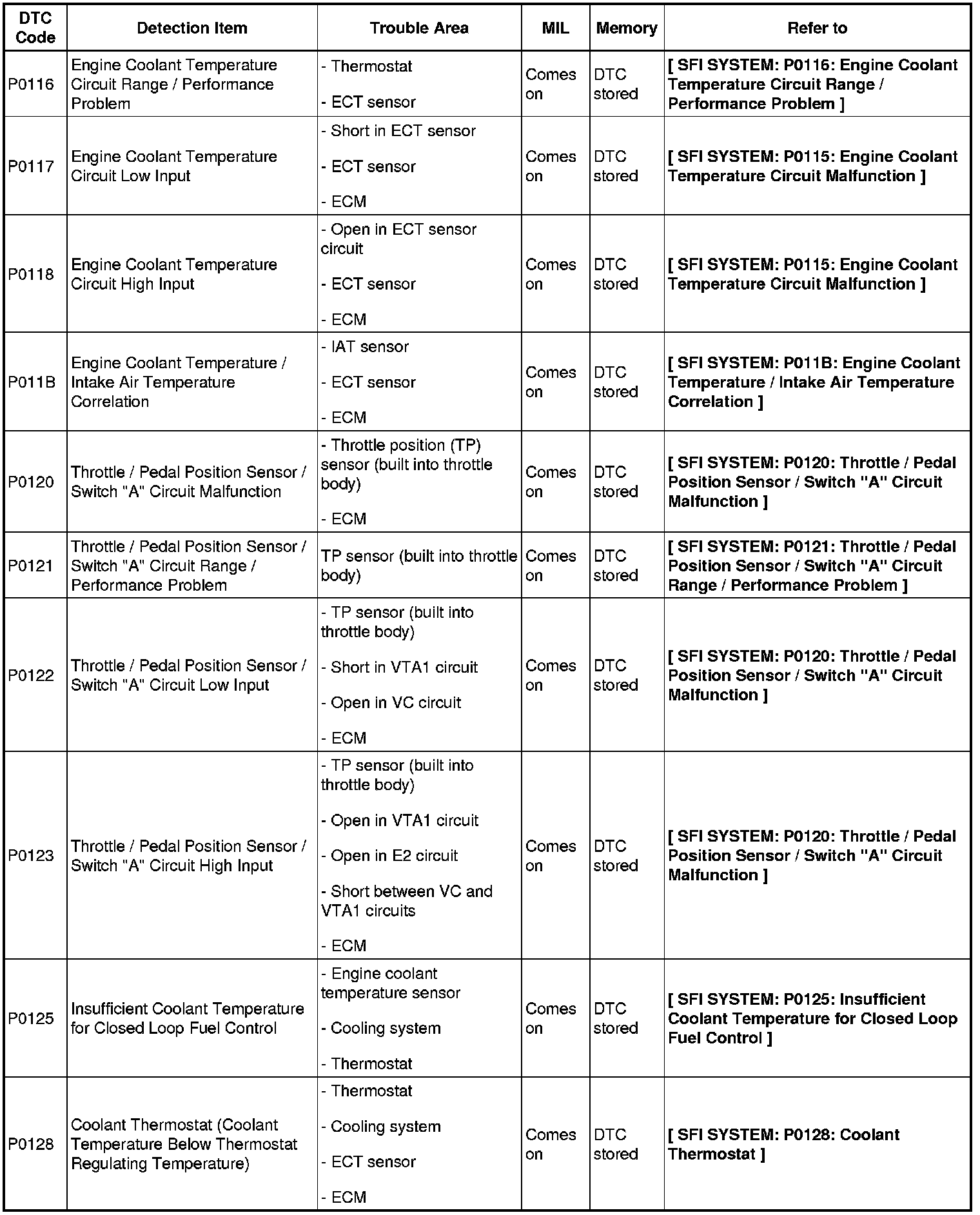

P0116 - P0128:

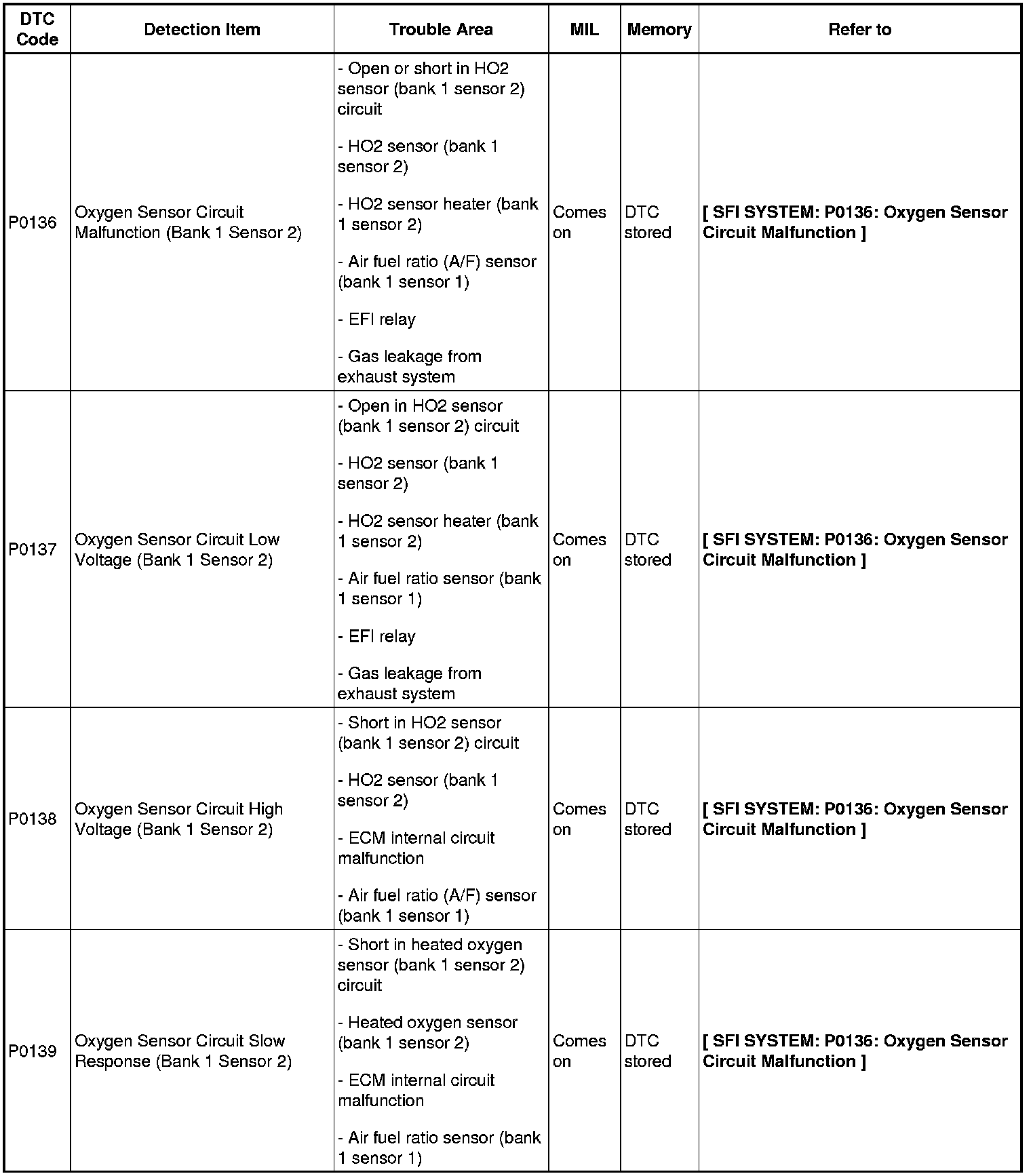

P0136 - P0139:

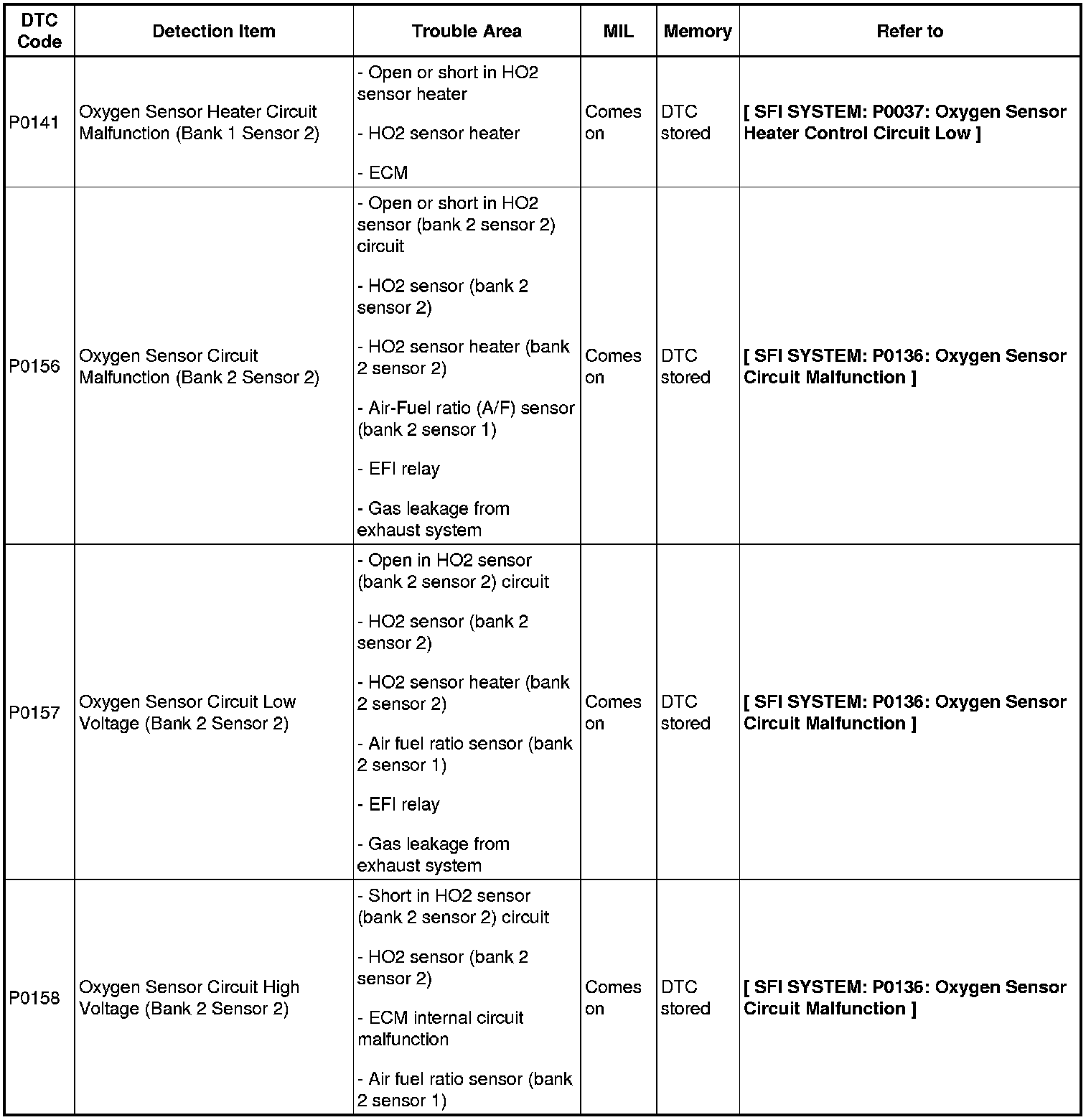

P0141 - P0158:

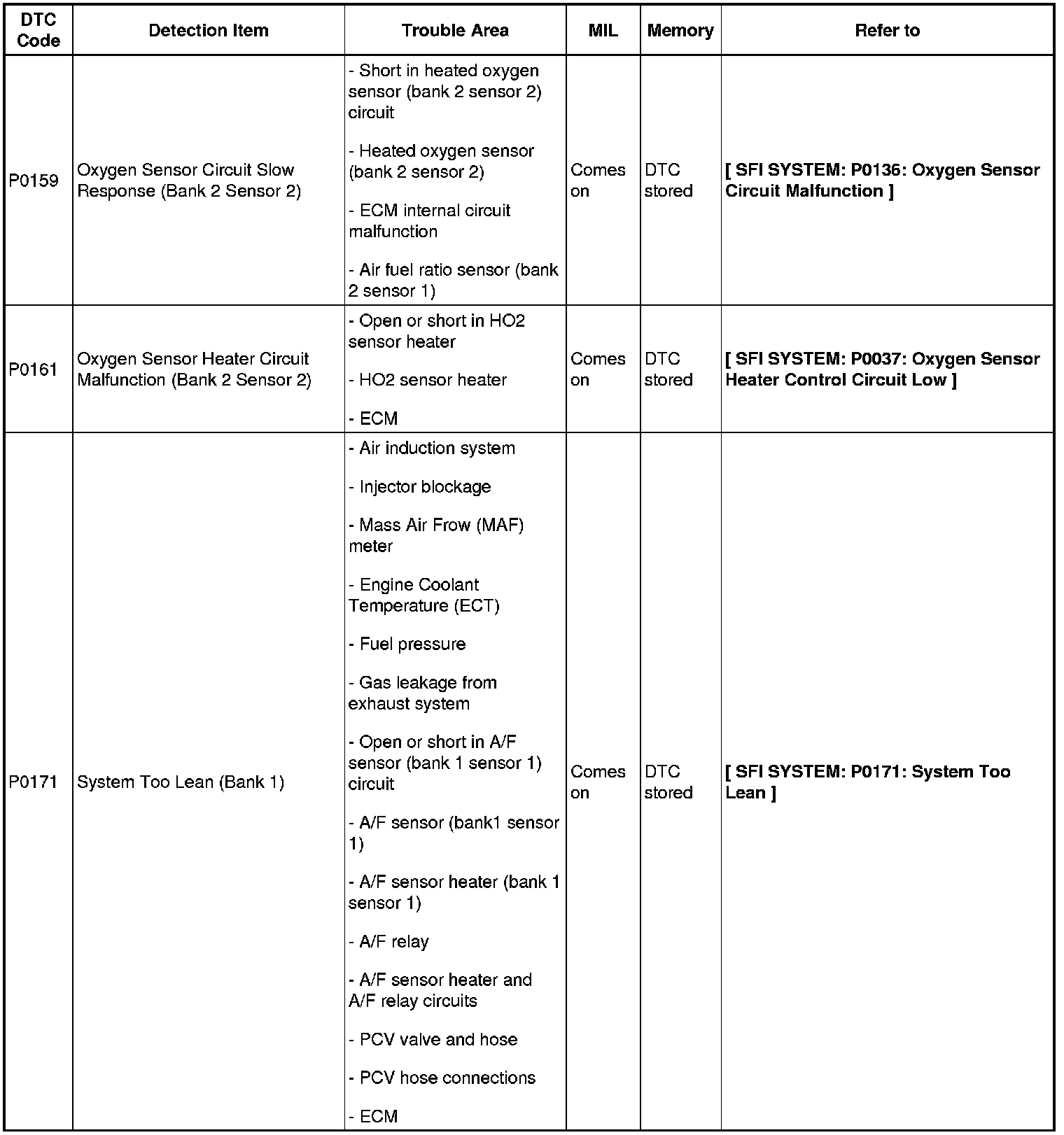

P0159 - P0171:

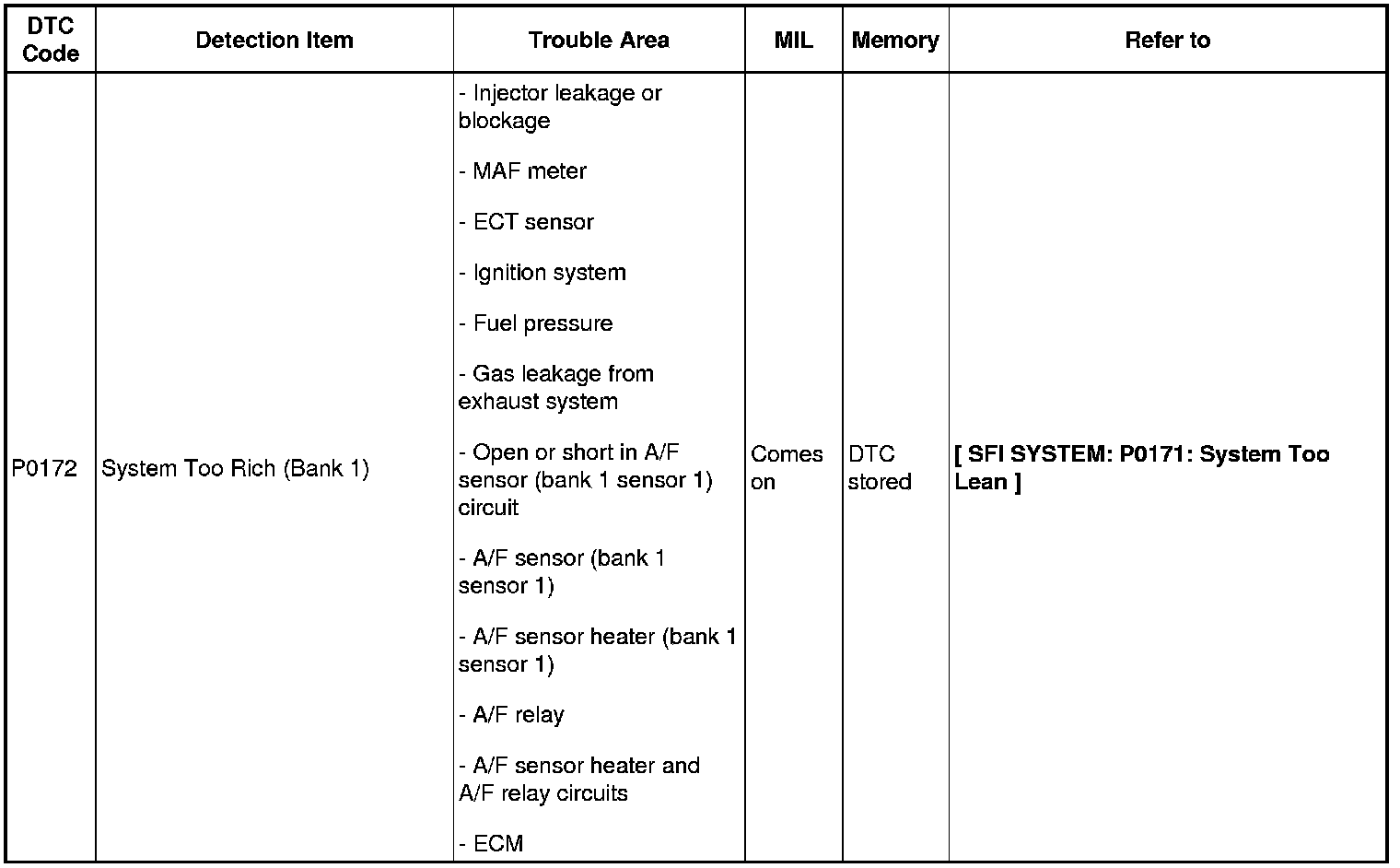

P0172:

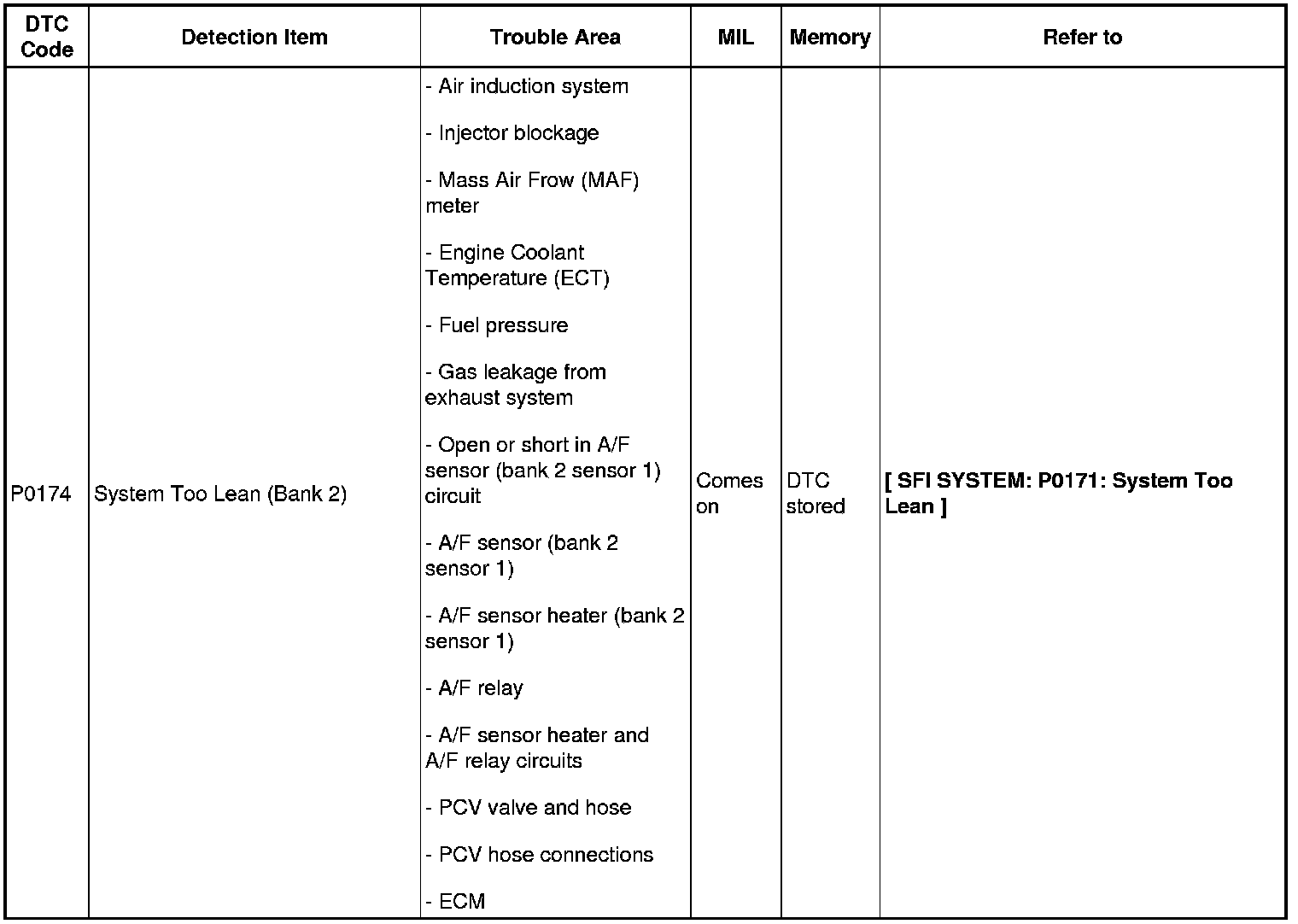

P0174:

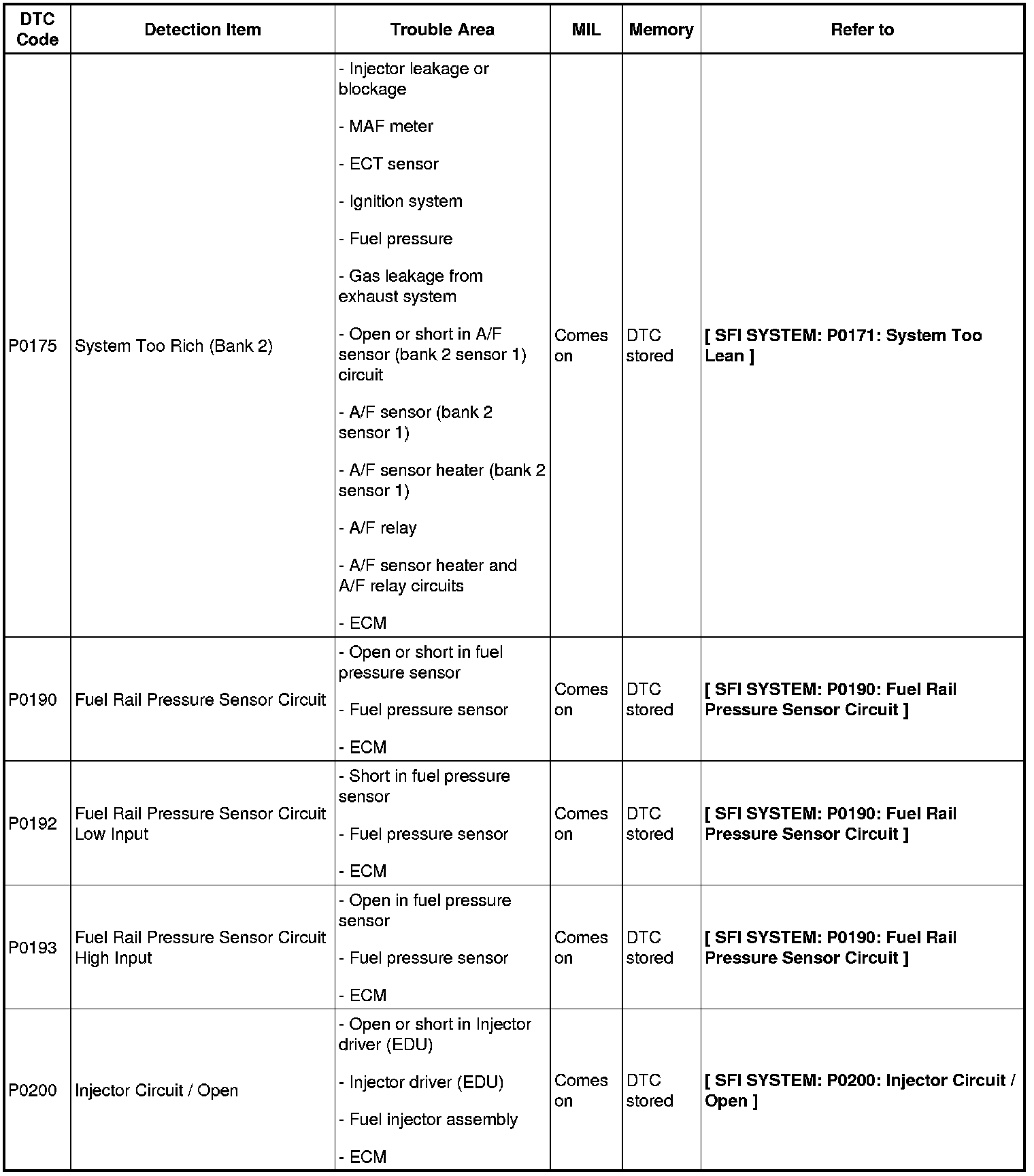

P0175 - P0200:

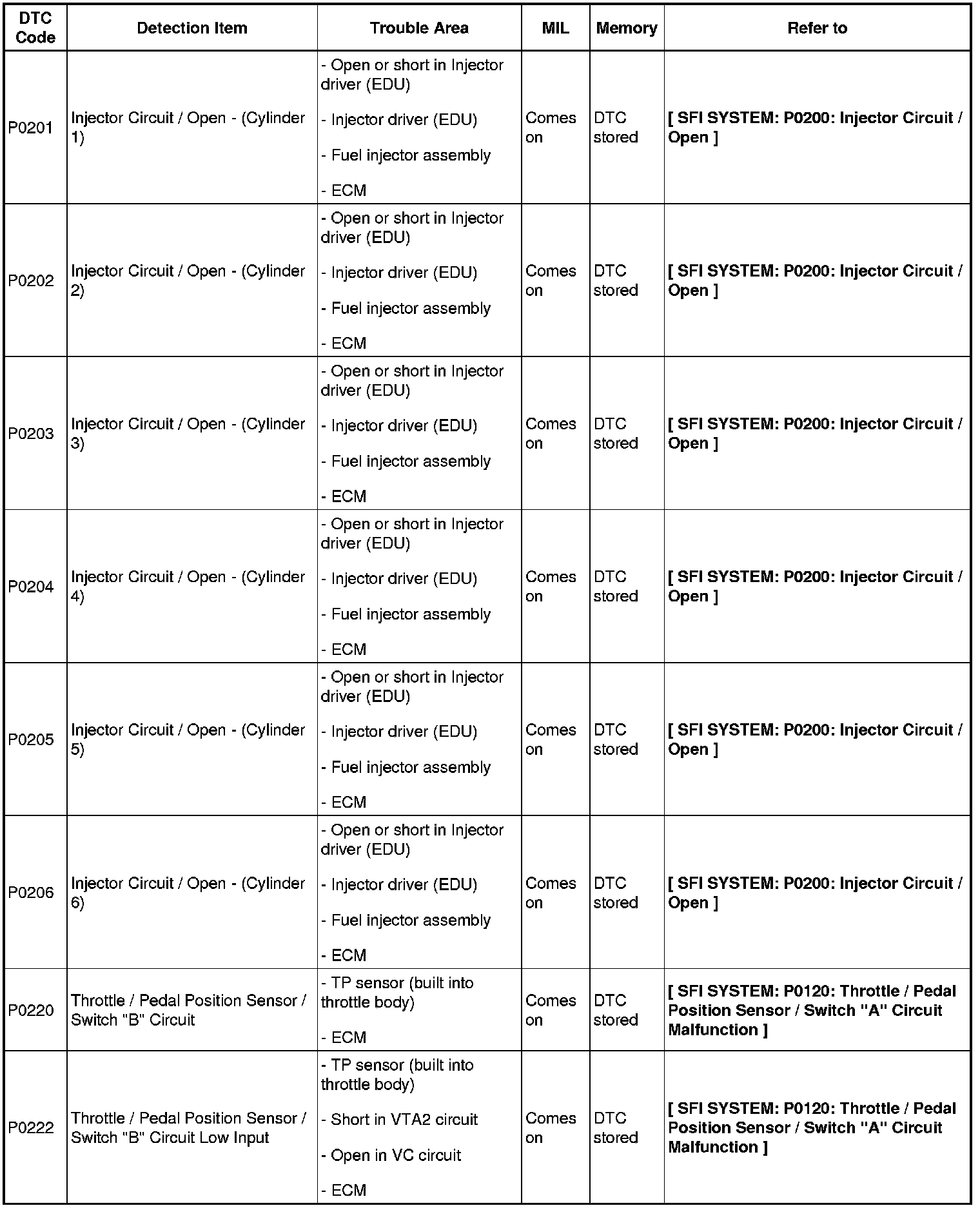

P0201 - P0222:

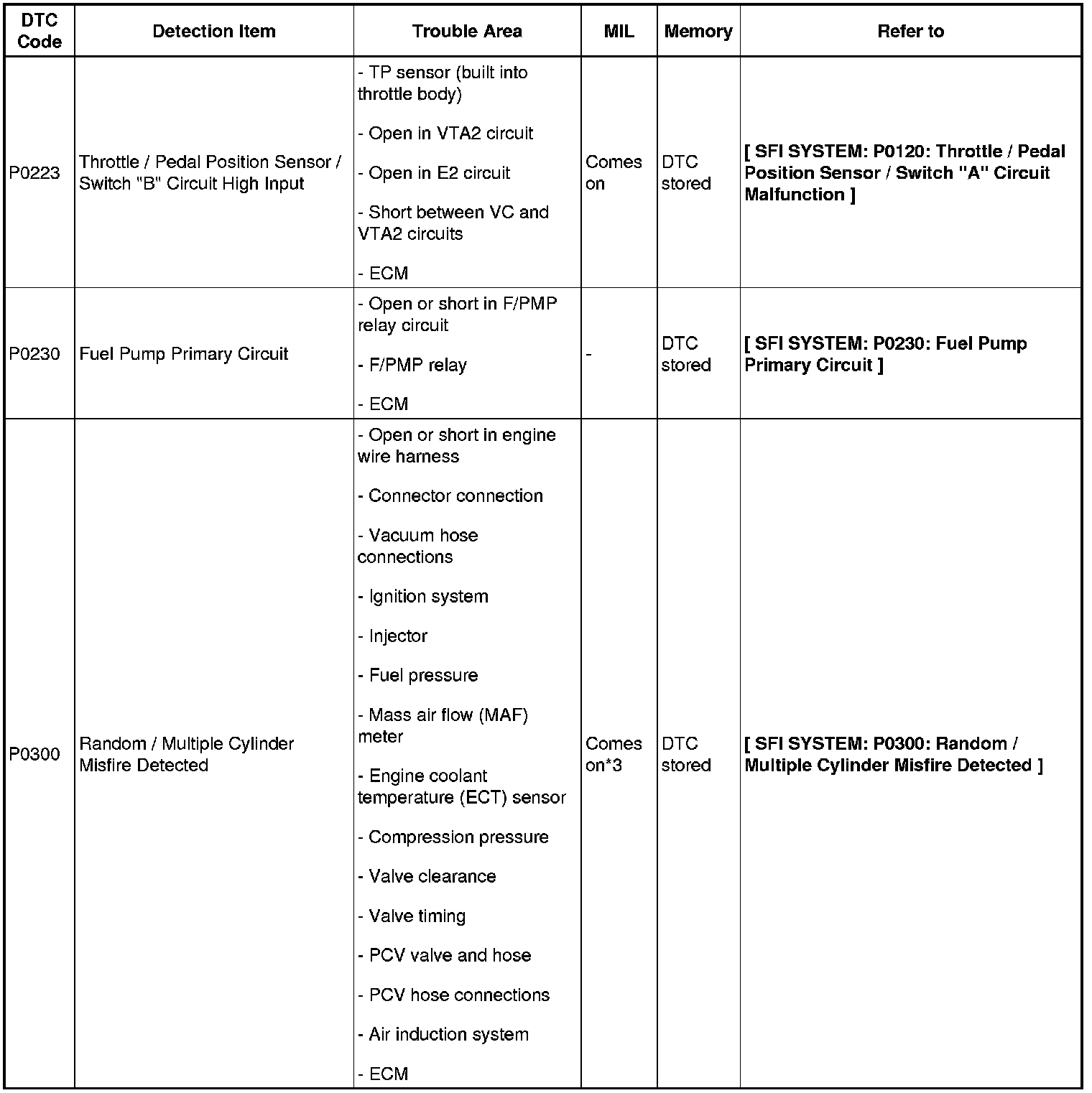

P0223 - P0300:

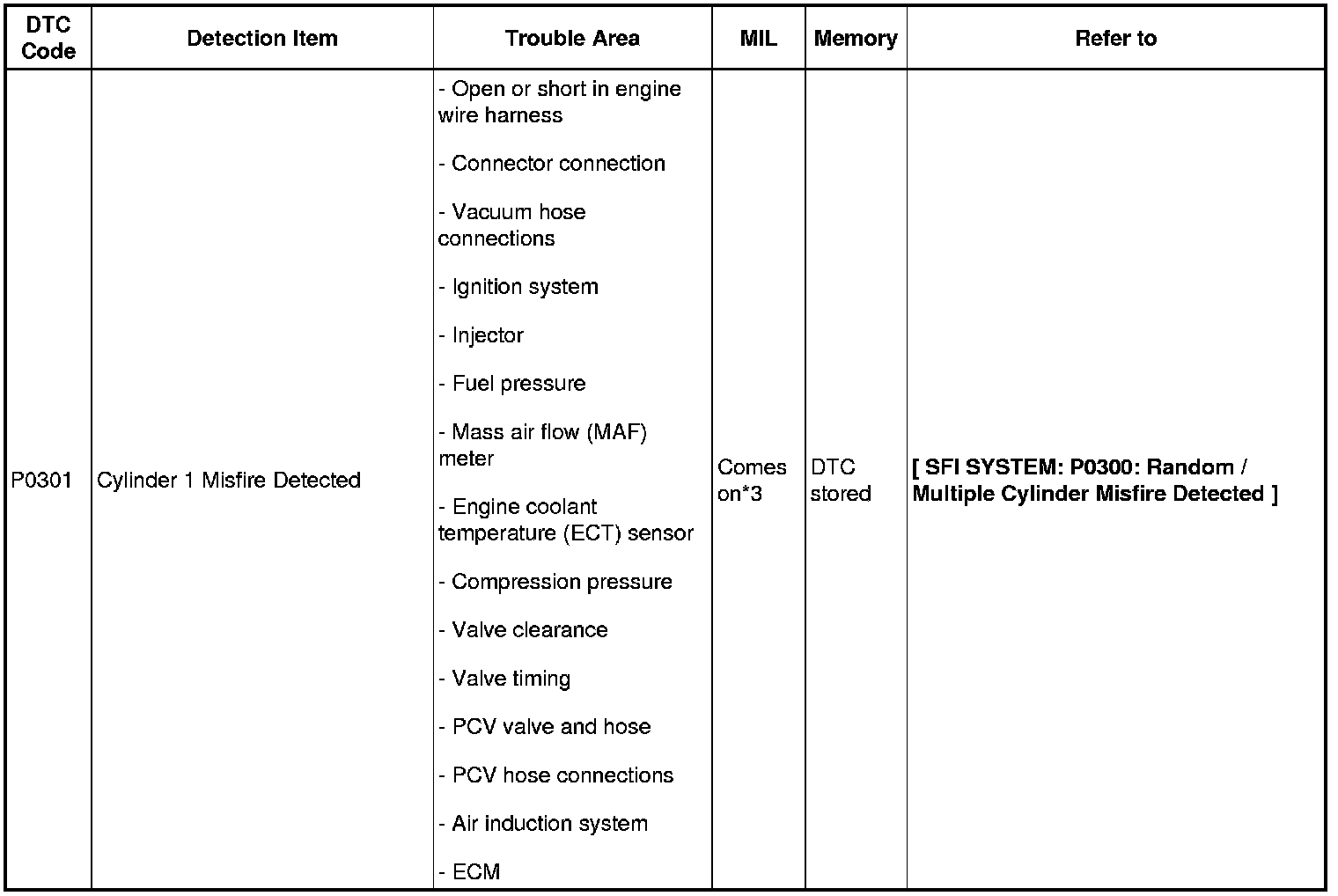

P0301:

P0302:

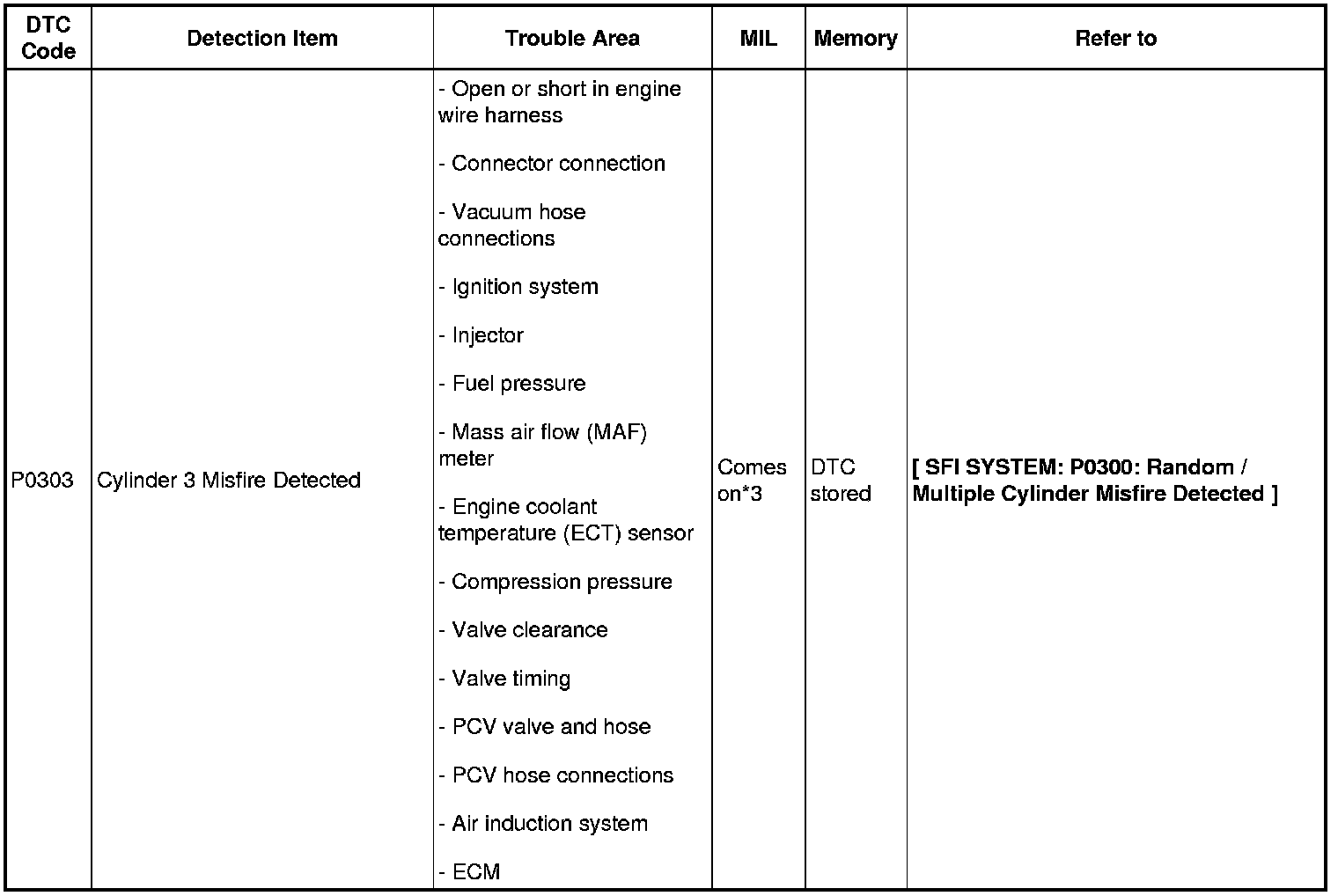

P0303:

P0304:

P0305:

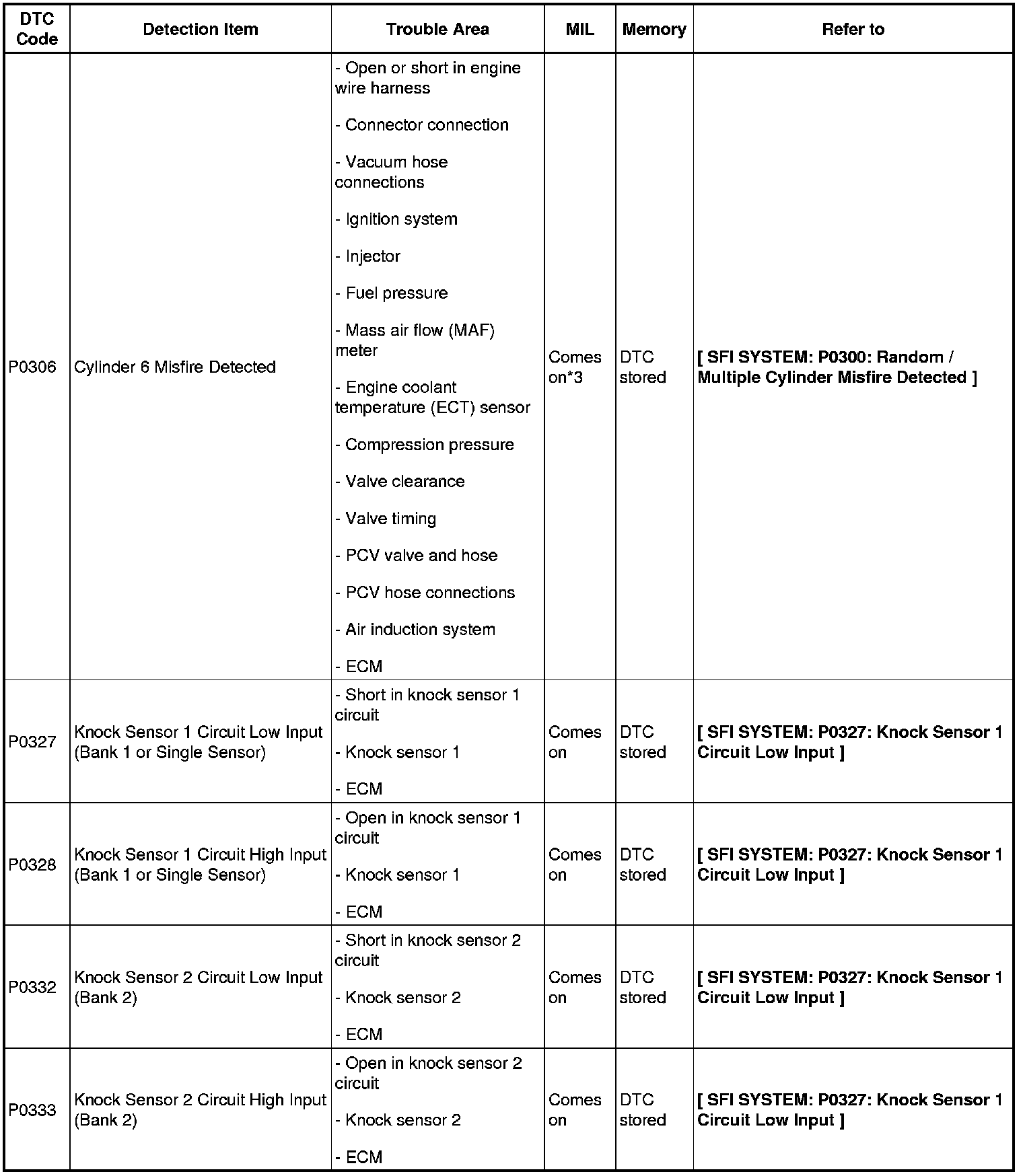

P0306 - P0333:

P0335 - P0343:

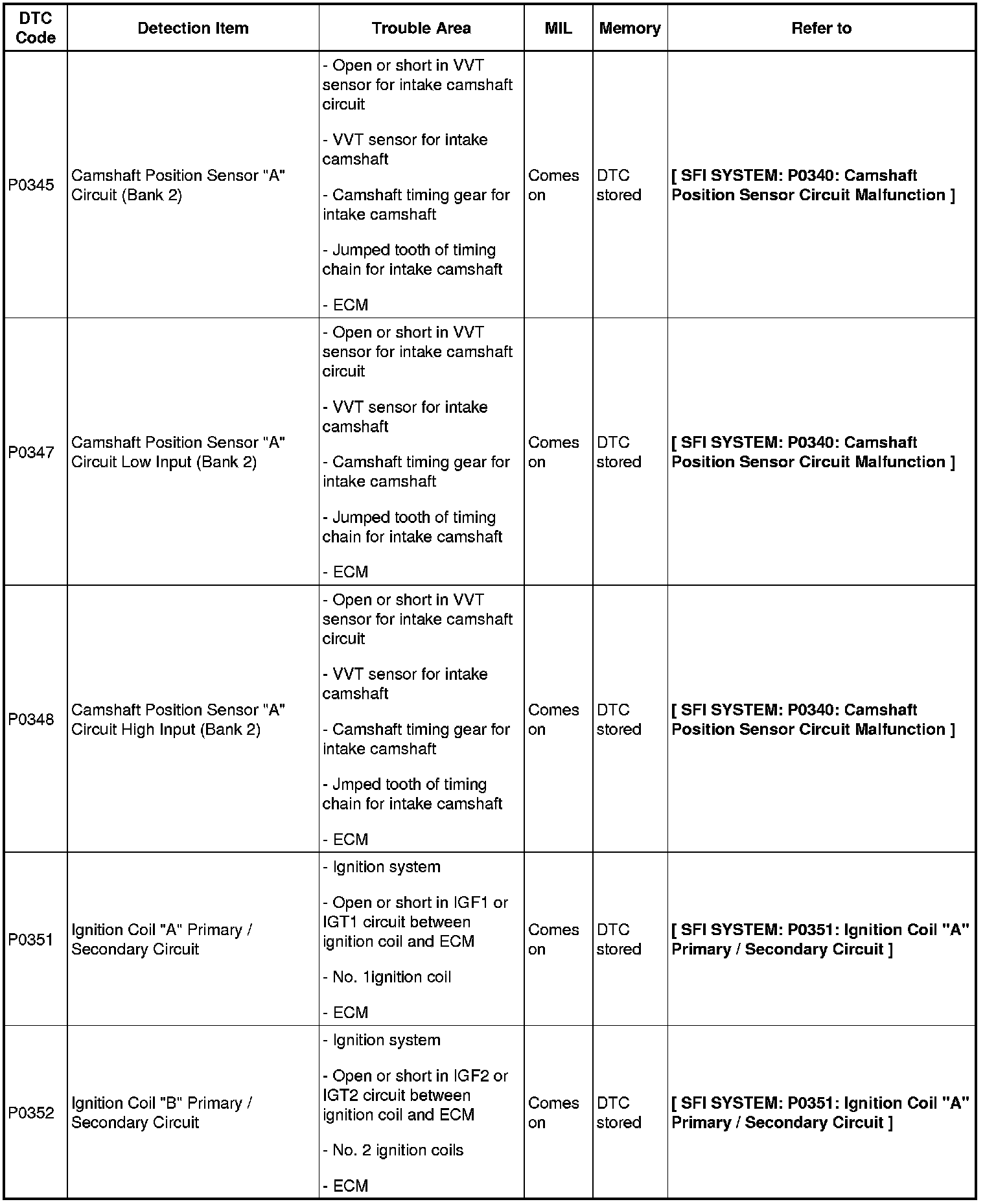

P0345 - P0352:

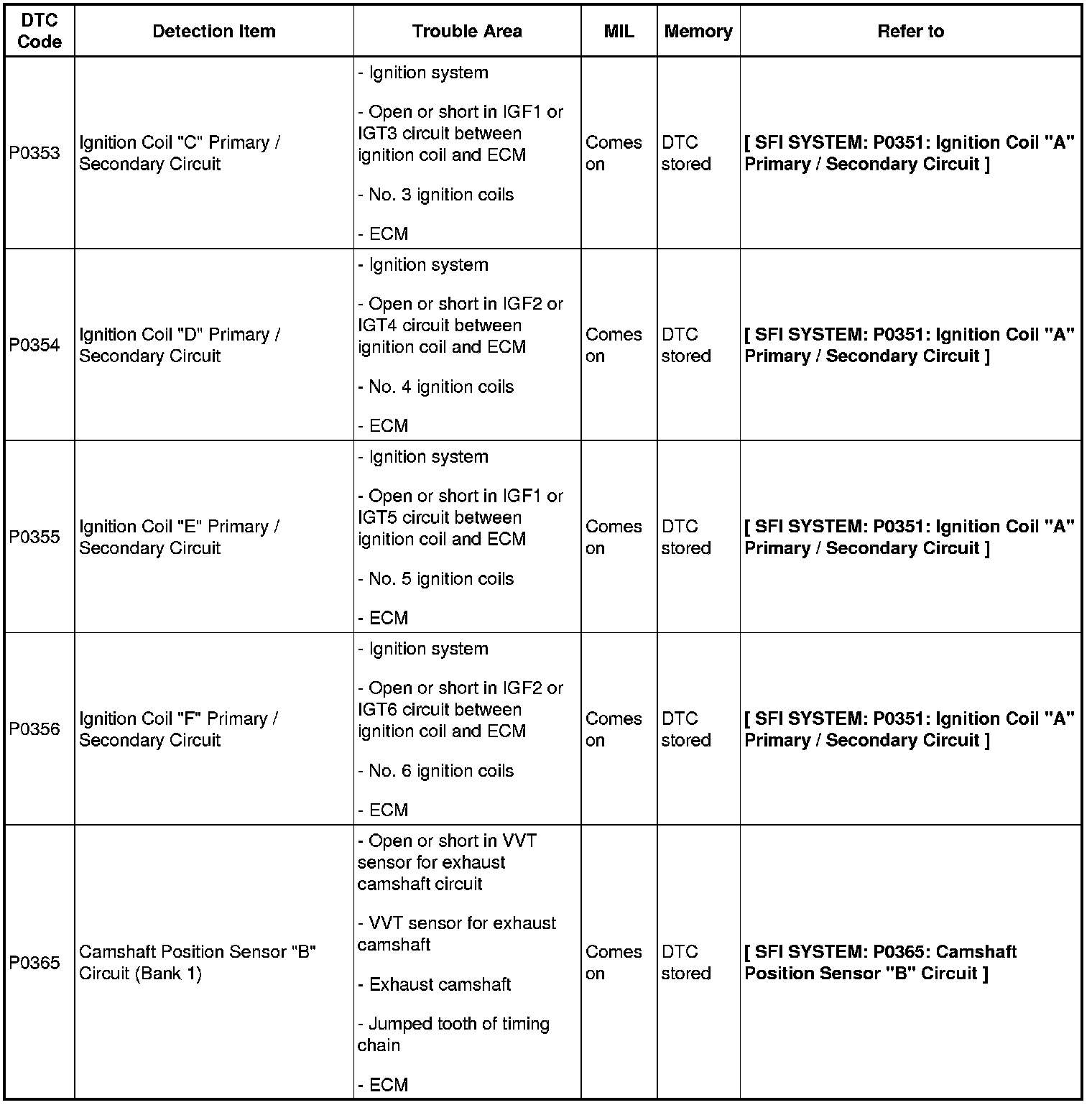

P0353 - P0365:

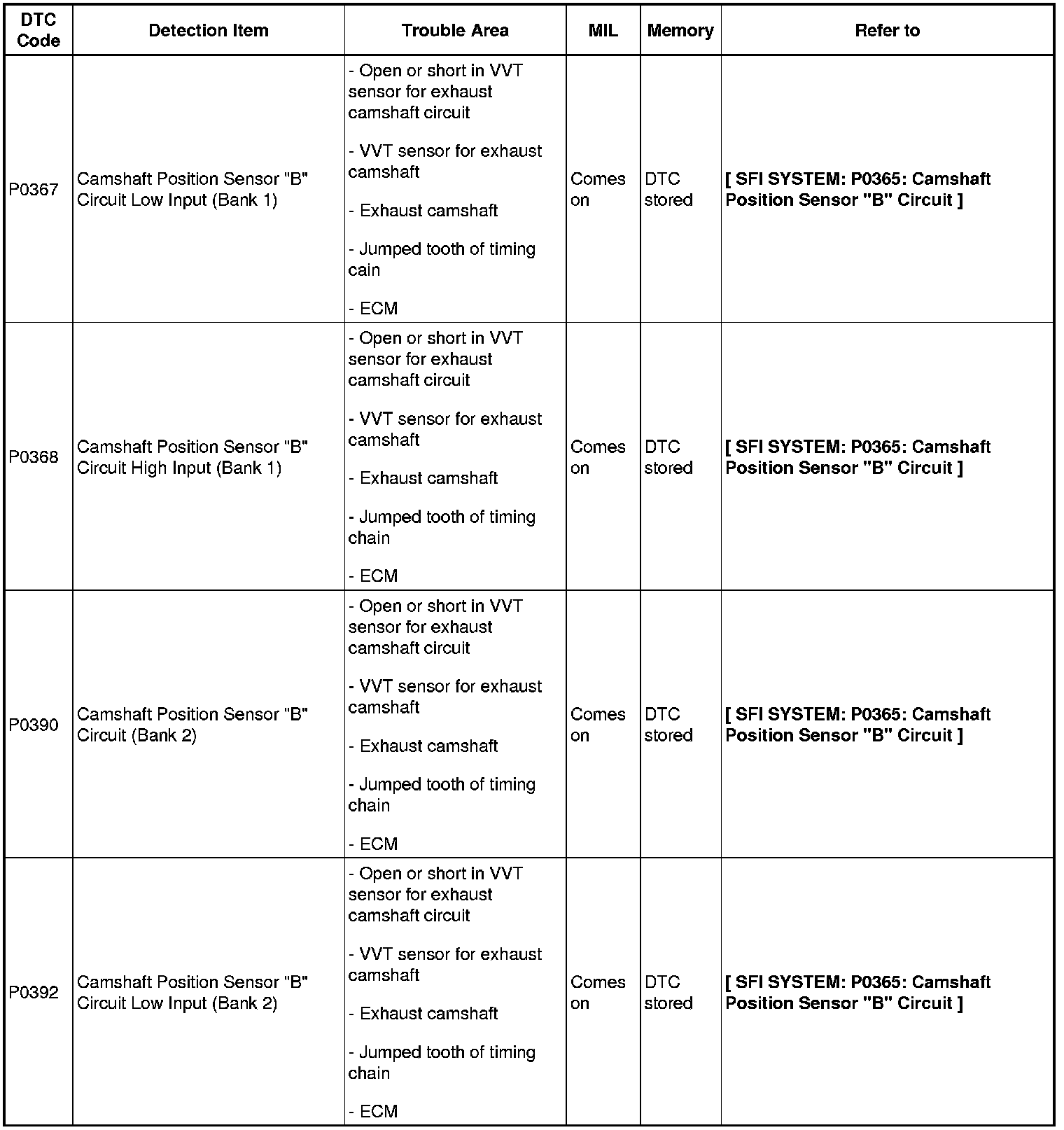

P0367 - P0392:

P0393 - P043F:

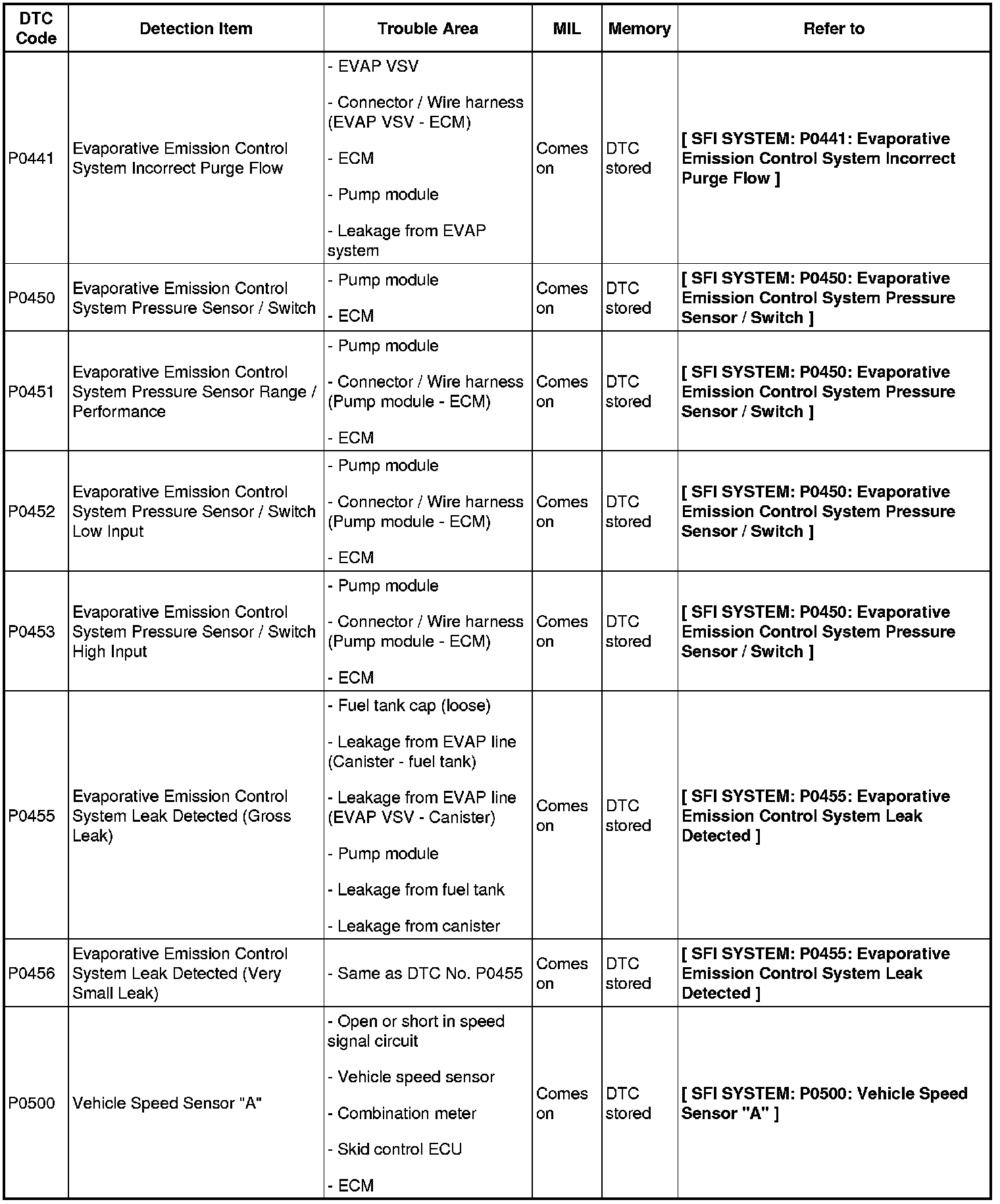

P0441 - P0500:

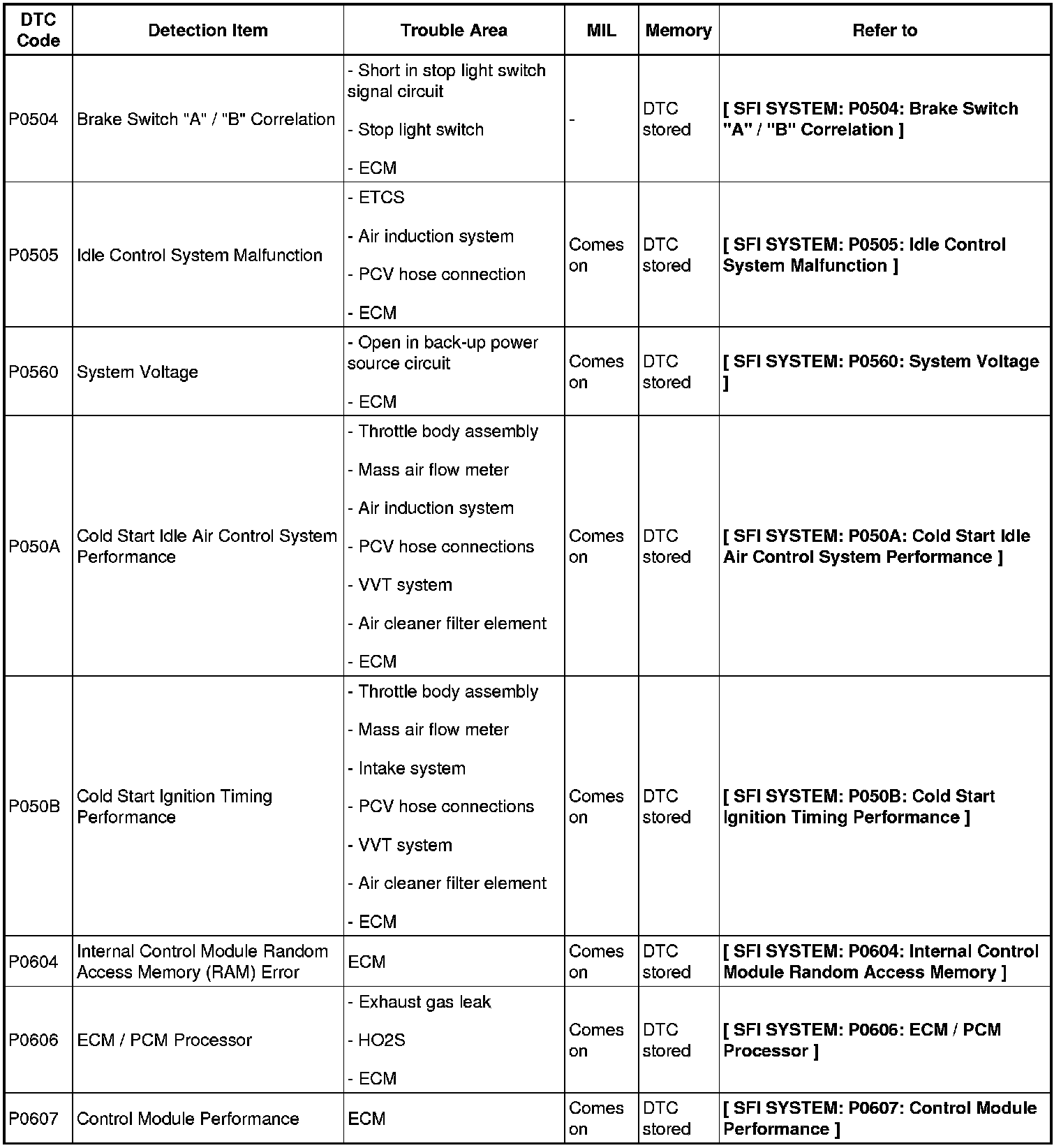

P0504 - P0607:

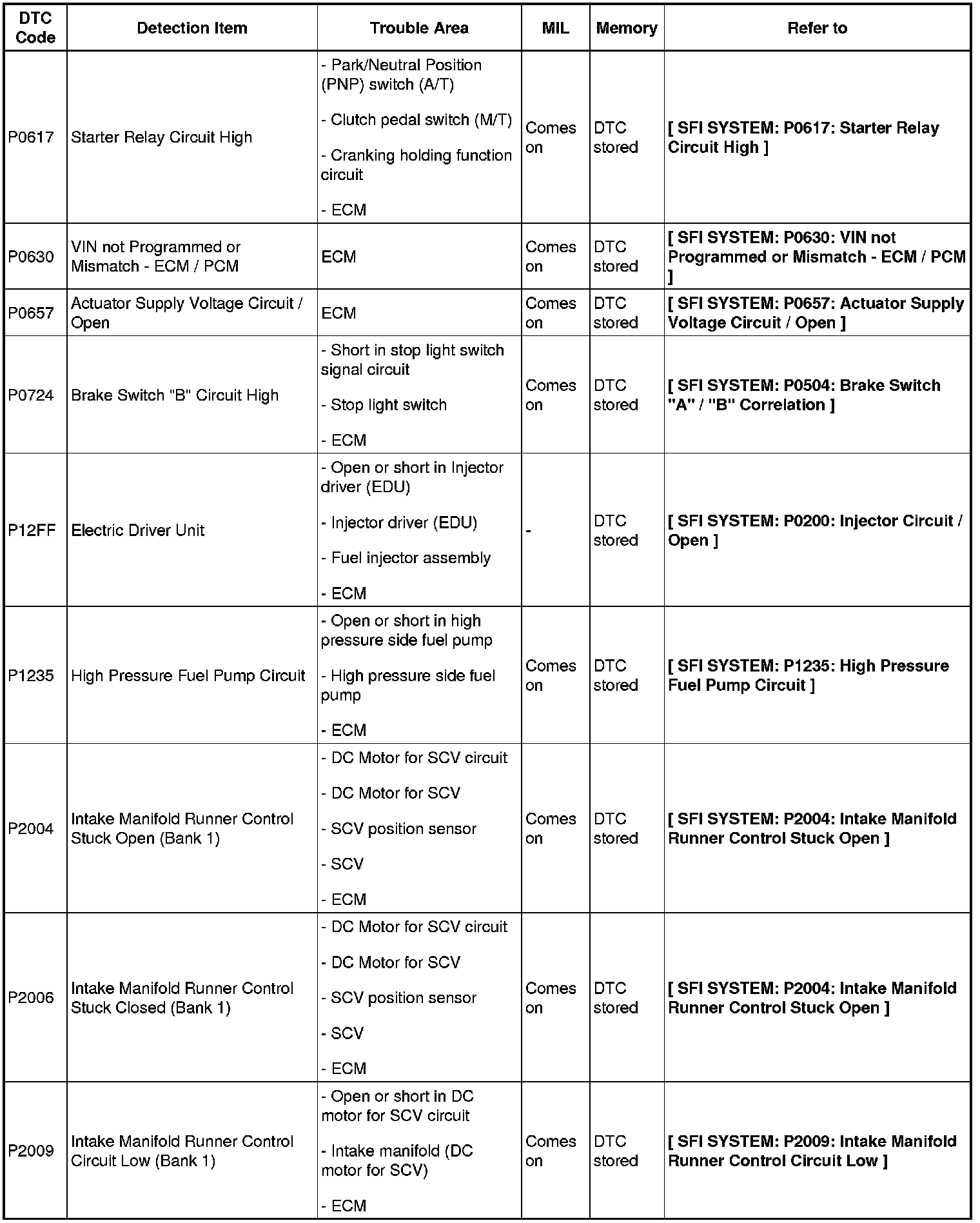

P0617 - P2009:

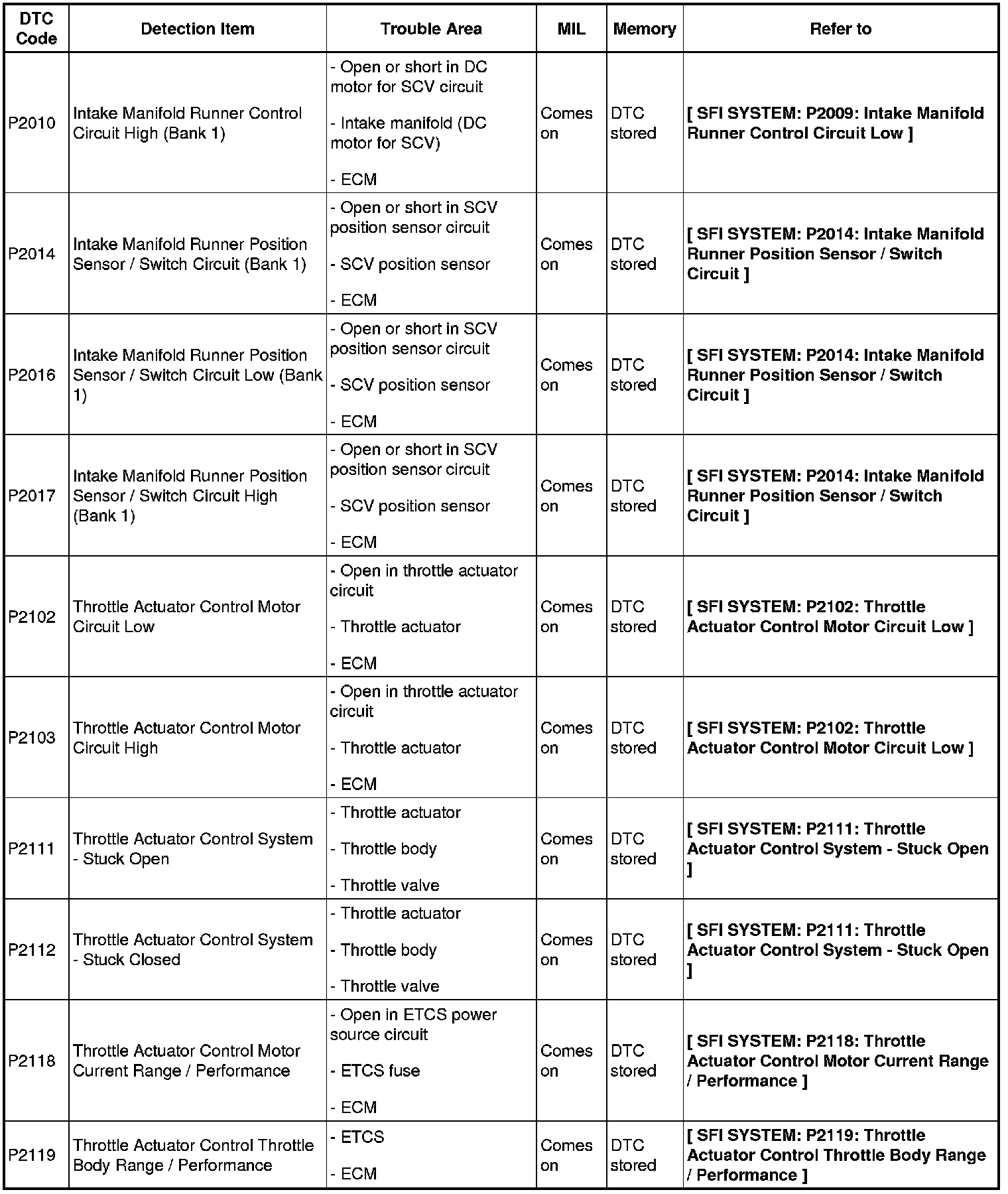

P2010 - P2119:

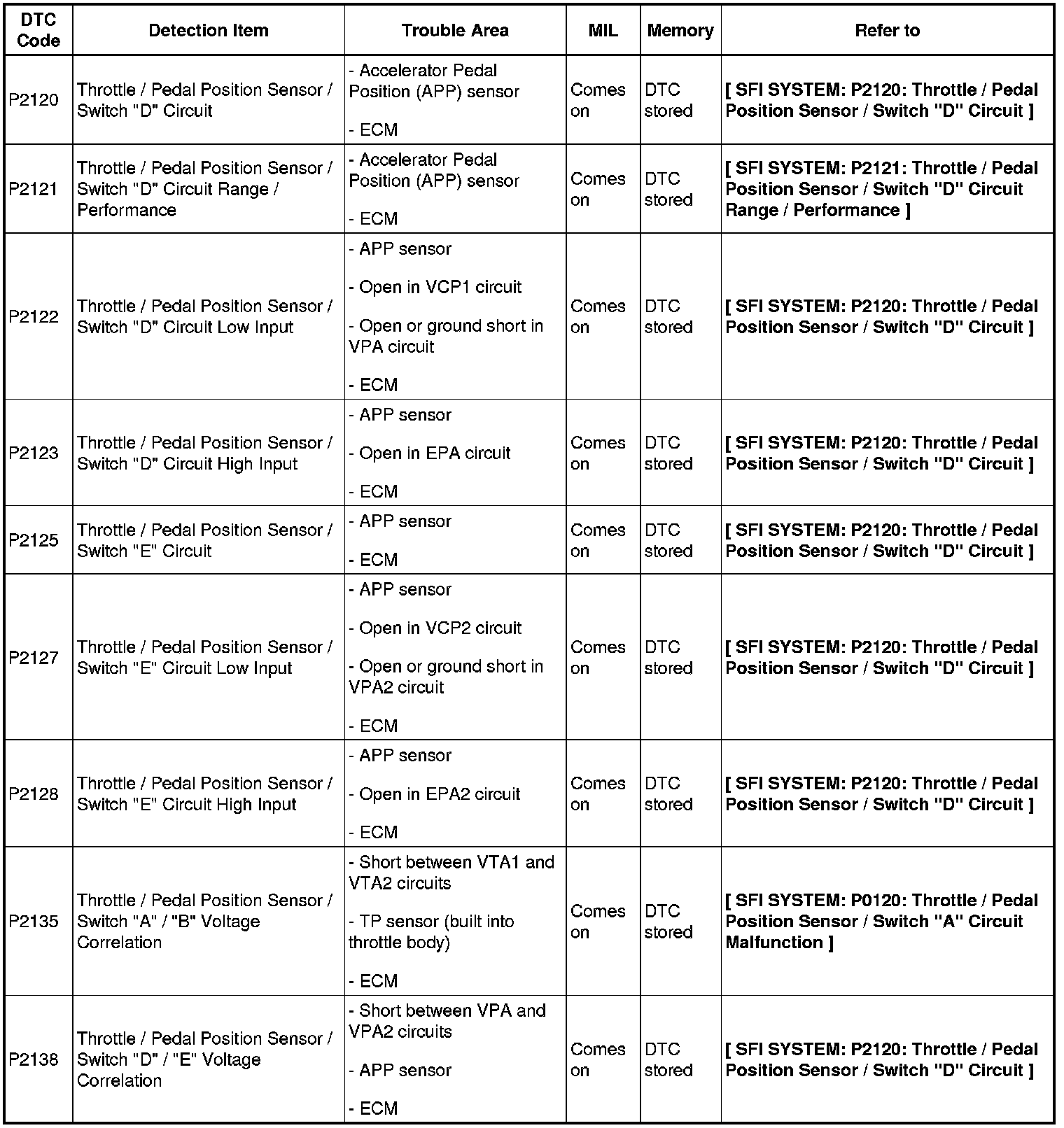

P2120 - P2138:

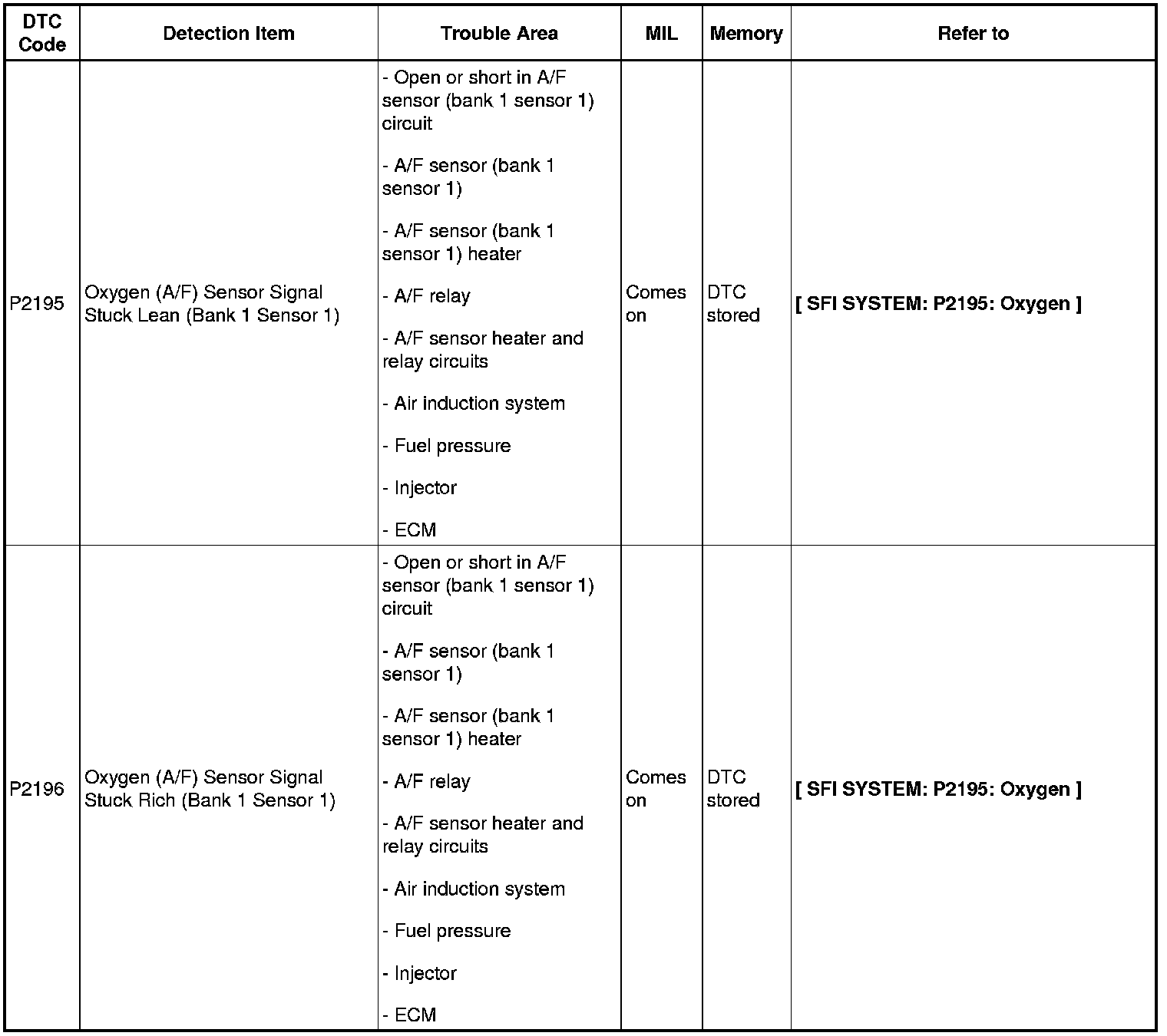

P2195 - P2196:

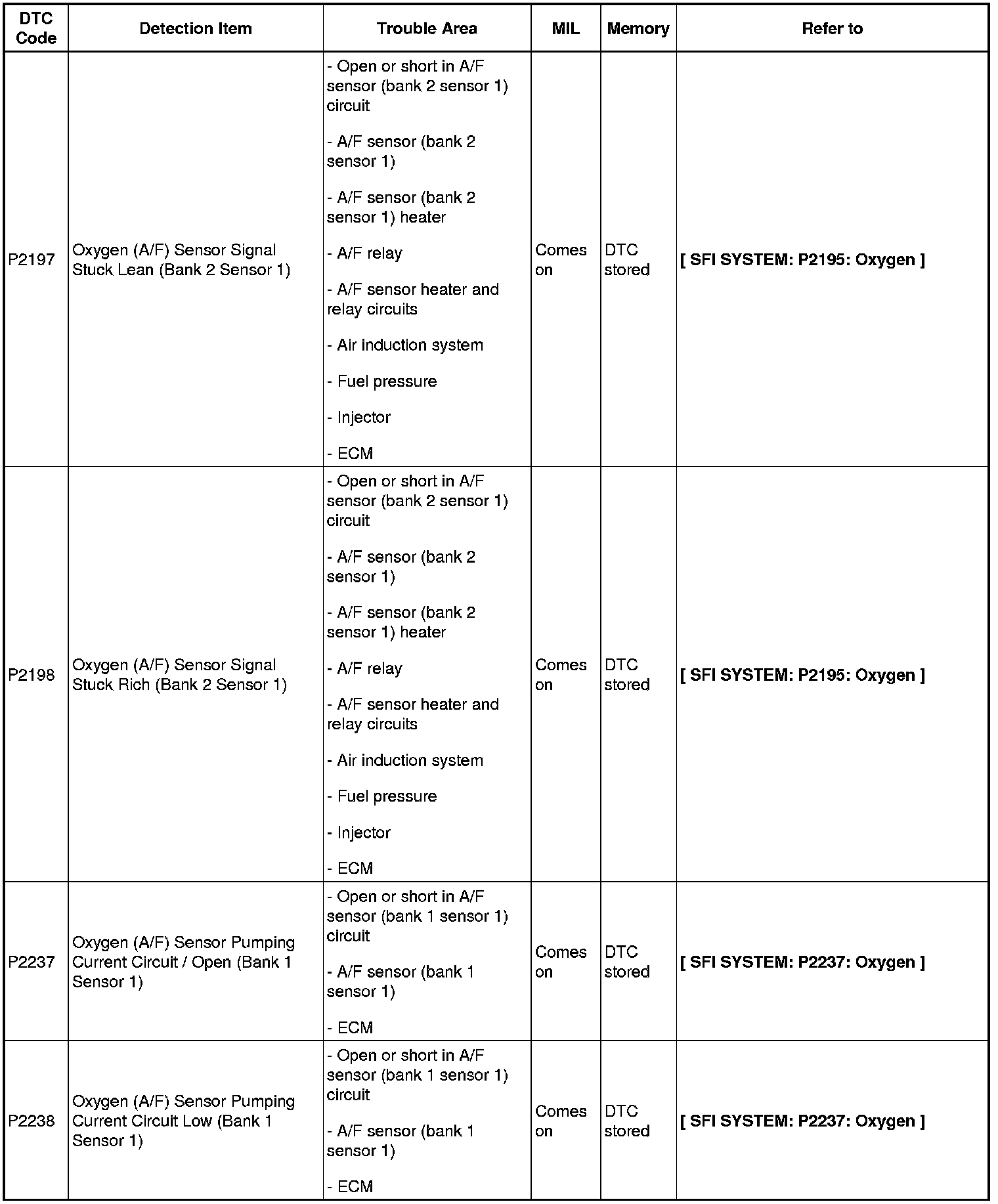

P2197 - P2238:

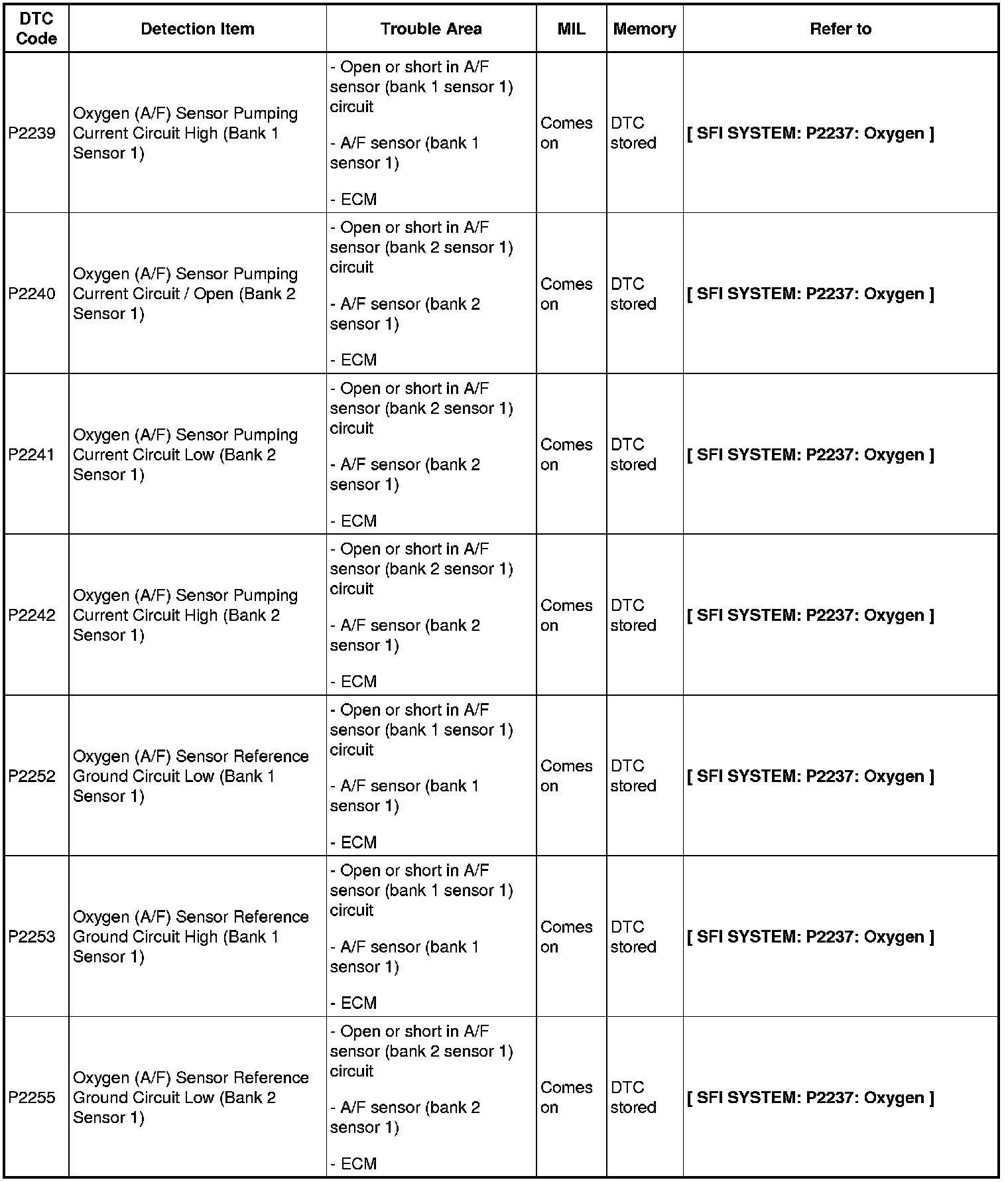

P2239 - P2255:

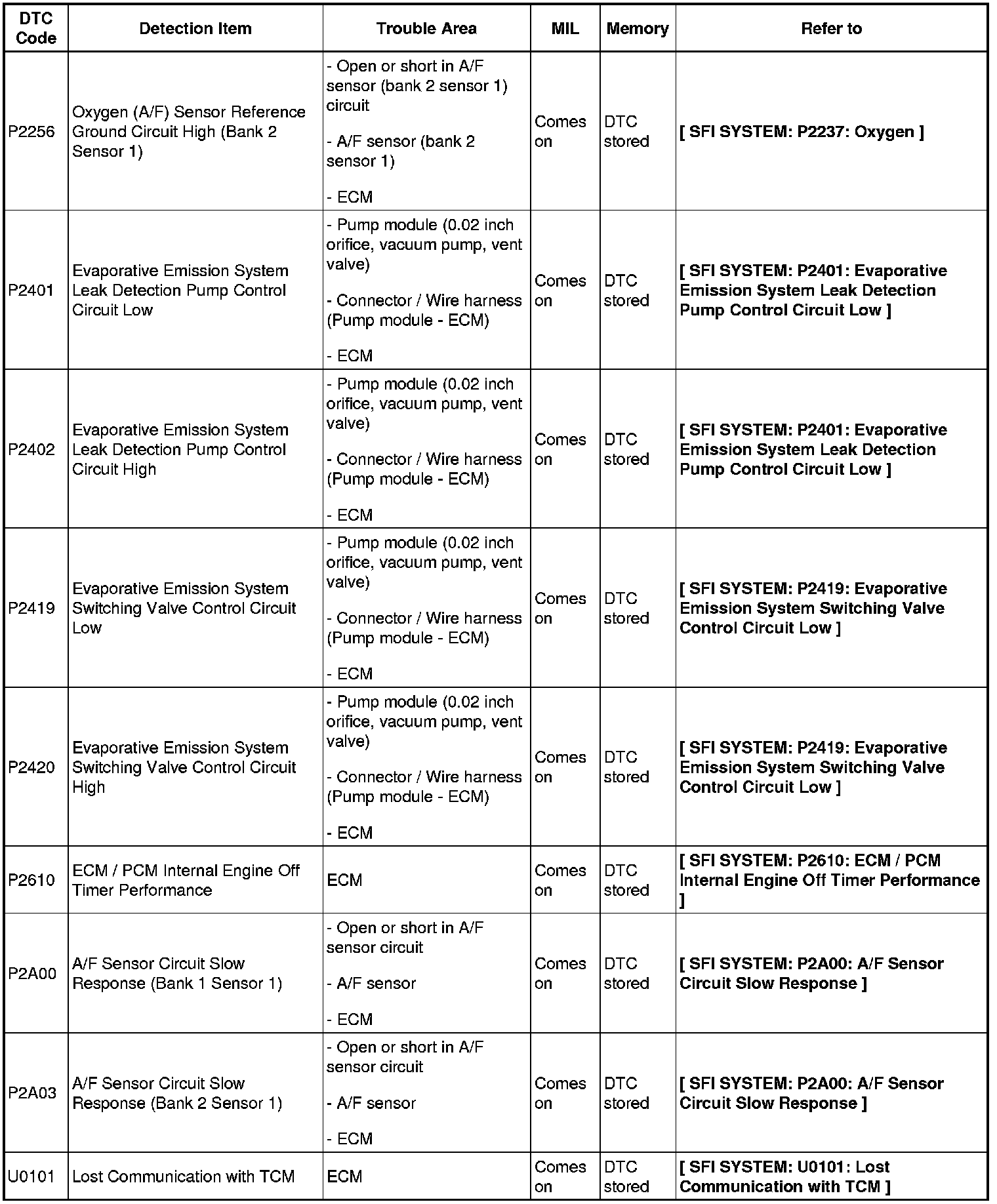

P2256 - U0101:
