A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Engine Immobiliser System
Engine Immobiliser System
ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM:
DIAGNOSTIC TROUBLE CODE CHART

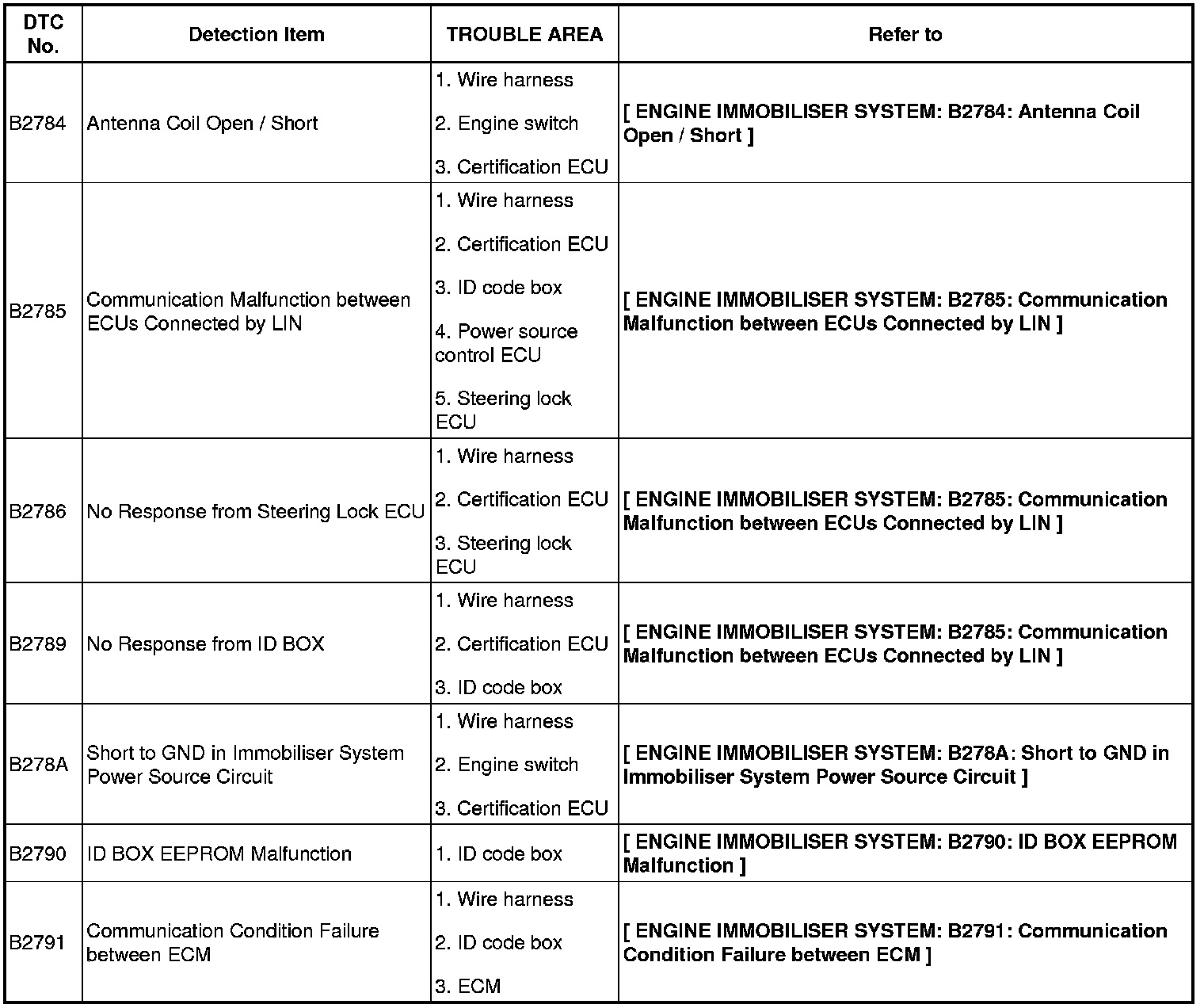

CERTIFICATION ECU DIAGNOSTIC TROUBLE CODE CHART
B2784 - B2791:
ECM DIAGNOSTIC TROUBLE CODE CHART
B2799:
