Electronic Power Steering System








POWER STEERING: ELECTRONIC POWER STEERING SYSTEM:

DIAGNOSTIC TROUBLE CODE CHART

ELECTRONIC POWER STEERING SYSTEM DIAGNOSTIC TROUBLE CODE CHART

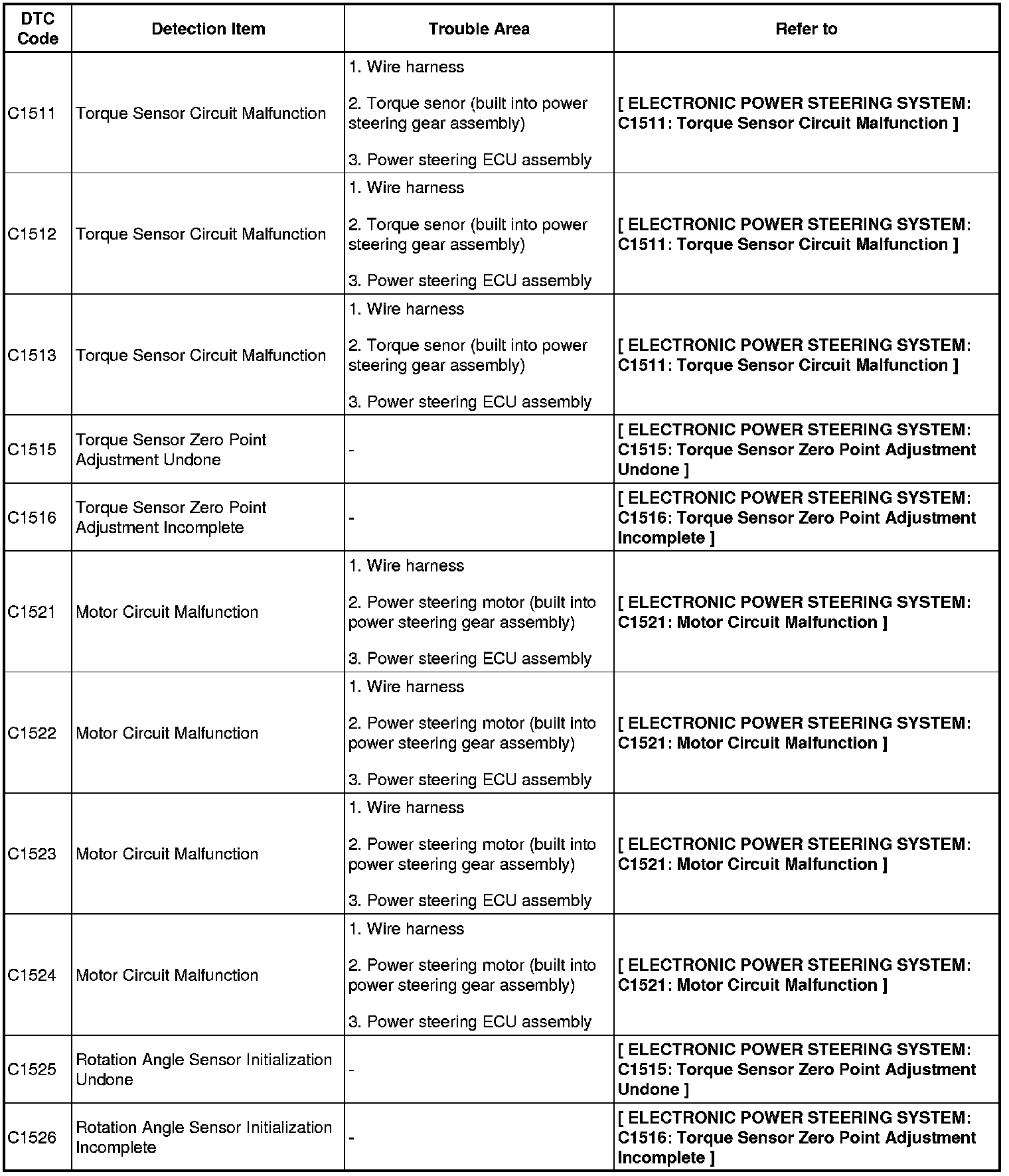

C1511 - C1526:

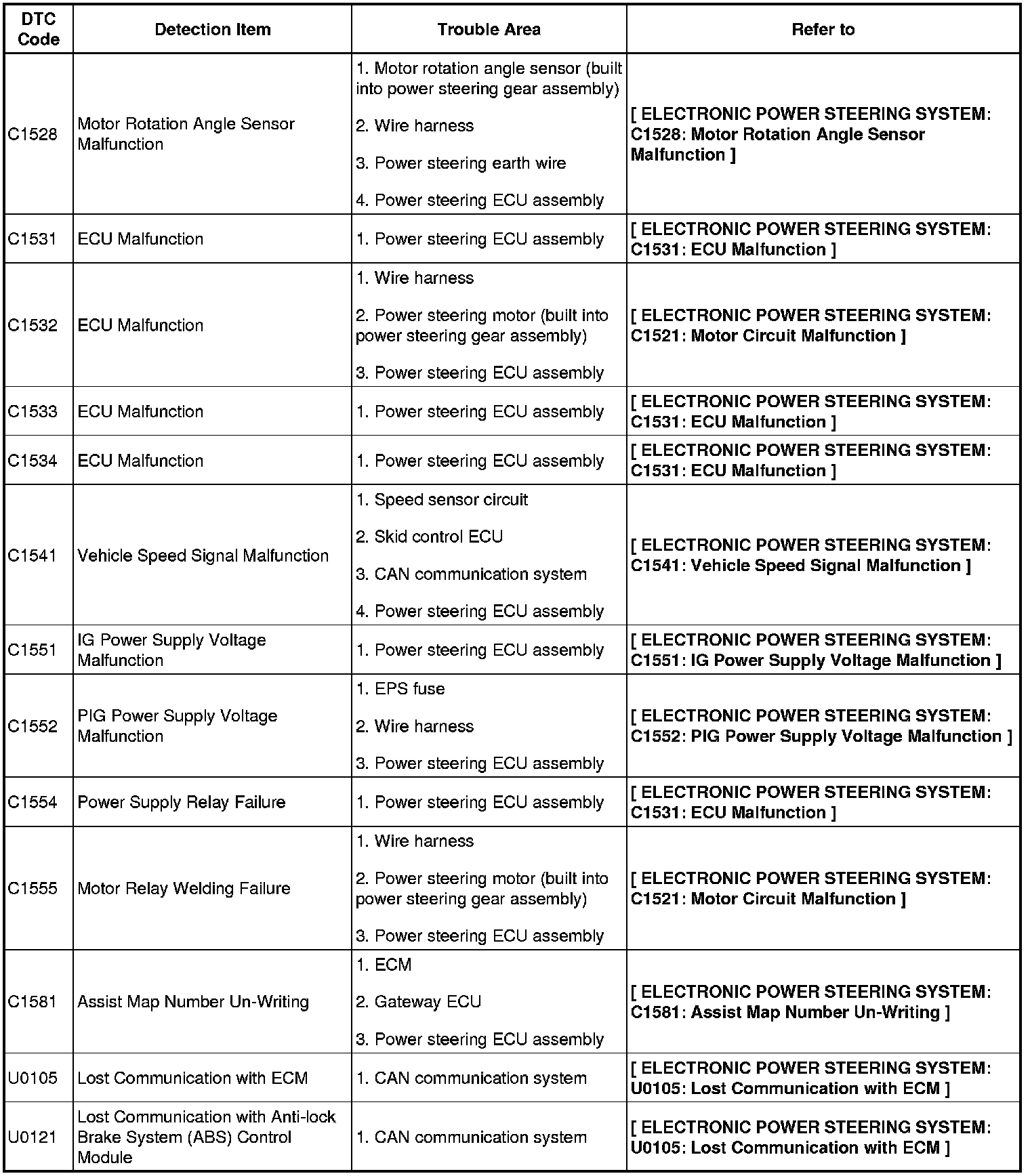

C1528 - U0121:
