Dynamic Radar Cruise Control System








CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM:

DIAGNOSTIC TROUBLE CODE CHART

If a trouble code is displayed during the DTC check, check the trouble areas listed for that code in the table below and proceed to the appropriate Diagnostic Trouble Code Test.

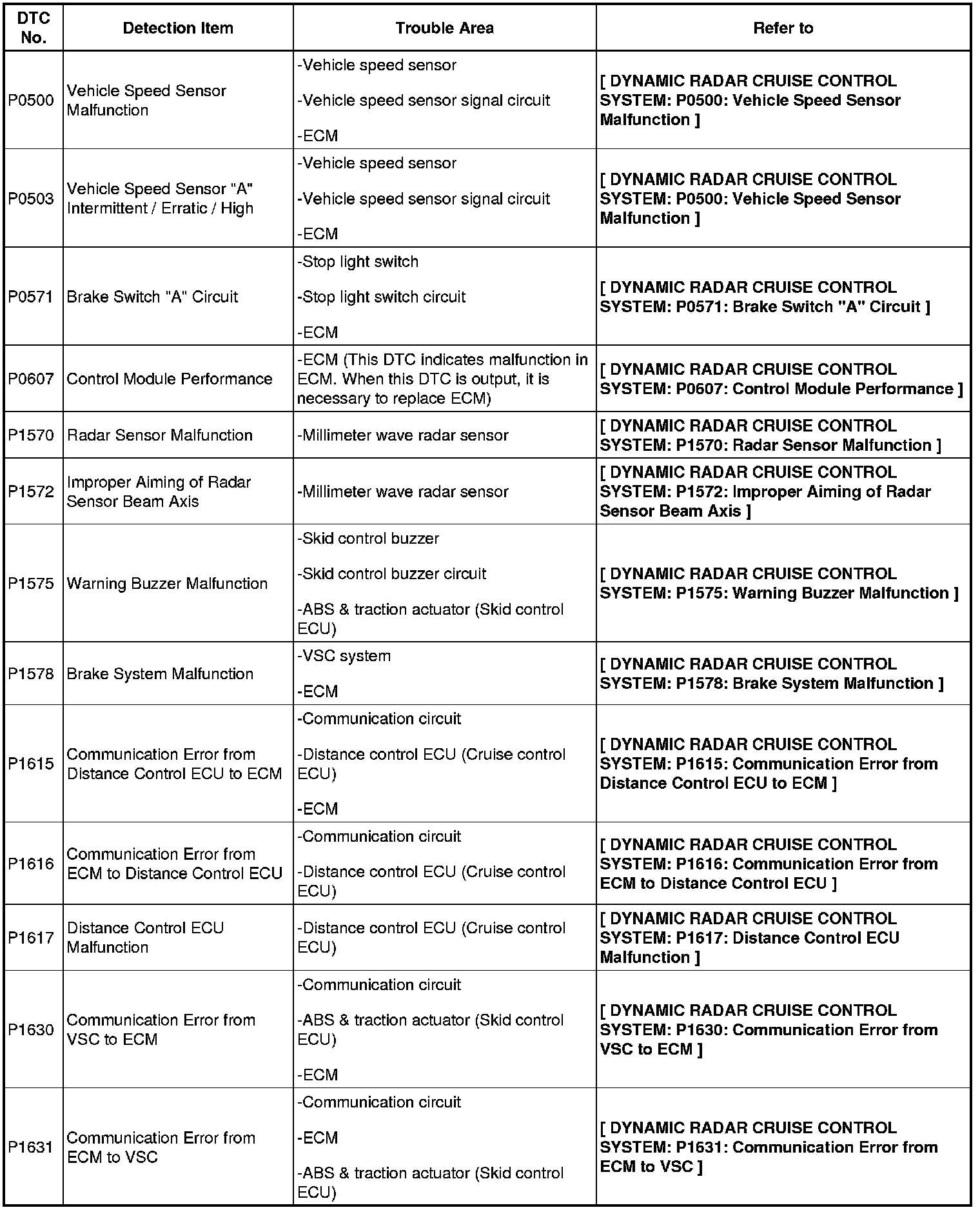

P0500 - P1631:

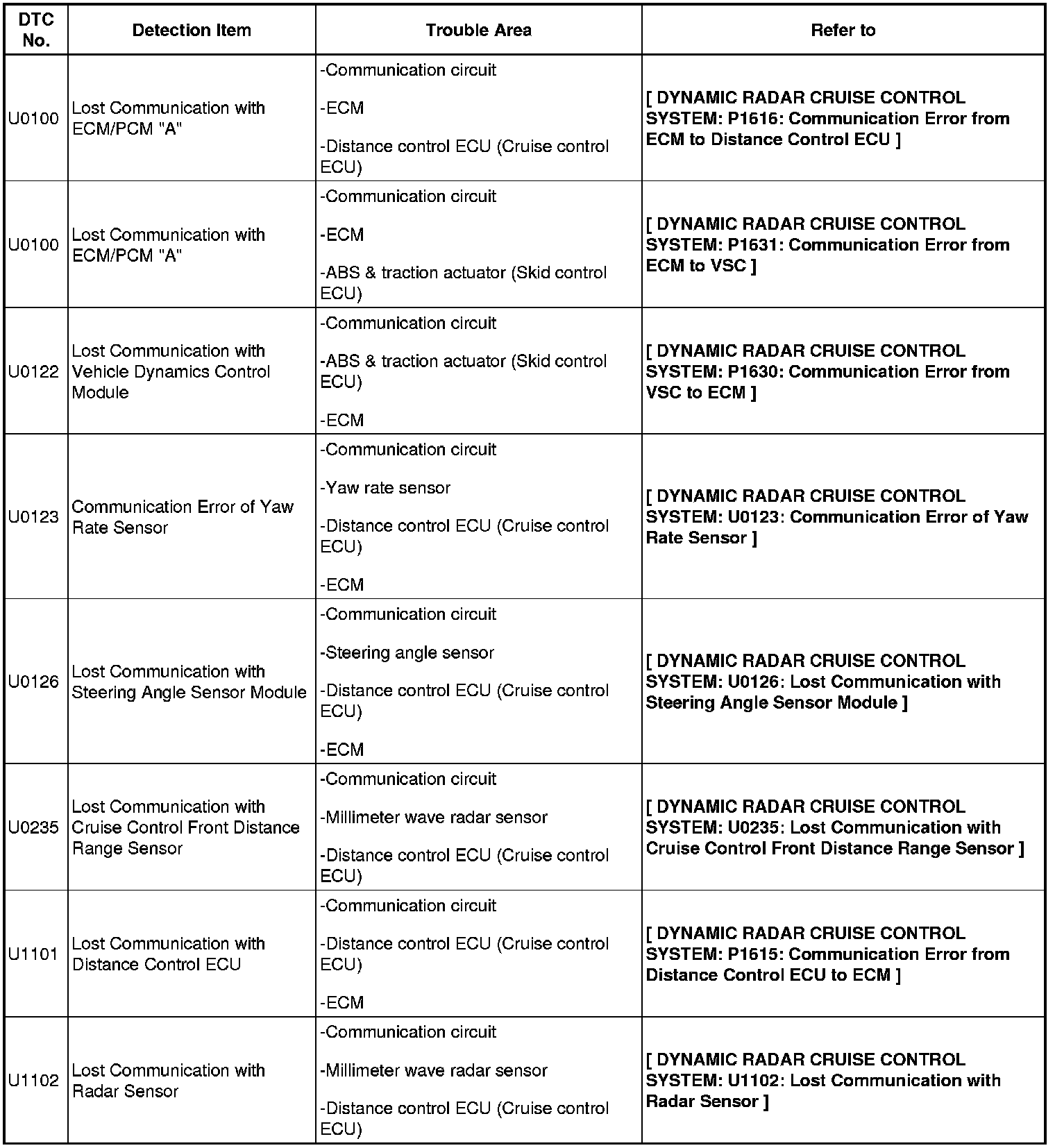

U0100 - U1102:
