Audio and Visual System








AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM:

DIAGNOSTIC TROUBLE CODE CHART

COMMUNICATION DIAGNOSIS:

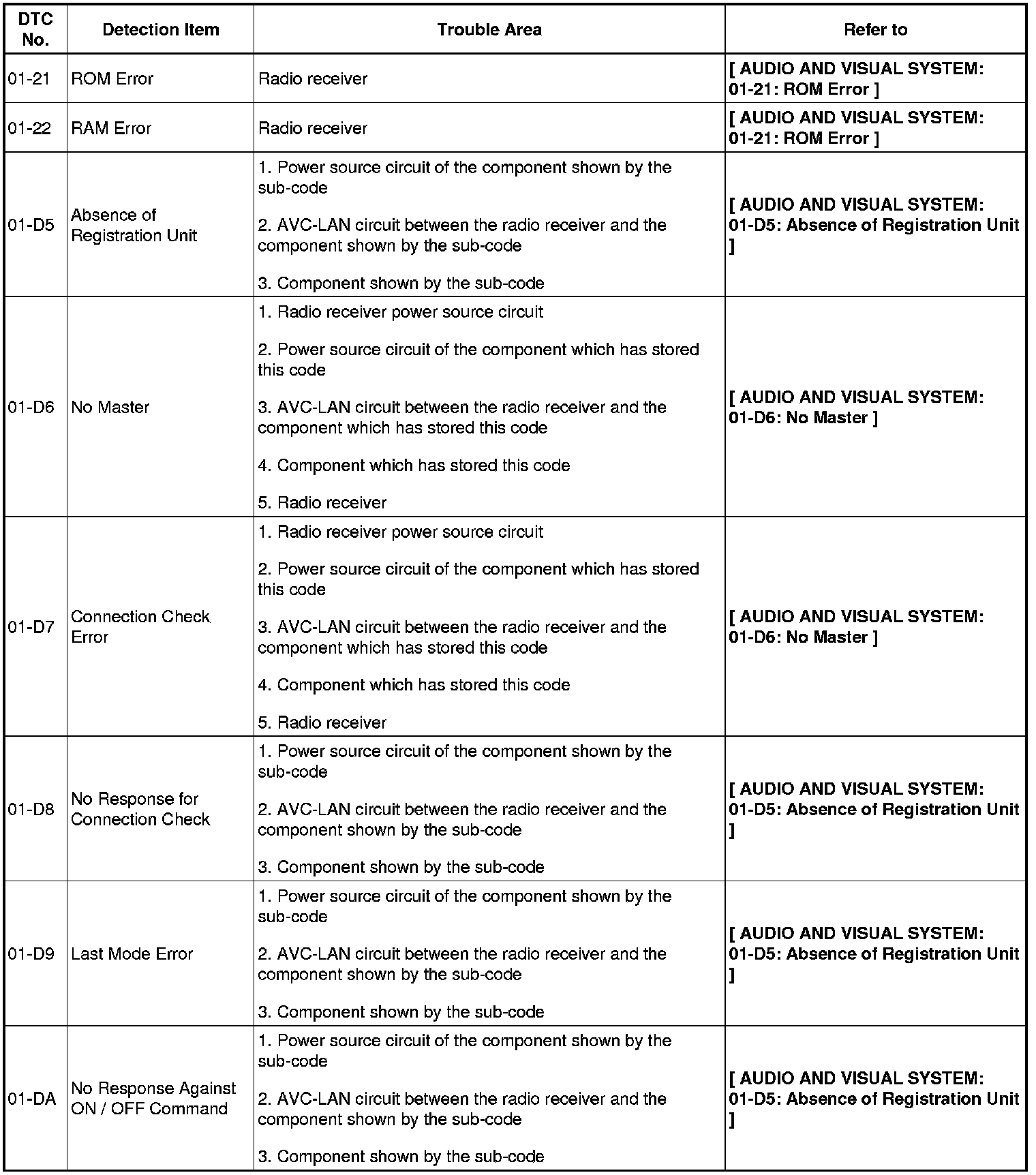

DTC 01-21 - 01-DA:

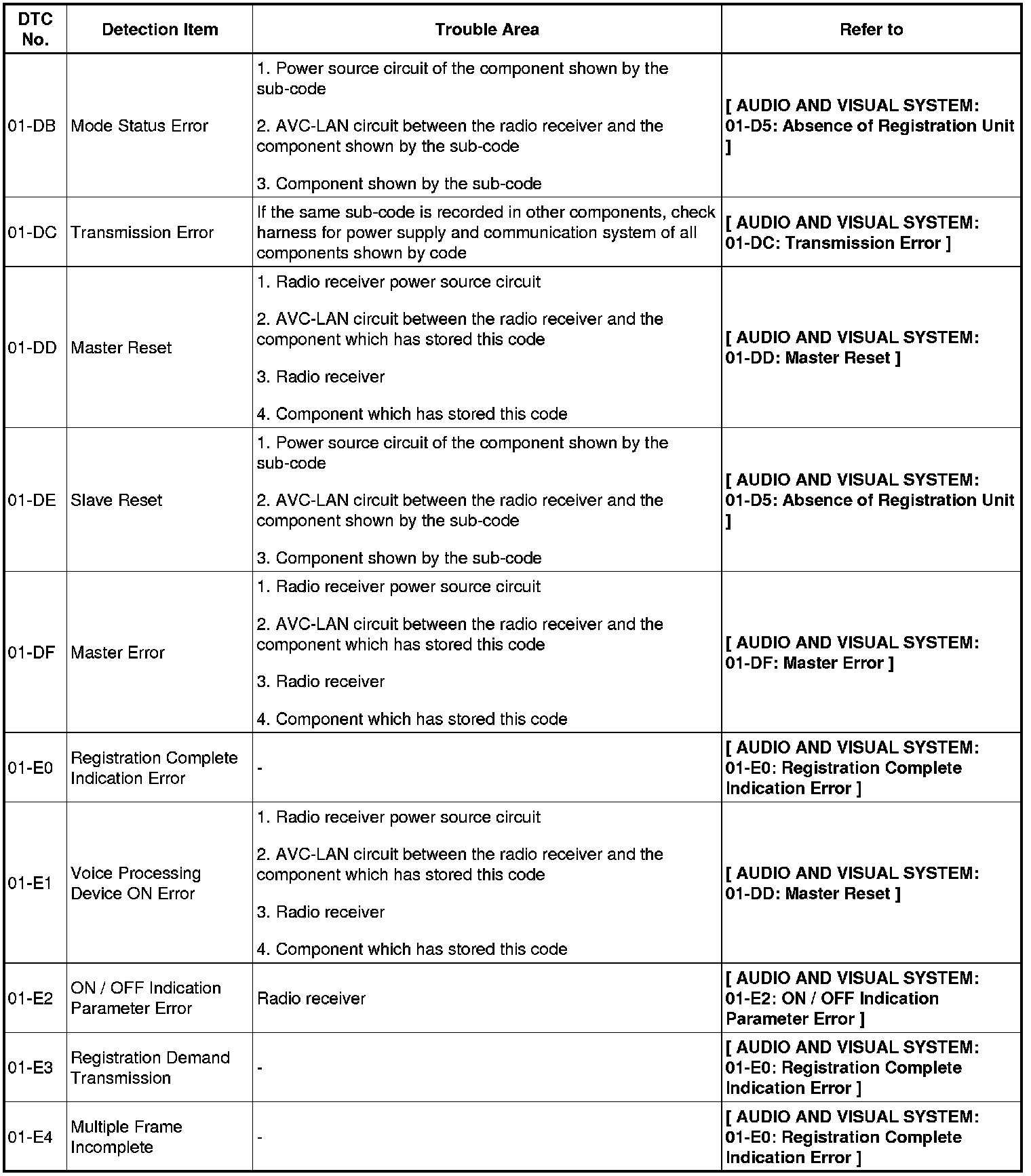

DTC 01-DB - 01-E4:





RADIO UNIT:

DTC 60-10 - 60-50:





IN-DASH CD CHANGER:

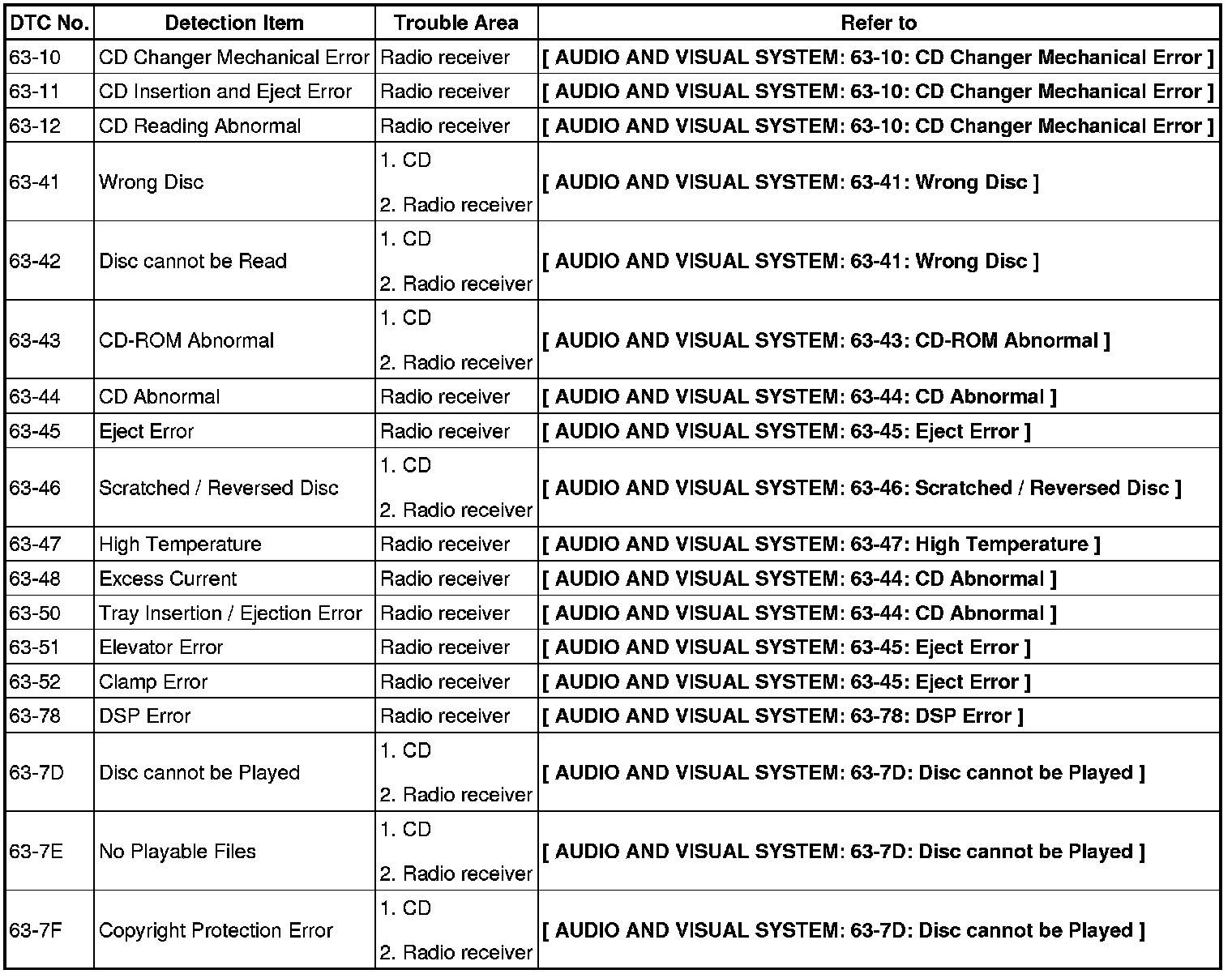

DTC 63-10 - 63-7F:





VOL:

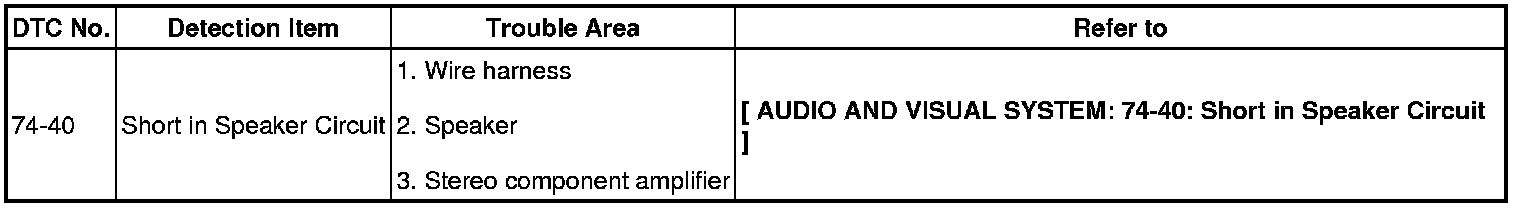

DTC 74-40:
