B2781

STEERING COLUMN: ELECTRIC STEERING LOCK: B2781: Open / Short in Steering Lock ECU

DTC B2781 - Open / Short in Steering Lock ECU

DESCRIPTION

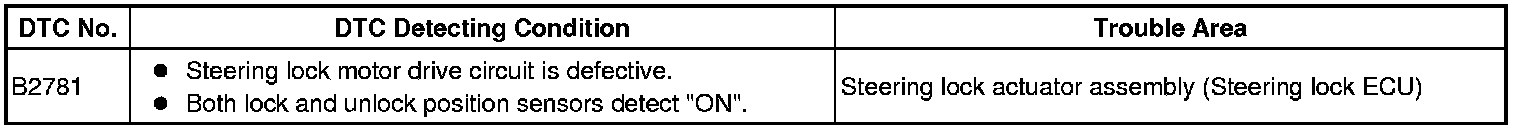

If the steering lock ECU determines that there is a malfunction inside the ECU, it outputs this DTC. Diagnostic communication between the steering lock ECU and the Techstream is performed via the certification ECU as the steering lock ECU is not connected to the BEAN.






INSPECTION PROCEDURE

PROCEDURE

1. REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

HINT: The steering lock ECU and steering lock actuator assembly are supplied as a unit.
(a) Replace the steering lock actuator assembly Disassembly for Manual Tilt & Telescopic Steering, Disassembly for Power Tilt & Telescopic Steering).
NEXT -- END
