B2620

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: B2620: ECU Power Source Circuit Malfunction

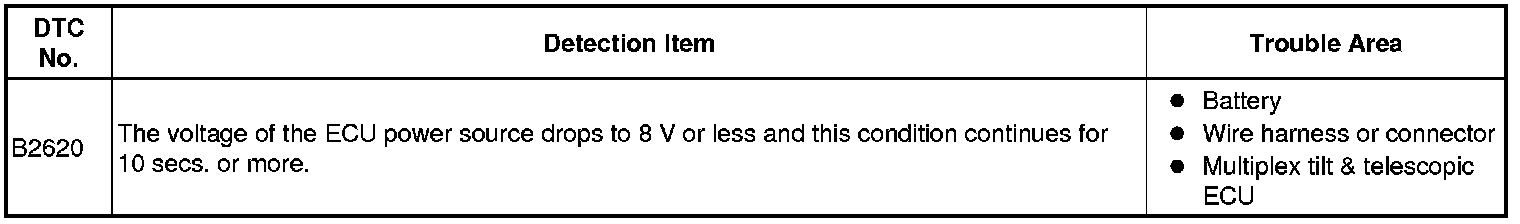

DTC B2620 - ECU Power Source Circuit Malfunction

DESCRIPTION

The ECU power source circuit supplies positive voltage to the multiplex tilt & telescopic ECU.

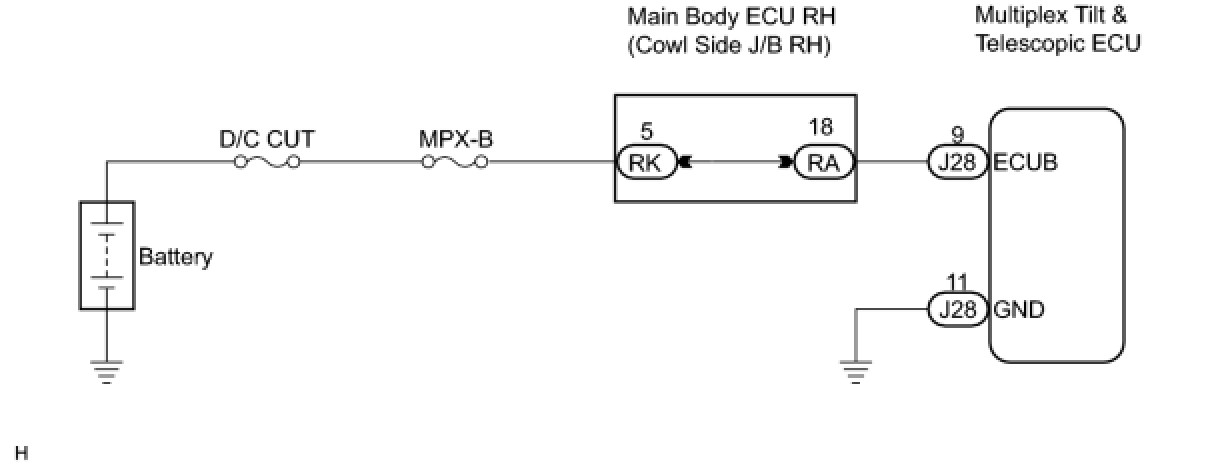

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - BATTERY)

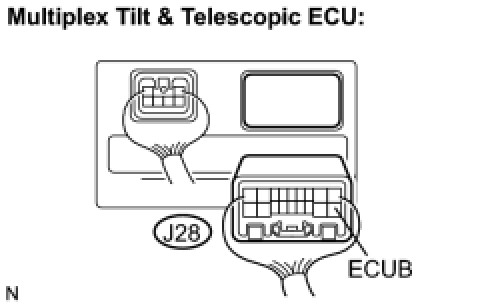

(a) Disconnect the J28 connector from the multiplex tilt & telescopic ECU.

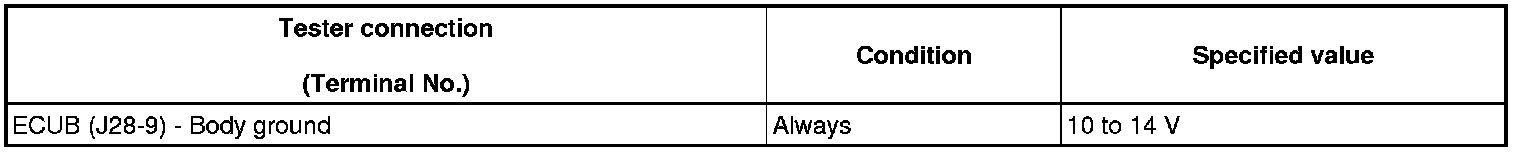

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - COWL SIDE J/B RH)
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - BODY GROUND)





(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE MULTIPLEX TILT & TELESCOPIC ECU
3. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - COWL SIDE J/B RH)

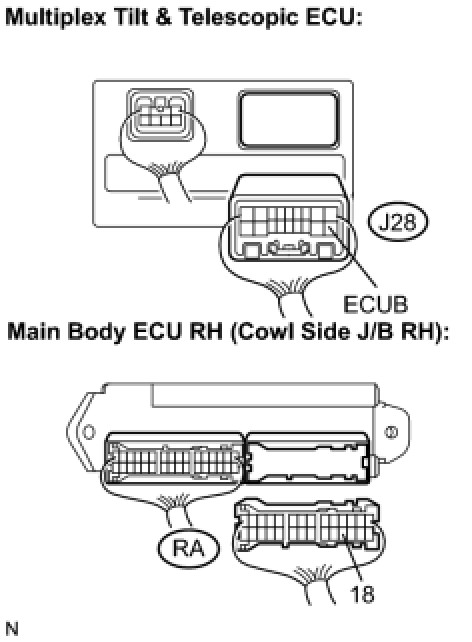

(a) Disconnect the RA connector from the main body ECU RH (cowl side J/B RH).

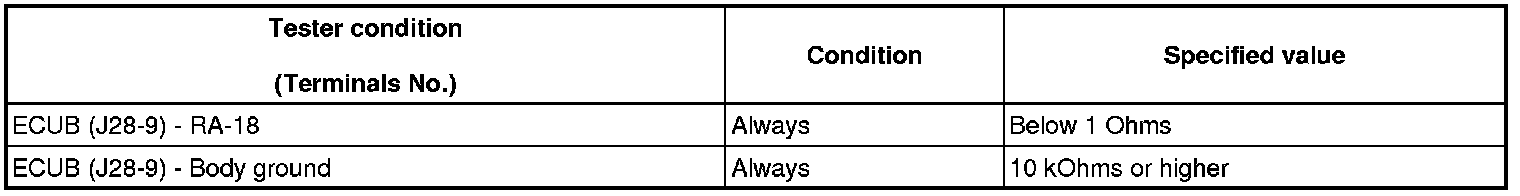

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (MULTIPLEX TILT & TELESCOPIC ECU - COWL SIDE J/B RH)
OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - COWL SIDE J/B RH)
