PRE-COLLISION SYSTEM: B2005: Short to B+ in Seat Belt Motor LH Circuit

DTC B2005 - Short to B+ in Seat Belt Motor LH Circuit

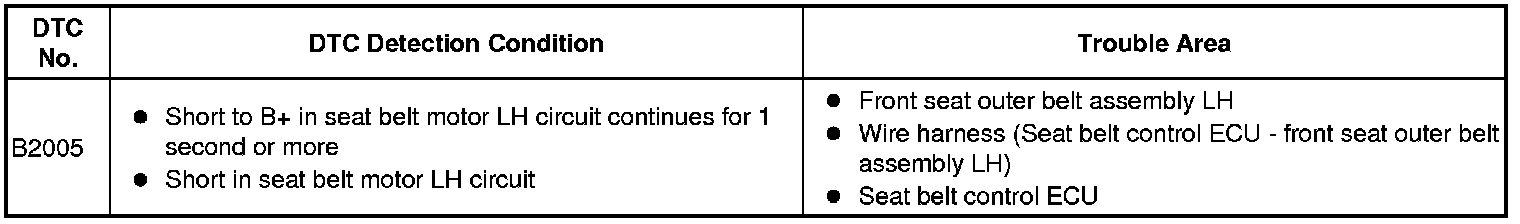

DESCRIPTION

The seat belt control ECU receives information from the distance control ECU using CAN communication and tightens the seat belt by operating the motor in the front seat outer belt assembly LH.
CAUTION: The pretensioner is built into the front seat outer belt assembly LH. Be sure to follow the correct inspection procedure, as failure to follow the correct procedure (such as inspection of incorrect connectors) may deploy the pretensioner.





WIRING DIAGRAM





INSPECTION PROCEDURE
NOTE: When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed. Pre-Collision System

PROCEDURE

1. INSPECT FRONT SEAT OUTER BELT ASSEMBLY LH

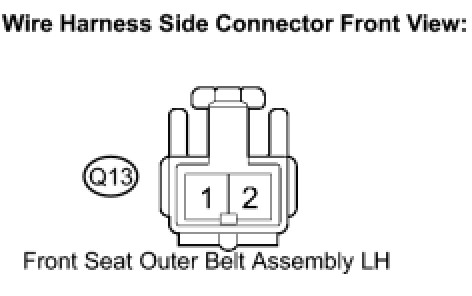

(a) Disconnect the Q13 connector of the front seat outer belt assembly LH.
(b) Measure the voltage according to the value(s) in the table below.

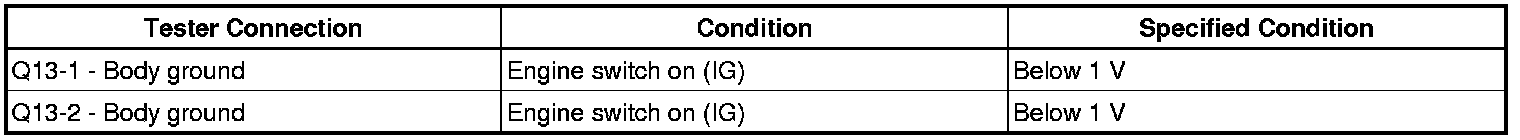

Standard voltage:






NG -- REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (FRONT SEAT OUTER BELT ASSEMBLY LH - SEAT BELT CONTROL ECU)





(a) Disconnect the negative (-) battery terminal.
(b) Disconnect the Q38 connector of the seat belt control ECU.
(c) Connect the negative (-) terminal to the battery.
(d) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE SEAT BELT CONTROL ECU
