Transfer Case Wire

UF1AE TRANSFER: TRANSFER WIRE:

INSPECTION

1. INSPECT TRANSFER WIRE

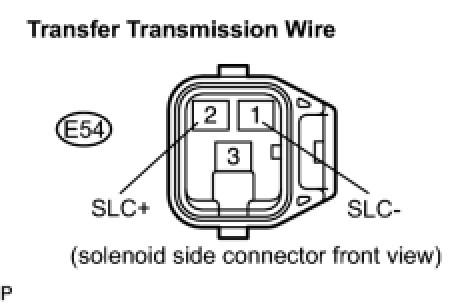

(a) Disconnect the transfer wire connector.

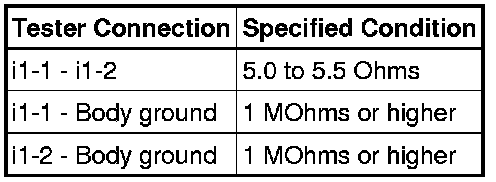

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the resistance is not specified, replace the transfer wire.
