Installation

DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER ASSEMBLY (for 4WD):

INSTALLATION

1. INSTALL FRONT DIFFERENTIAL CARRIER ASSEMBLY

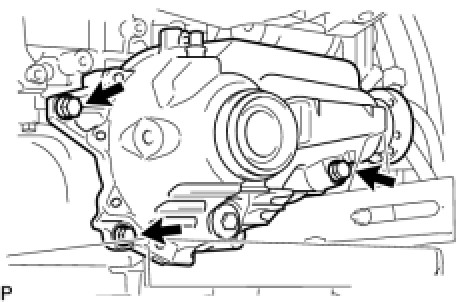

(a) Support the differential carrier assembly with a jack. Temporarily install the differential carrier assembly to the engine assembly with the 3 bolts.
(b) Fully tighten the 3 bolts to install the differential carrier assembly.
Torque: 87 Nm (890 kgf-cm, 64 ft-lbf)
2. INSTALL ENGINE ASSEMBLY Installation
