Removal

DIFFERENTIAL: DIFFERENTIAL MOUNT CUSHION:

REMOVAL

1. REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY
2GR-FSE: Removal
4GR-FSE: Removal

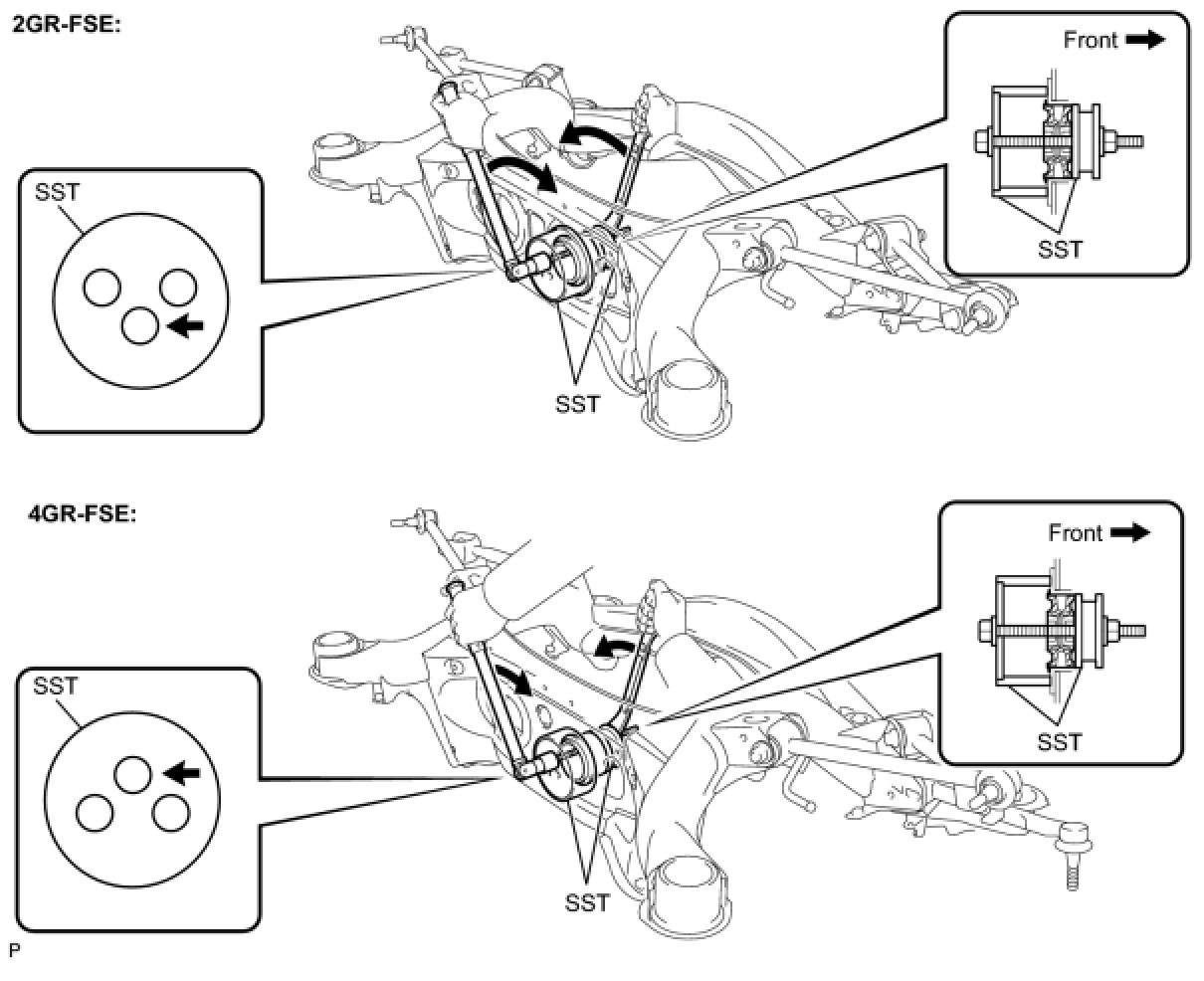

2. REMOVE NO. 1 REAR DIFFERENTIAL MOUNT CUSHION
(a) Using SST, remove the No. 1 rear differential mount cushion.





SST: 09570-24011
SST: 09316-12010
NOTICE:
- Do not bring the SST into contact with the subframe.
- Do not slant the bolts of SST.
- Set the SST in the correct direction.
- Screw the 2 bolts of SST equally into the 2 holes of the rear differential mount.

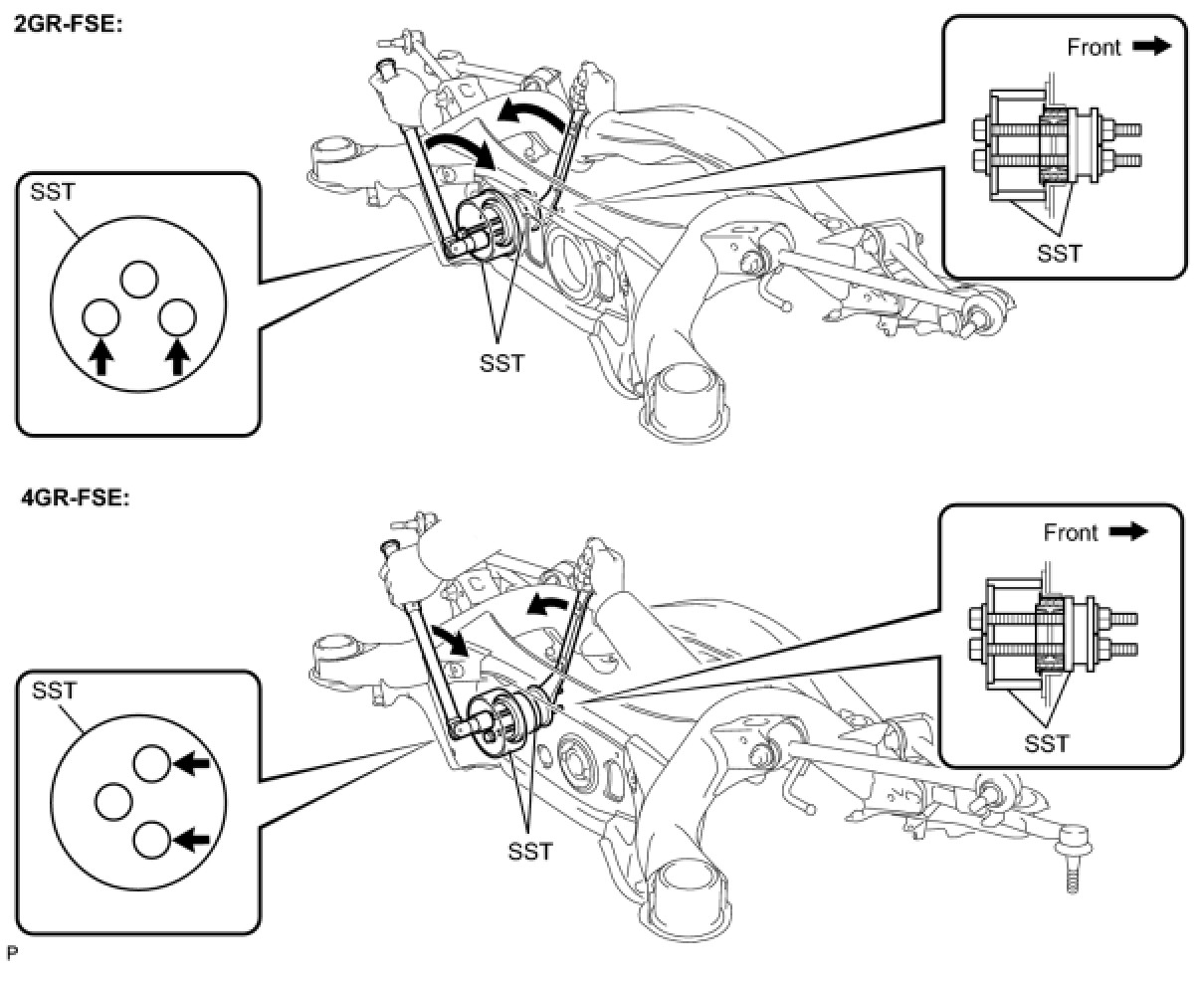

3. REMOVE NO. 2 REAR DIFFERENTIAL MOUNT CUSHION
(a) Using SST, remove the No. 2 rear differential mount cushion.





SST: 09570-24011
SST: 09316-12010
NOTICE:
- Do not bring SST into contact with the subframe.
- Do not slant the bolt of SST.
- Set the SST in the correct direction.
