Wiring Harness: Testing and Inspection








A760H AUTOMATIC TRANSMISSION: TRANSMISSION WIRE:

INSPECTION

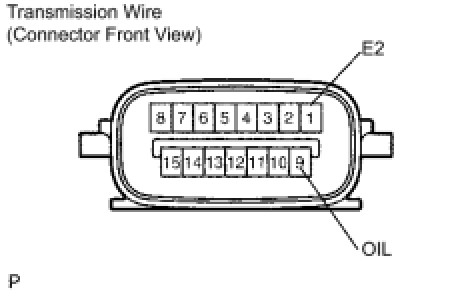

1. INSPECT TRANSMISSION WIRE






(a) Using an ohmmeter, measure the resistance between the terminals.

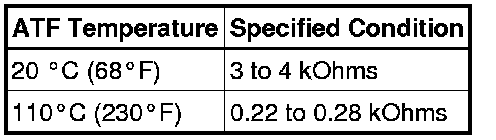

Standard resistance:
