Installation

A760H AUTOMATIC TRANSMISSION: TRANSMISSION WIRE:

INSTALLATION

1. INSTALL TRANSMISSION WIRE






(a) Coat a new O-ring of the transmission wire connector with ATF.
(b) Install the O-ring.






(c) Install the transmission wire with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(d) Connect the transmission wire connector.
2. CONNECT TRANSMISSION WIRE






(a) Connect the 9 connectors to the solenoid valves.






(b) Install the 2 clamps with the 2 bolts.
Bolt A - Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)
Bolt B - Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)






(c) Install the ATF temperature sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY

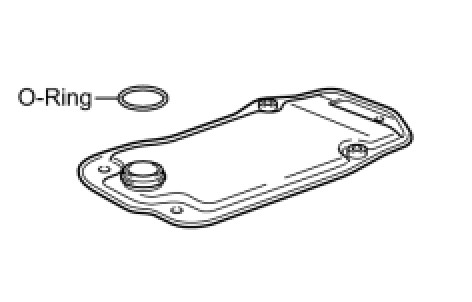

(a) Coat a new O-ring with ATF and install it to the oil strainer.






(b) Install the oil strainer with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY

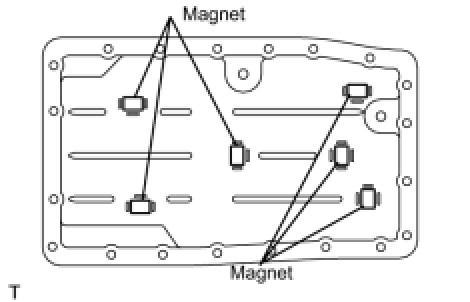

(a) Install the 6 magnets in the oil pan.






(b) Install a new gasket and the oil pan with the 20 bolts to the transmission case.
Torque: 4.4 Nm (45 kgf-cm, 39 in-lbf)
5. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY Installation

6. ADD AUTOMATIC TRANSMISSION FLUID Procedures
7. RESET MEMORY Programming and Relearning
