A760H AUTOMATIC TRANSMISSION: SHIFT LEVER ASSEMBLY:

INSTALLATION

1. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY






(a) Install the floor shift assembly with the 4 bolts.
Torque: 8.3 Nm (85 kgf-cm, 73 in-lbf)
(b) Connect the connector to the floor shift assembly.
2. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

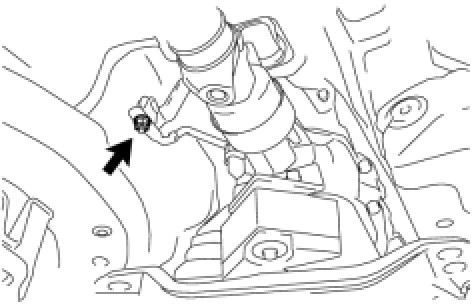

(a) Install the floor shift gear shifting rod sub-assembly with the nut.
Torque: 13 Nm (133 kgf-cm, 9 ft-lbf)
3. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR Installation

4. INSTALL EXHAUST PIPE ASSEMBLY FRONT Installation

5. INSTALL OXYGEN SENSOR Installation

6. INSTALL FRONT CENTER FLOOR BRACE Installation

7. INSTALL NO. 1 REAR FLOOR PANEL BRACE Installation

8. INSTALL NO. 2 CONSOLE BOX DUCT Installation

9. INSTALL CONSOLE BOX Installation

10. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

11. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY Installation

12. INSTALL CONSOLE PANEL SUB-ASSEMBLY Installation

13. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH Installation

14. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH Installation

15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
16. ADJUST SHIFT LEVER POSITION Adjustments

17. INSPECT SHIFT LEVER POSITION Shift Lever Assembly

18. CHECK FOR EXHAUST GAS LEAKS Installation
