Removal

SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment. Service Precautions

2. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY Removal

3. REMOVE REAR SEAT HEADREST ASSEMBLY
4. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
5. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY Removal

6. REMOVE REAR DOOR SCUFF PLATE LH Removal

7. REMOVE REAR DOOR SCUFF PLATE RH
8. REMOVE REAR SEAT SIDE GARNISH LH Removal

9. REMOVE REAR SEAT SIDE GARNISH RH
10. REMOVE ROOF SIDE INNER GARNISH LH Removal

11. REMOVE ROOF SIDE INNER GARNISH RH
12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade) Removal

13. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) Removal

14. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY

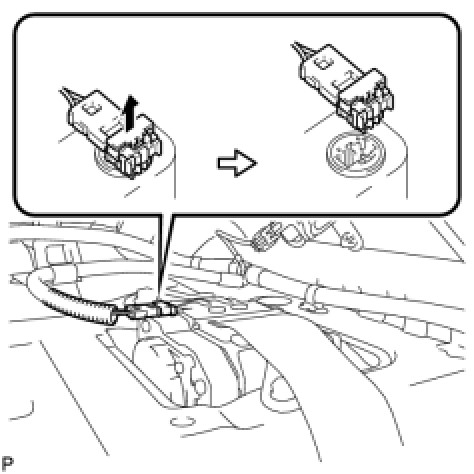

(a) Using a screwdriver, pull out the locking button in the direction shown by the arrow to release the lock, and disconnect the pretensioner connector as shown in the illustration.






(b) Remove the 2 bolts and the rear seat 3 point type belt assembly.
