Installation

LIGHTING: HIGH INTENSITY DISCHARGE HEADLIGHT BULB:

INSTALLATION

1. INSTALL DISCHARGE HEADLIGHT BULB
(a) Install the discharge headlight bulb.
NOTE: After the discharge headlight bulb is replaced, make sure that it comes on. Then, reinstall all the parts that were removed to replace the bulb.

(b) Install a new headlight gasket.
NOTE: After the headlight gasket is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.

2. INSTALL WASHER HOSE

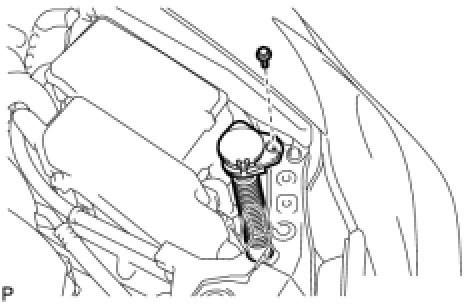

(a) Install the washer hose with the bolt.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
3. INSTALL ENGINE ROOM SIDE COVER Installation

4. INSTALL COOL AIR INTAKE DUCT SEAL
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
Some systems need initialization after reconnecting the cable to the negative battery terminal Repair Instruction - Initialization.
