Installation

OTHER SYSTEM: CLOCK:

INSTALLATION

1. INSTALL CLOCK ASSEMBLY (w/o Navigation System)

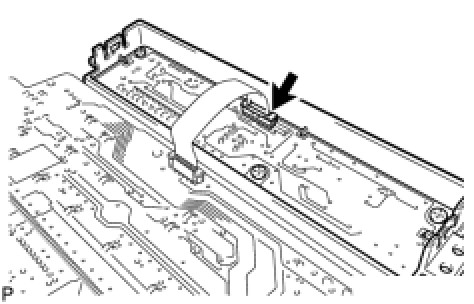

(a) Connect the connector.

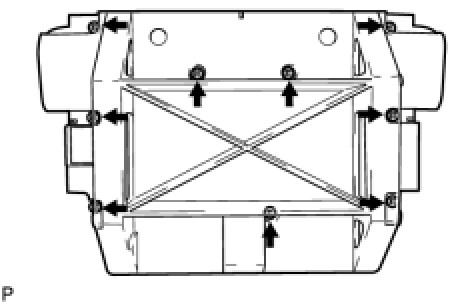

(b) Install the cover with the 9 screws.

(d) Install the install the integration control panel with 6 screws.
2. INSTALL RADIO RECEIVER ASSEMBLY (w/o Navigation System) Installation

3. INSTALL NO. 2 RADIO BRACKET (w/o Navigation System) Installation

4. INSTALL NO. 1 RADIO BRACKET (w/o Navigation System) Installation

5. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) Installation

6. INSTALL CLOCK ASSEMBLY (w/ Navigation System)

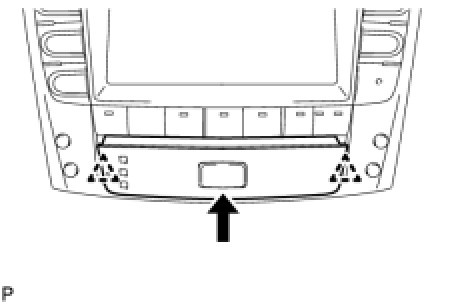

(a) Engage the 2 clips and install the clock assembly.
7. INSTALL RADIO RECEIVER ASSEMBLY (w/ Navigation System) Installation

8. INSTALL NO. 2 RADIO BRACKET (w/ Navigation System) Installation

9. INSTALL NO. 1 RADIO BRACKET (w/ Navigation System) Installation

10. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) Installation

11. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Installation

12. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

13. INSTALL CONSOLE BOX Installation

14. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

15. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY Installation

16. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

17. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

18. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation

19. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

20. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

21. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
22. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
23. ADJUST CLOCK
