Reassembly

AIR CONDITIONING: BLOWER UNIT:

REASSEMBLY

1. INSTALL COOLING UNIT WITH FAN MOTOR SUB-ASSEMBLY

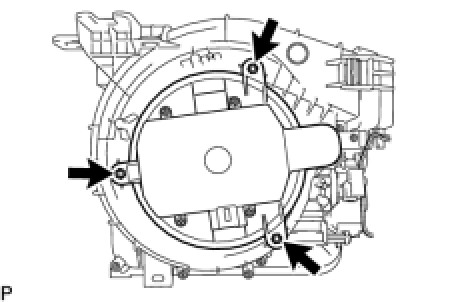

(a) Install the fan motor with the 3 screws.
2. INSTALL CLEAN AIR FILTER

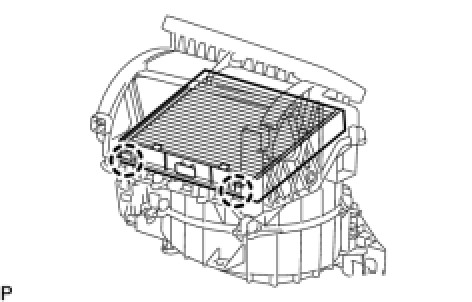

(a) Attach the 2 claws to install the air filter.
3. INSTALL INLET CONTROL SERVO MOTOR

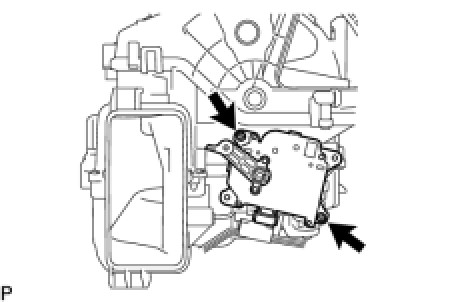

(a) Install the inlet control servo motor with the 2 screws.

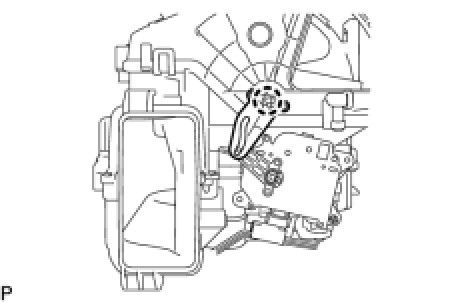

(b) Attach the claw and install the lever.
