Removal

AIR CONDITIONING: WATER HOSE JOINT:

REMOVAL

1. REMOVE V-BANK COVER Removal

2. REMOVE HEATER WATER OUTLET HOSE Removal

3. REMOVE HEATER WATER INLET HOSE Removal

4. REMOVE WATER BY-PASS GLOW PLUG Removal

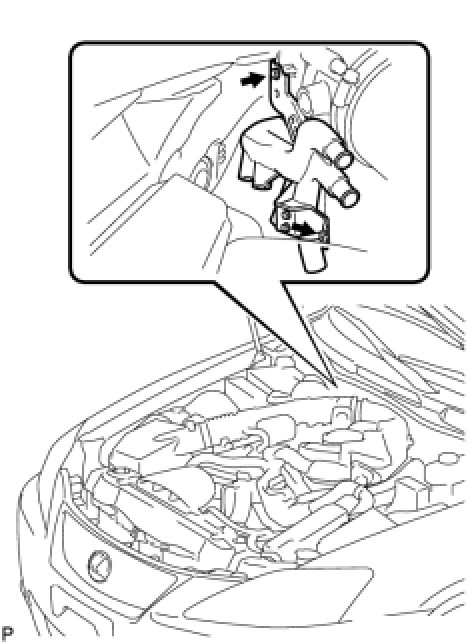

5. REMOVE WATER HOSE JOINT






(a) Remove the 2 bolts.
(b) Disconnect the 2 hoses, and remove the water hose joint.
