Removal

4GR-FSE ENGINE MECHANICAL: ENGINE REAR OIL SEAL:

REMOVAL

1. REMOVE MANUAL TRANSMISSION ASSEMBLY (for Manual Transmission) .

2. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY (for Automatic Transmission)

HINT:
- A960E Removal.
- A760H Removal.

3. REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transmission) Removal

4. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transmission) Removal

5. REMOVE ENGINE REAR OIL SEAL

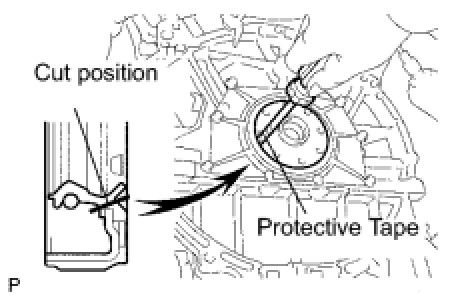

(a) Using a knife, cut through the oil seal lip.
(b) Using a screwdriver with its tip taped, pry out the oil seal.

HINT: Tape the screwdriver tip before use.
NOTE: After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
