Home >> Lexus >> 2008 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Description and Operation

Cooling System: Description and Operation








4GR-FSE COOLING: COOLING SYSTEM:

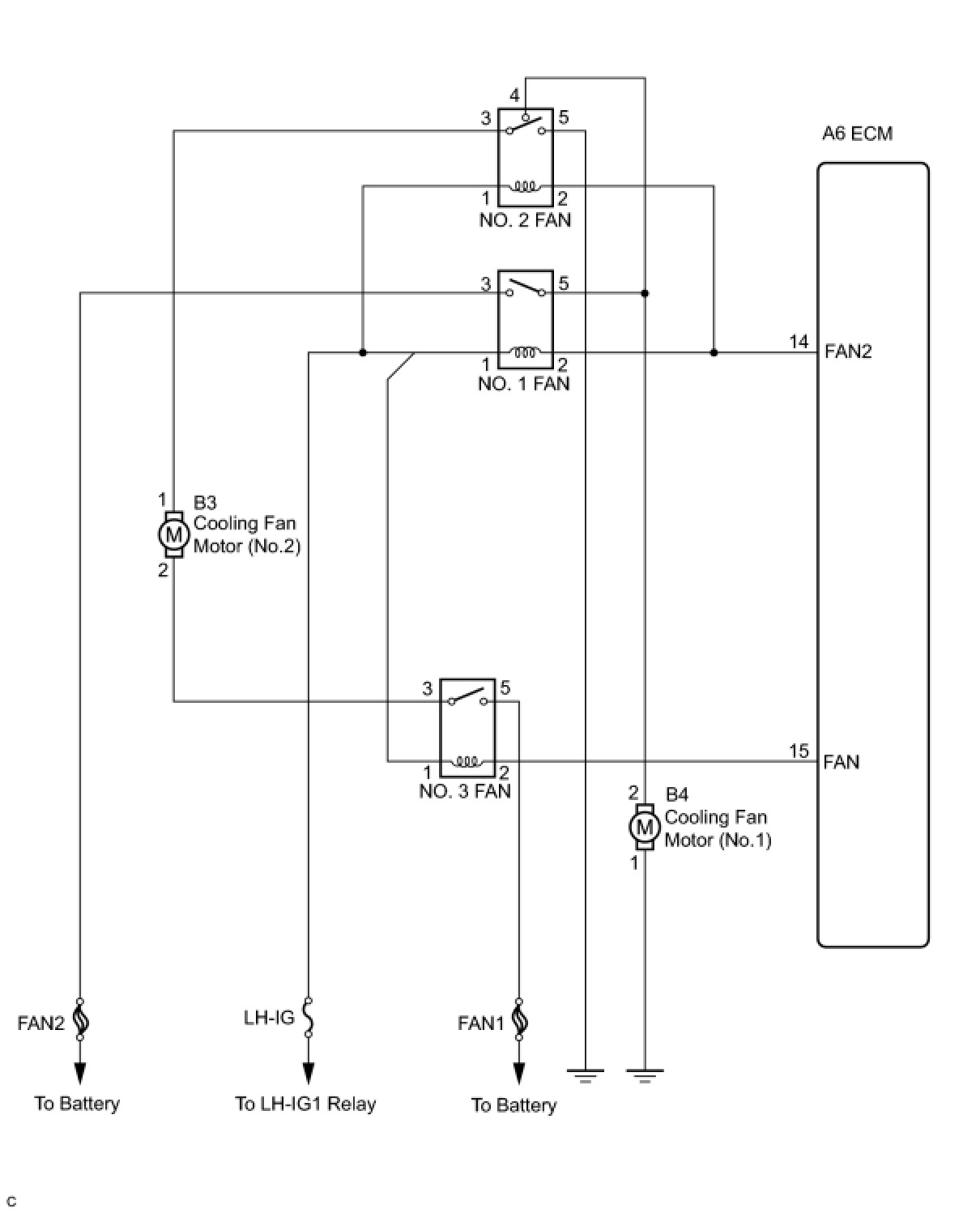

SYSTEM DIAGRAM
