IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Diagrams
>>

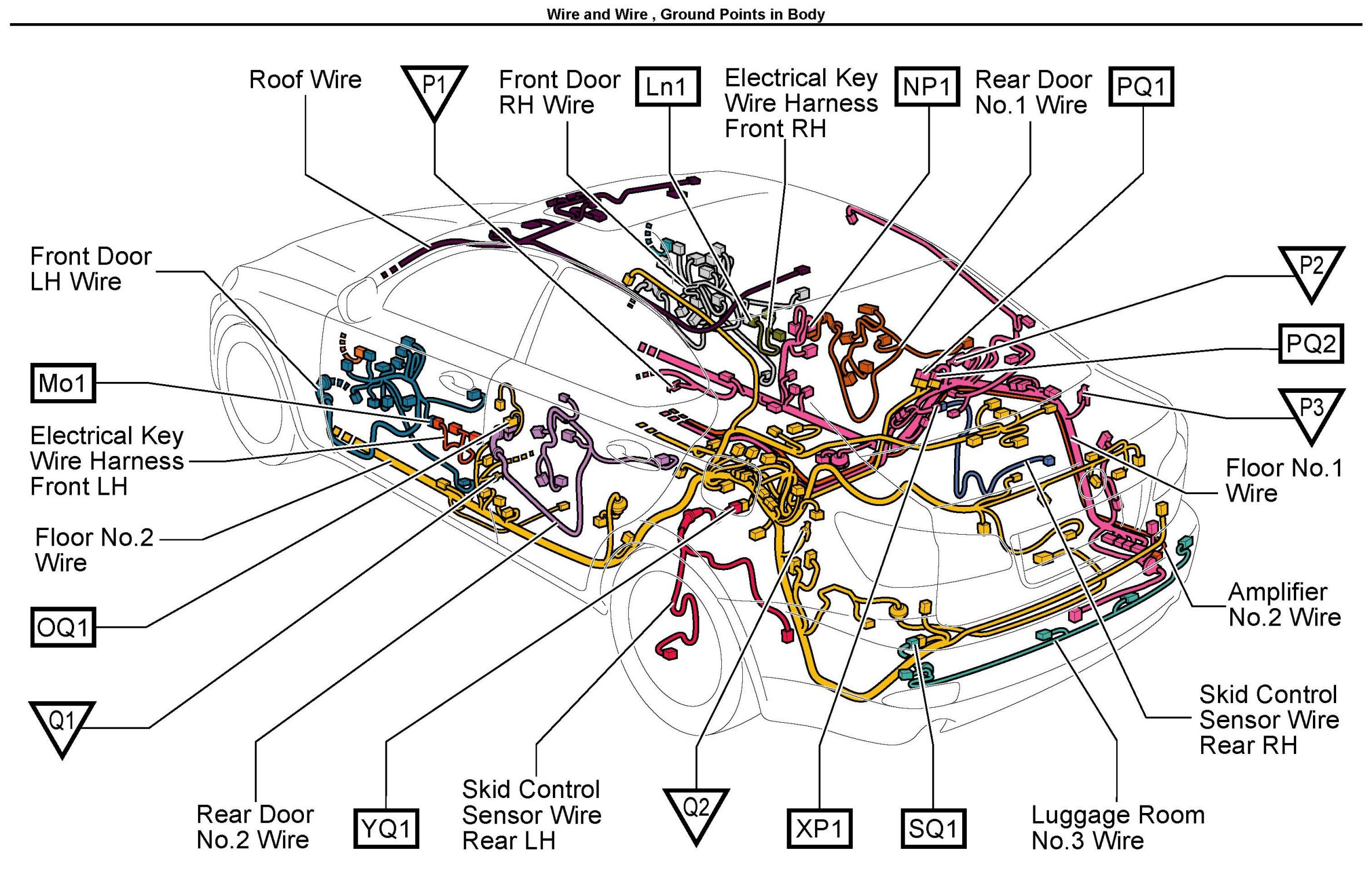

Grounds
Grounds

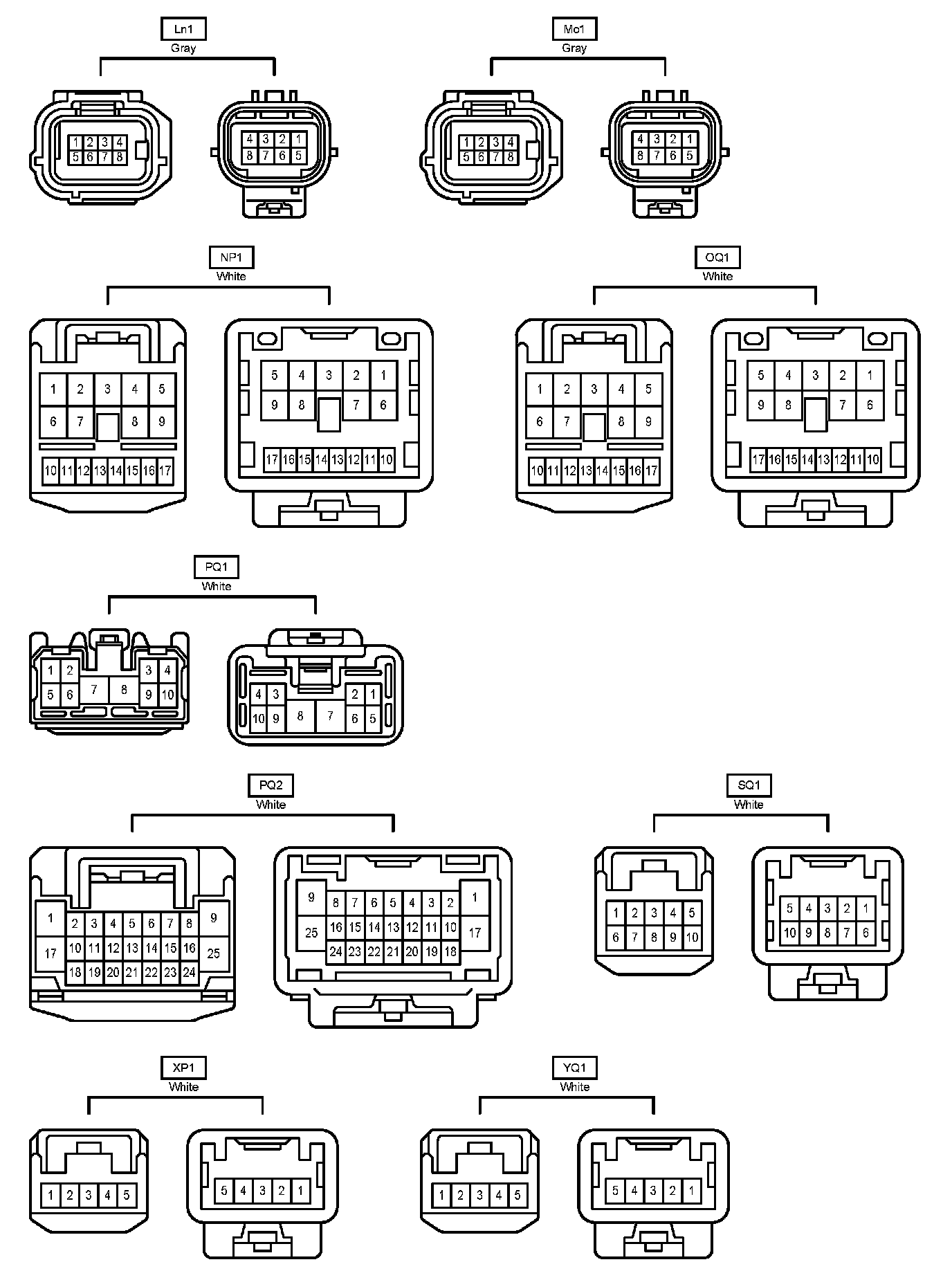

P1-Q2, Ln1-YQ1:
Ln1-YQ1:
