Power Seat [Front Passenger's Seat w/o Seat Position Memory]

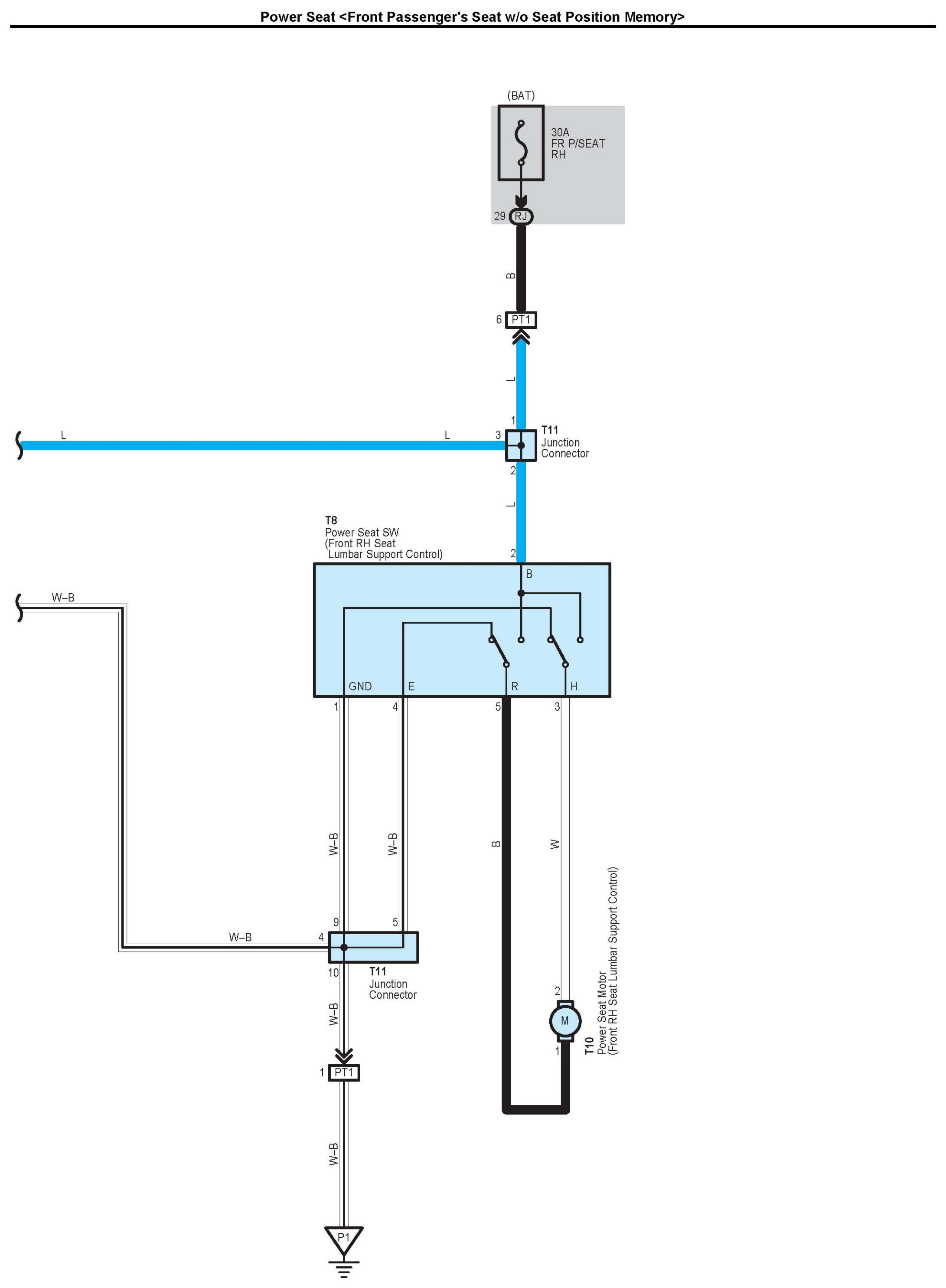

Power Seat <Front Passenger's Seat w/o Seat Position Memory> Part 1:

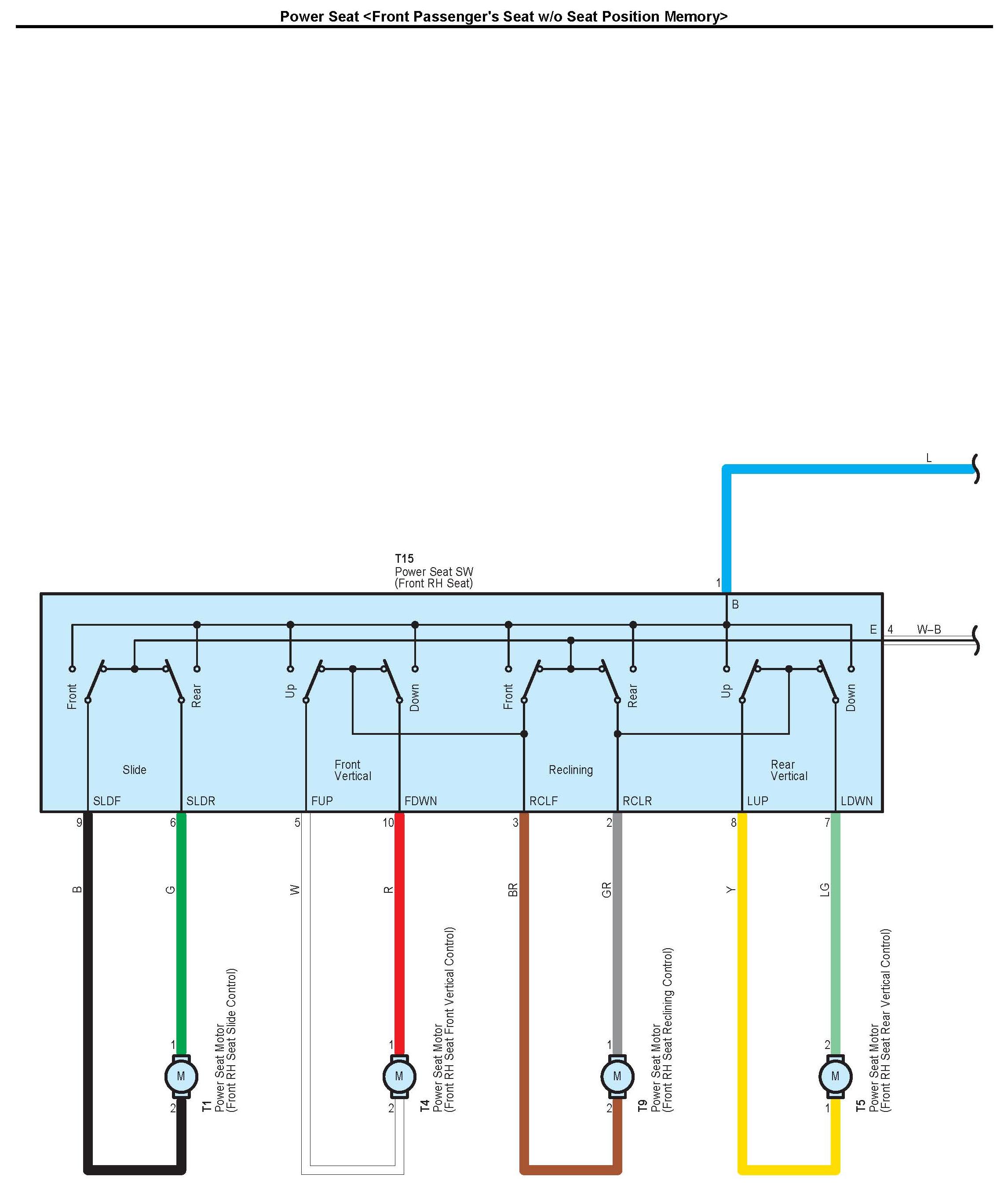

Power Seat <Front Passenger's Seat w/o Seat Position Memory> Part 2:

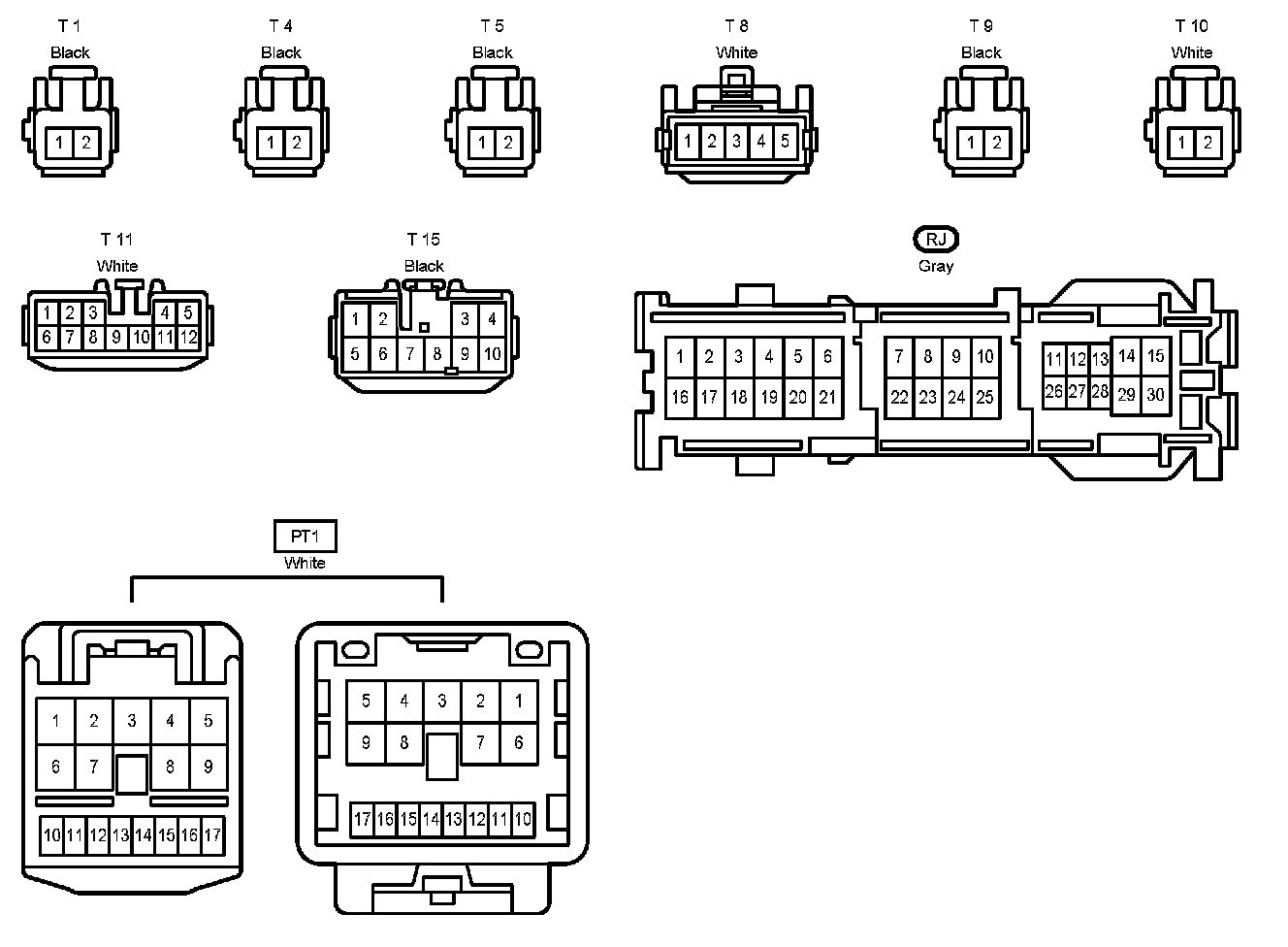

Connector Pin Outs:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
