Vehicle Dynamics Integrated Management

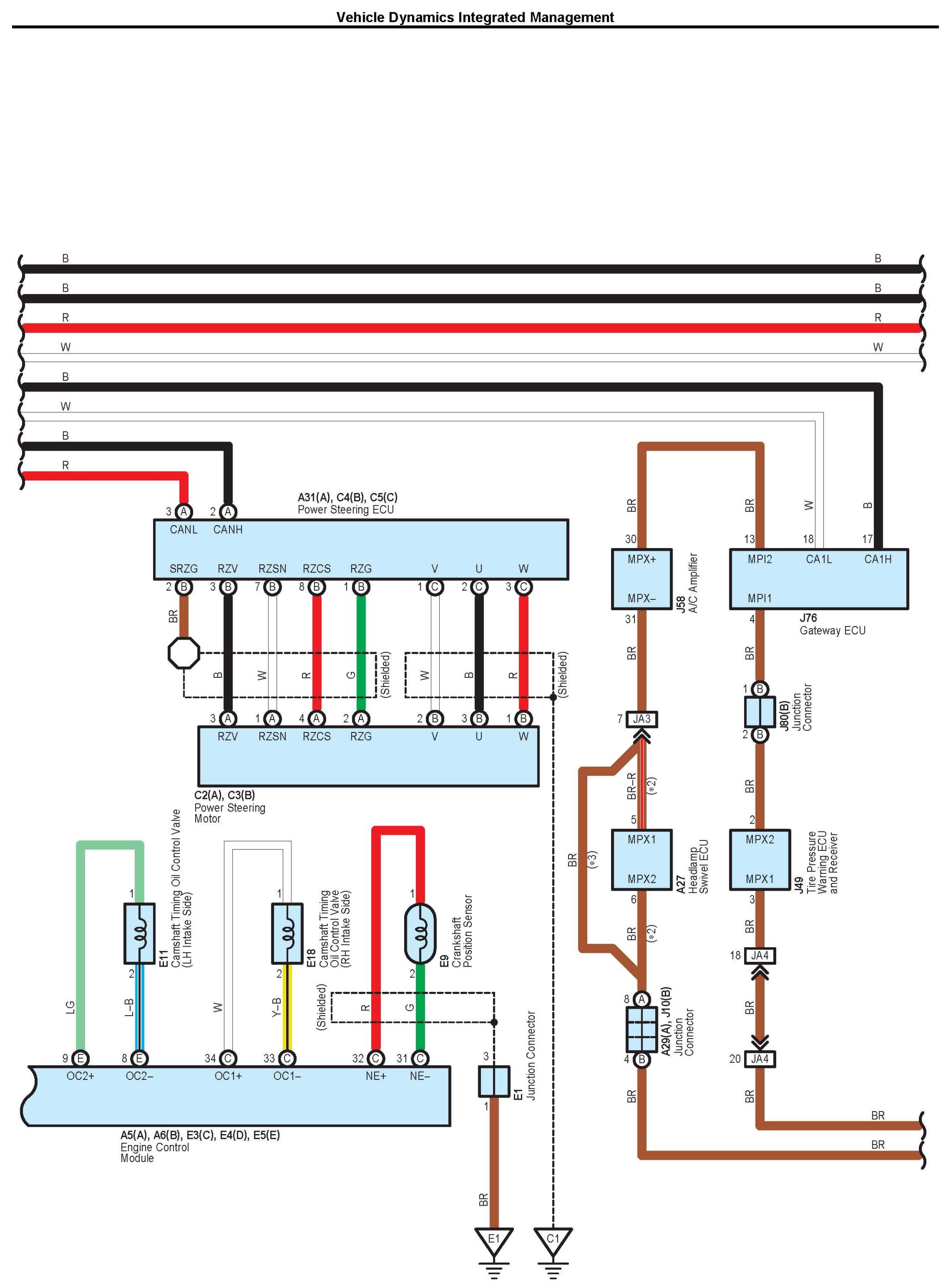

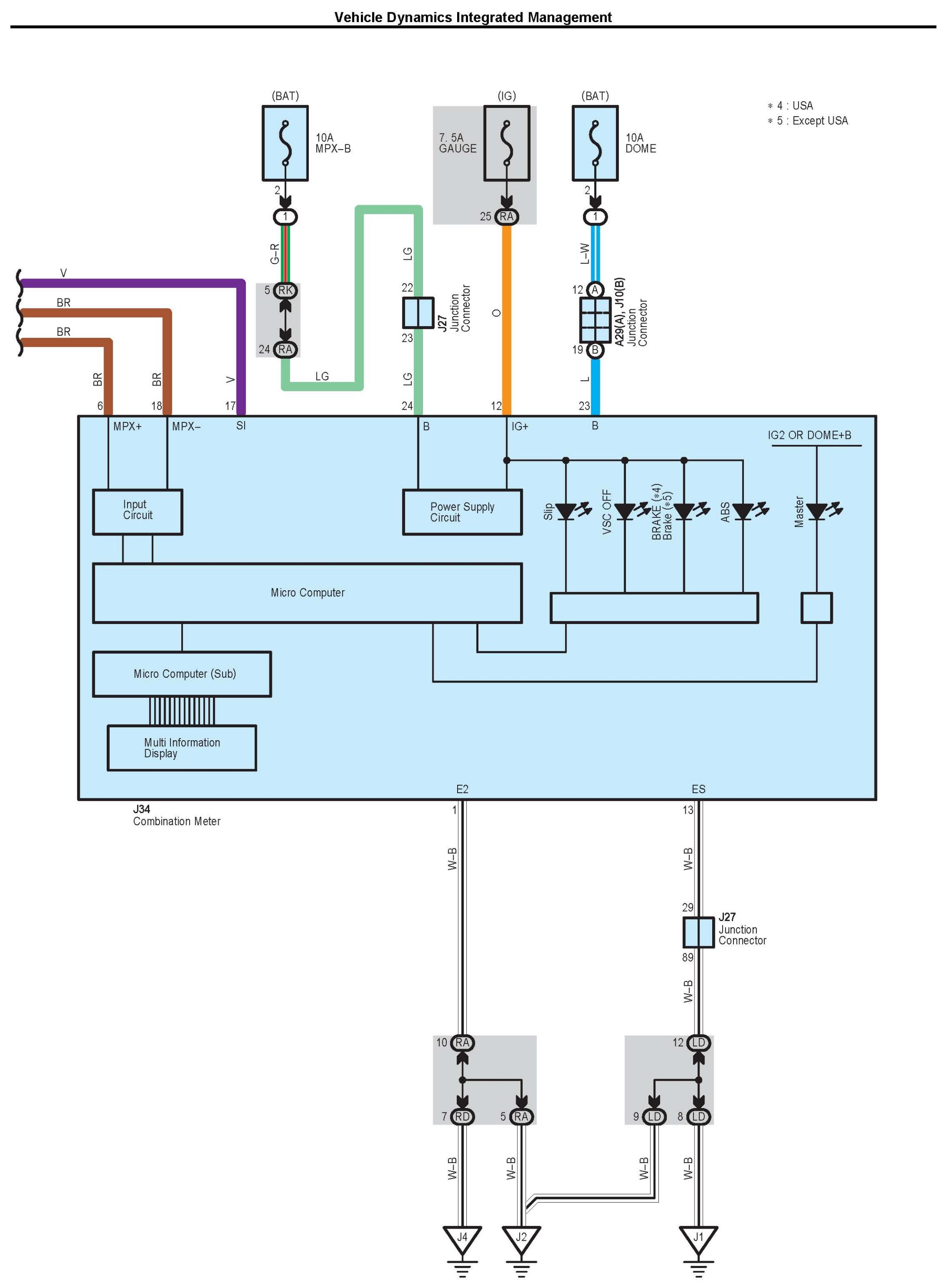

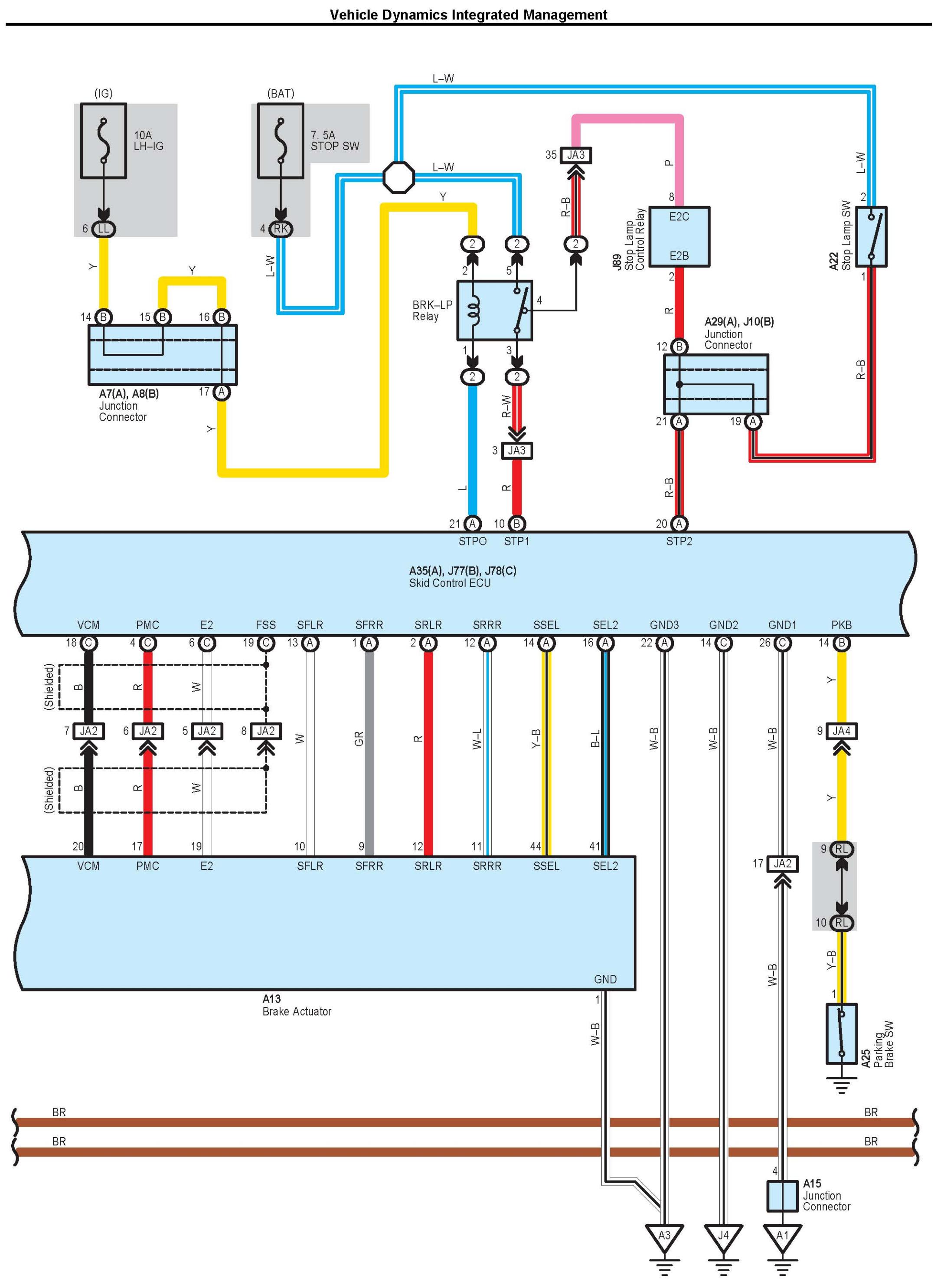

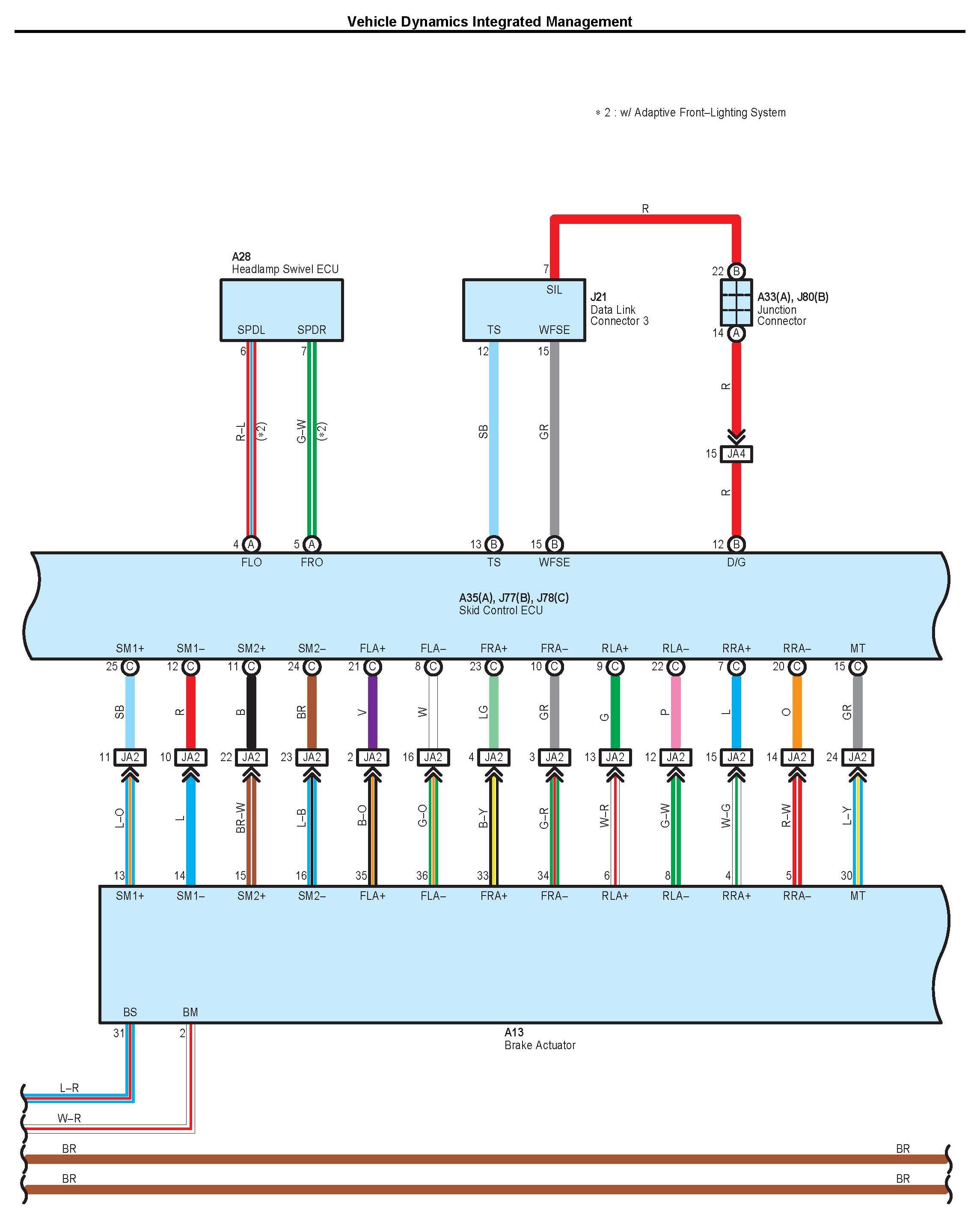

Vehicle Dynamics Integrated Management Part 1:

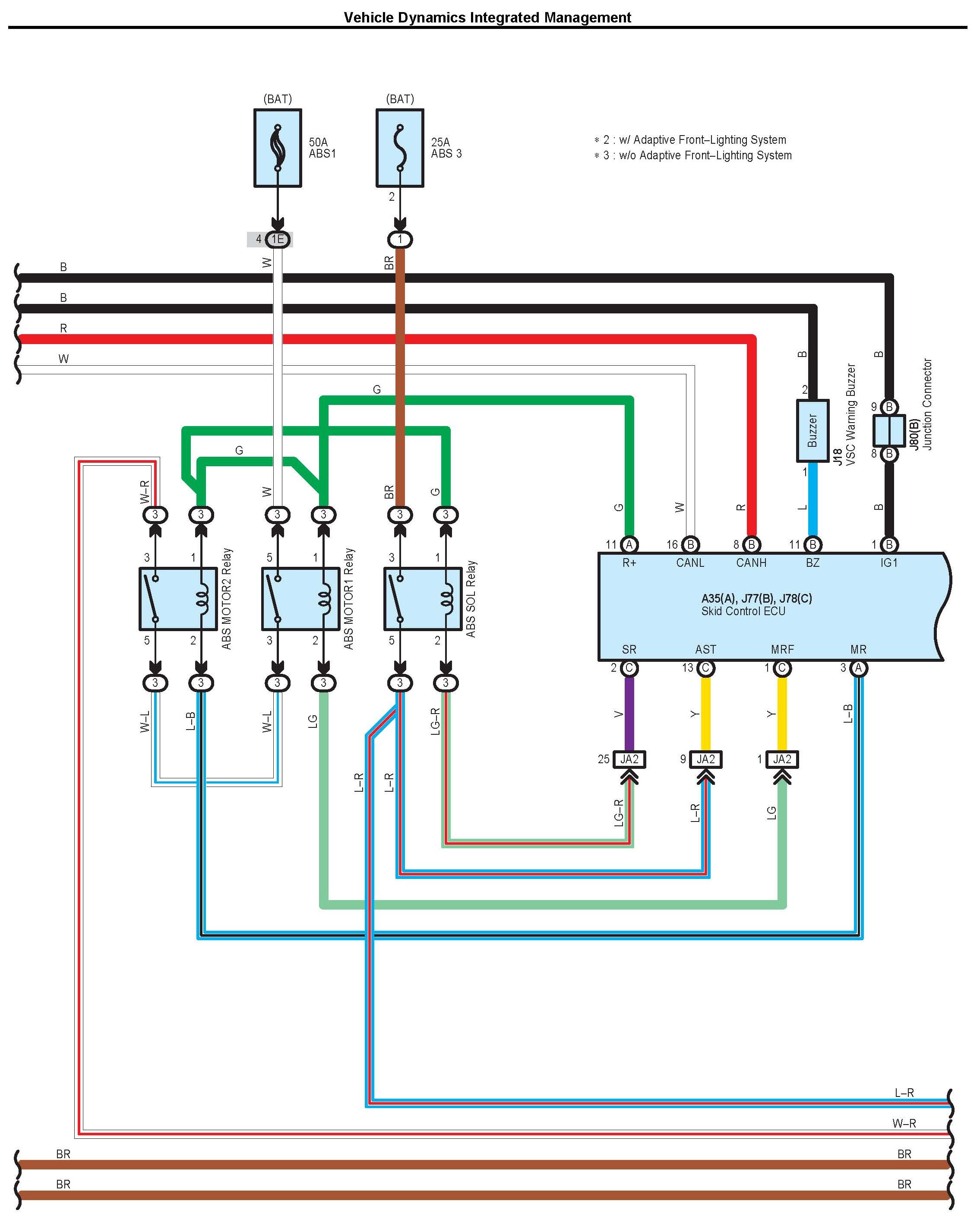

Vehicle Dynamics Integrated Management Part 2:

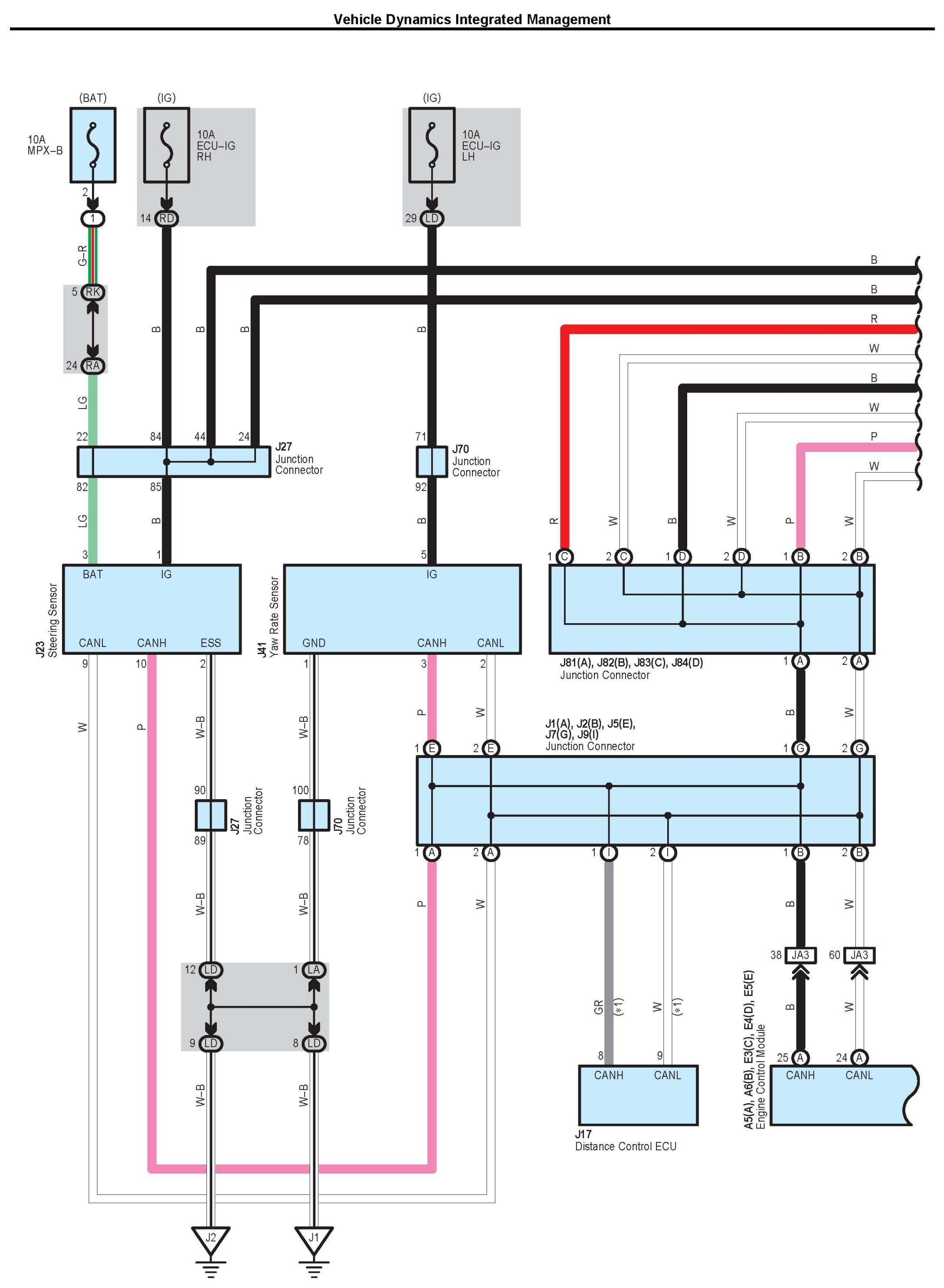

Vehicle Dynamics Integrated Management Part 3:

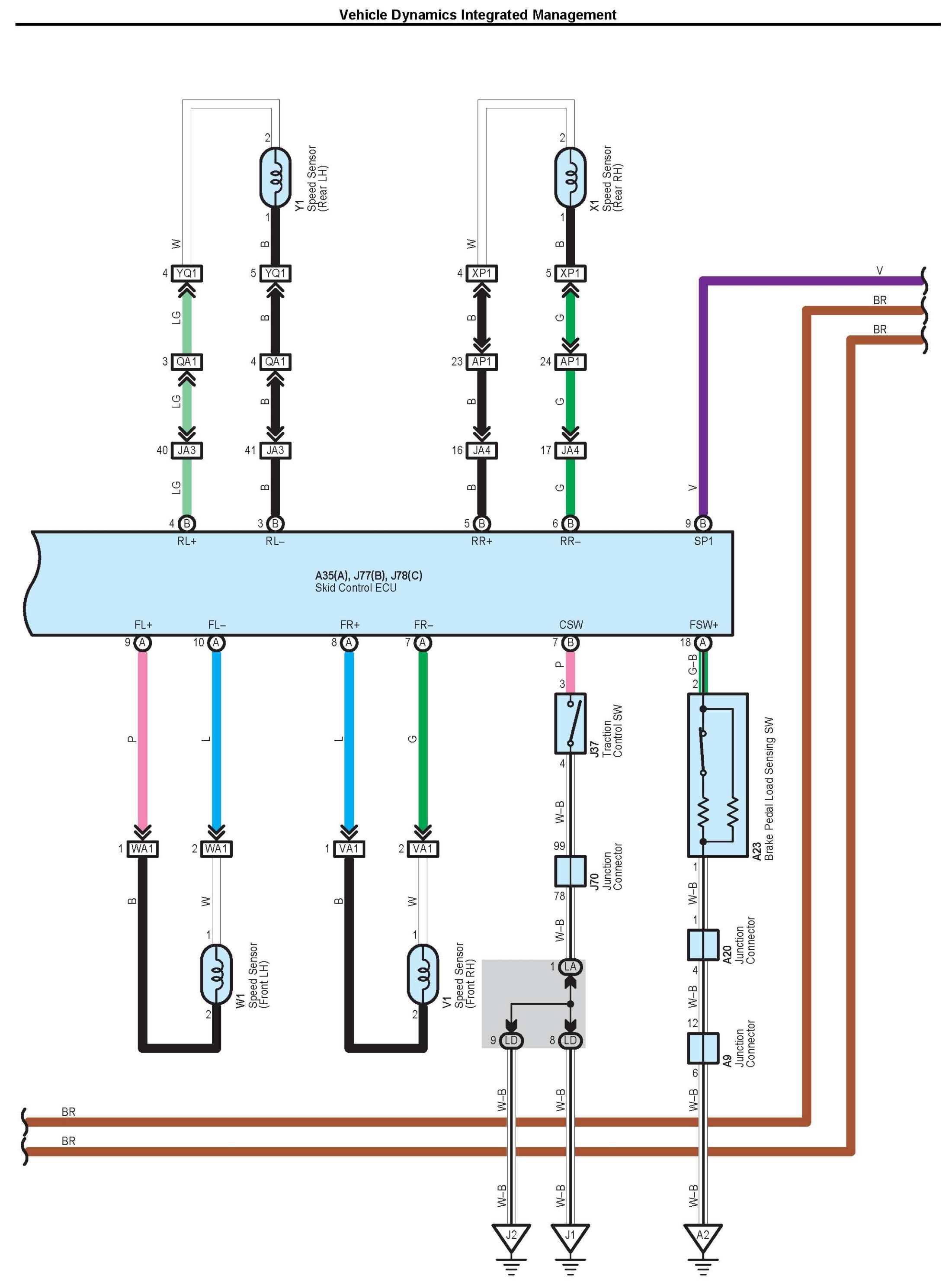

Vehicle Dynamics Integrated Management Part 4:

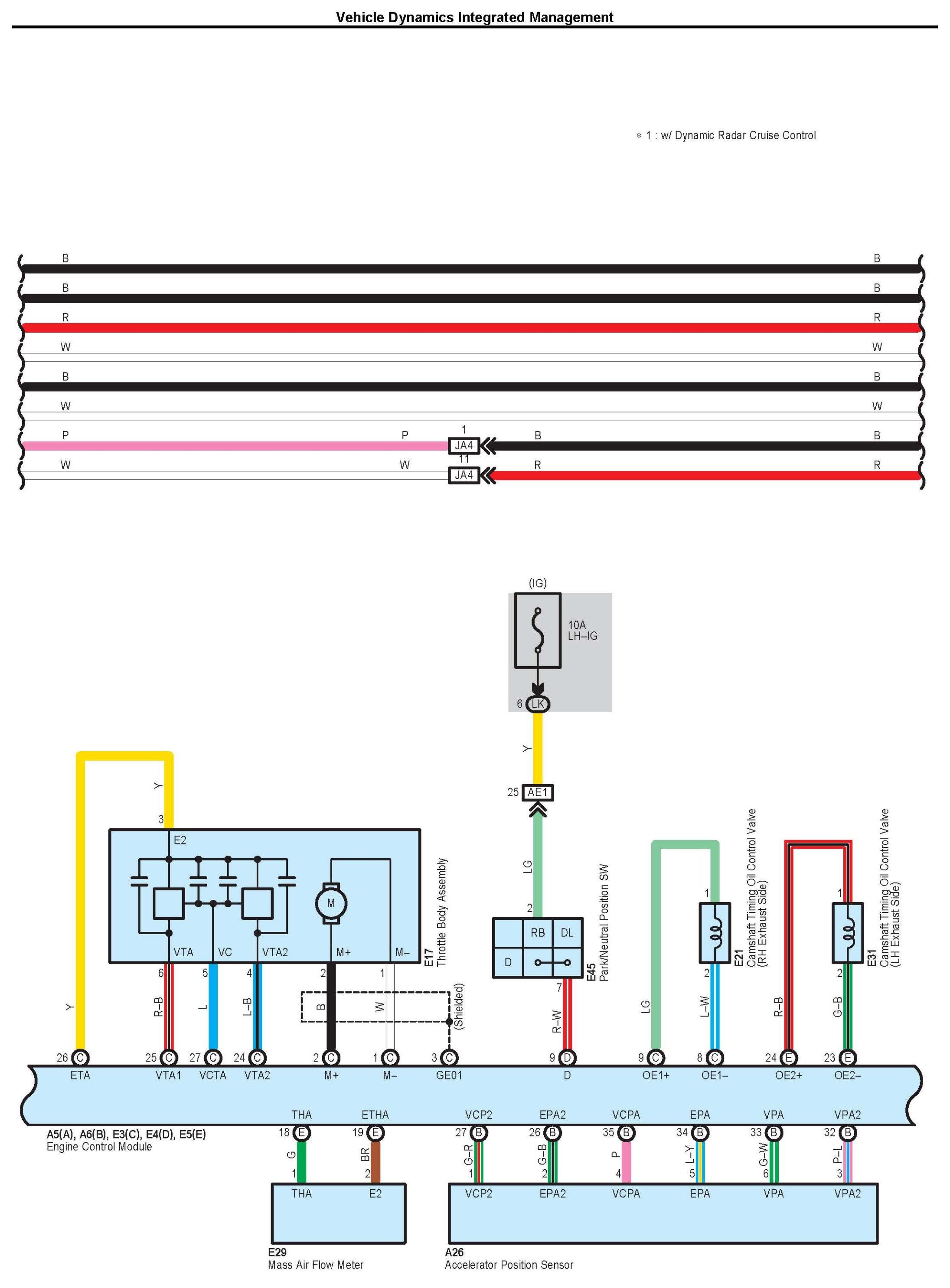

Vehicle Dynamics Integrated Management Part 5:

Vehicle Dynamics Integrated Management Part 6:

Vehicle Dynamics Integrated Management Part 7:

Vehicle Dynamics Integrated Management Part 8:

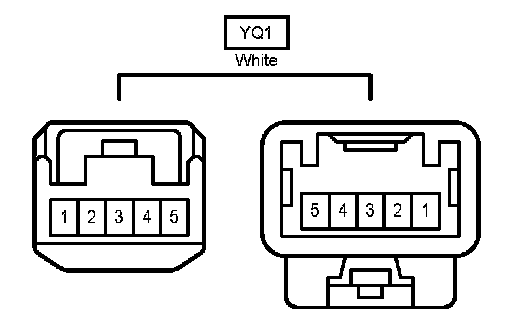

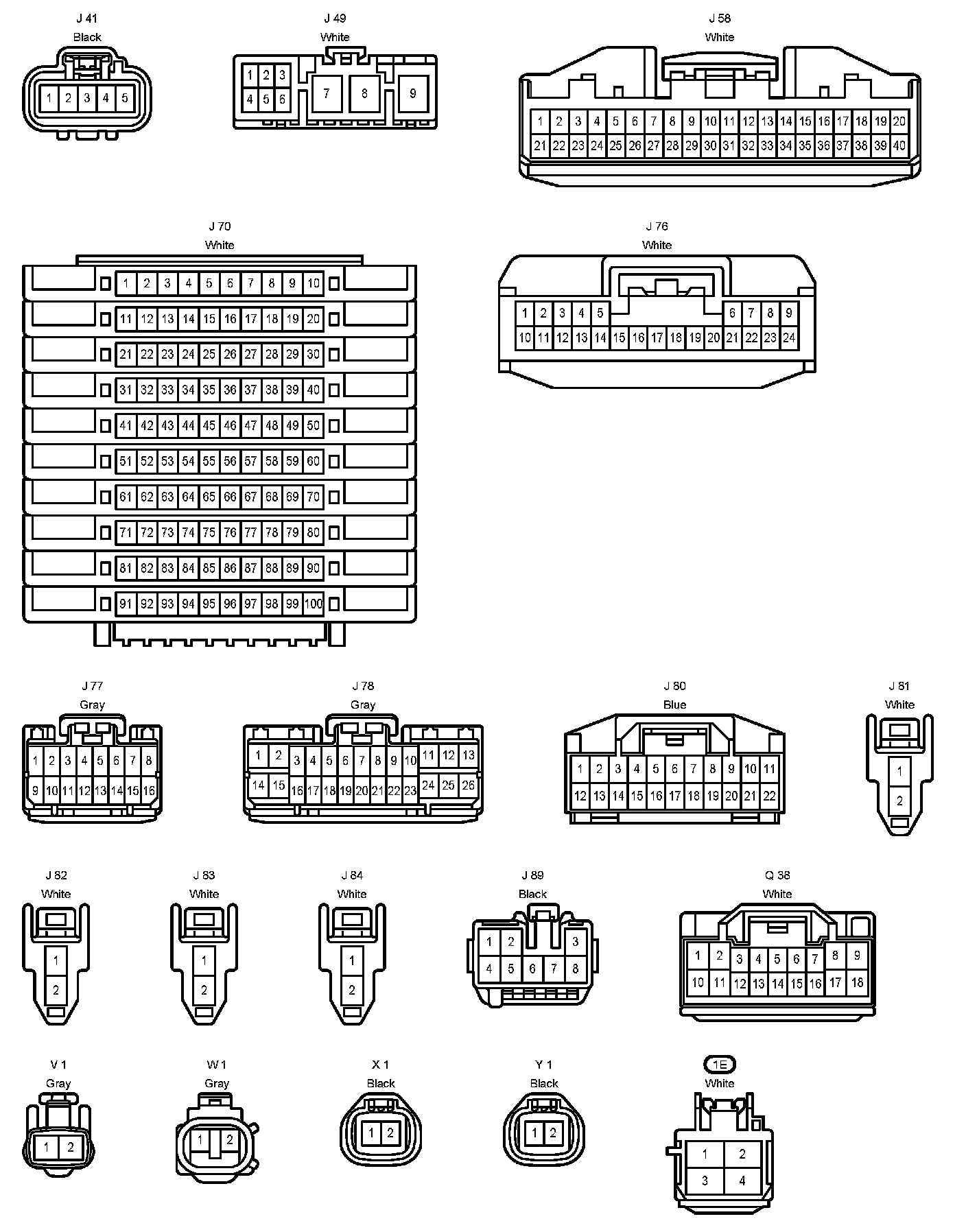

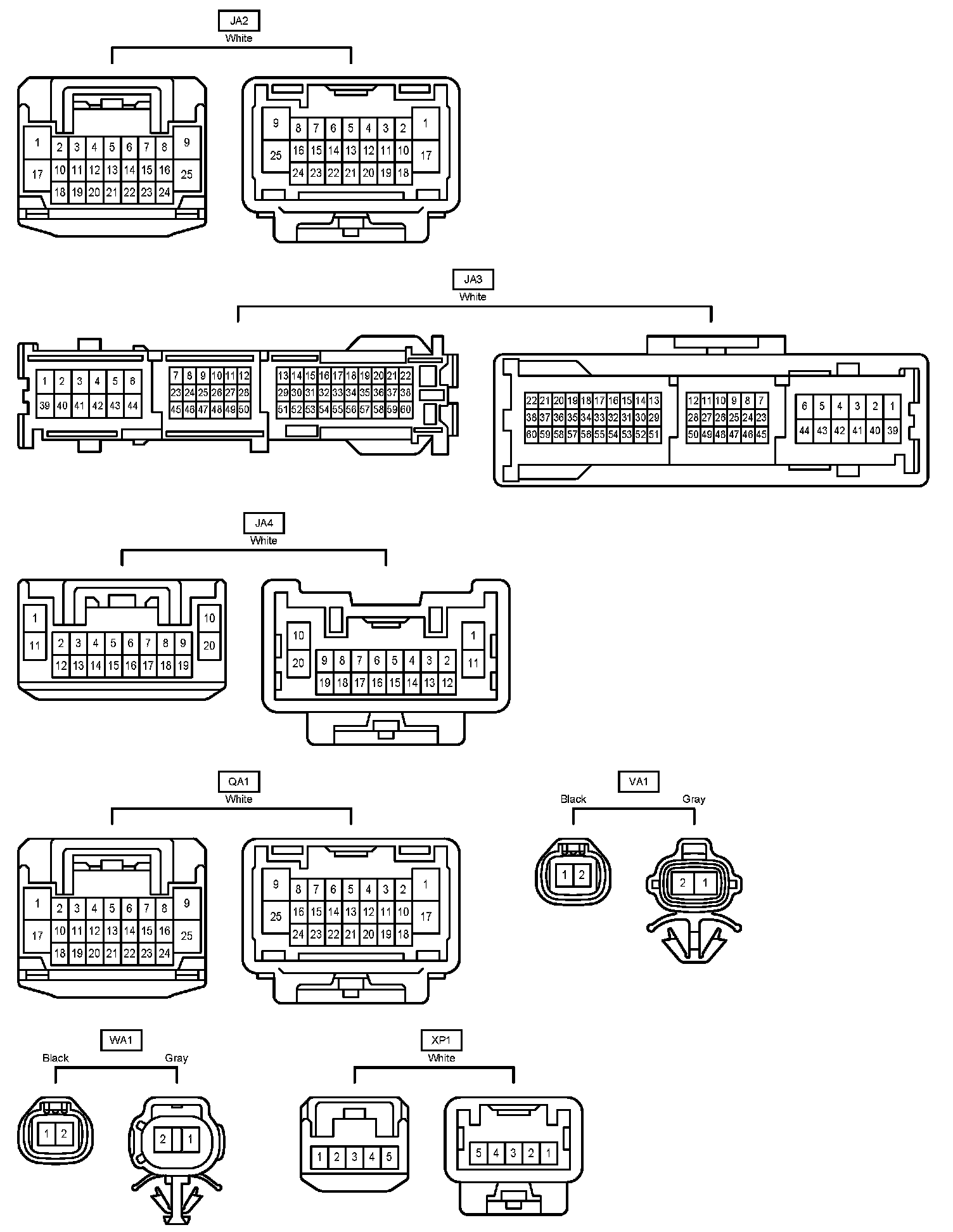

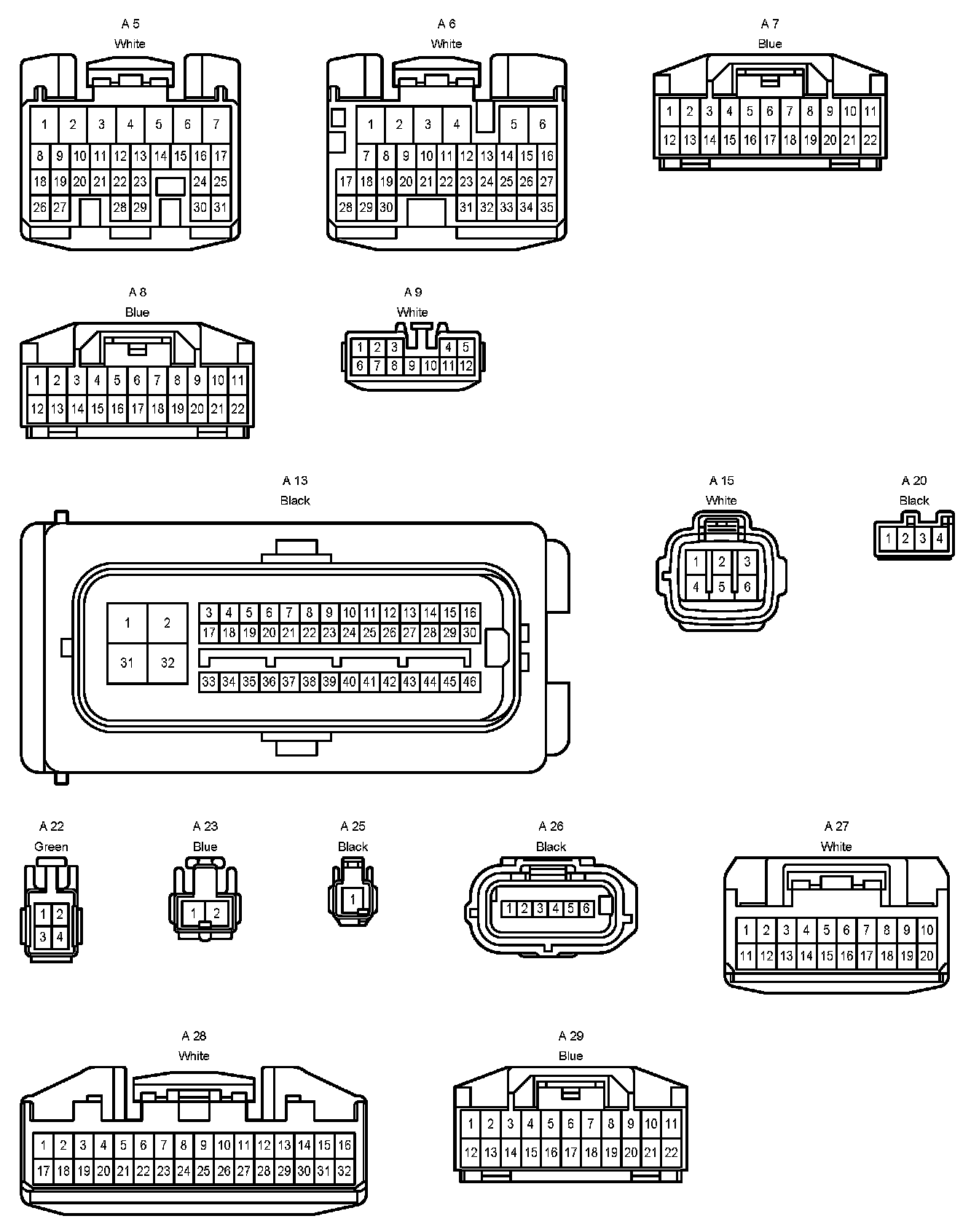

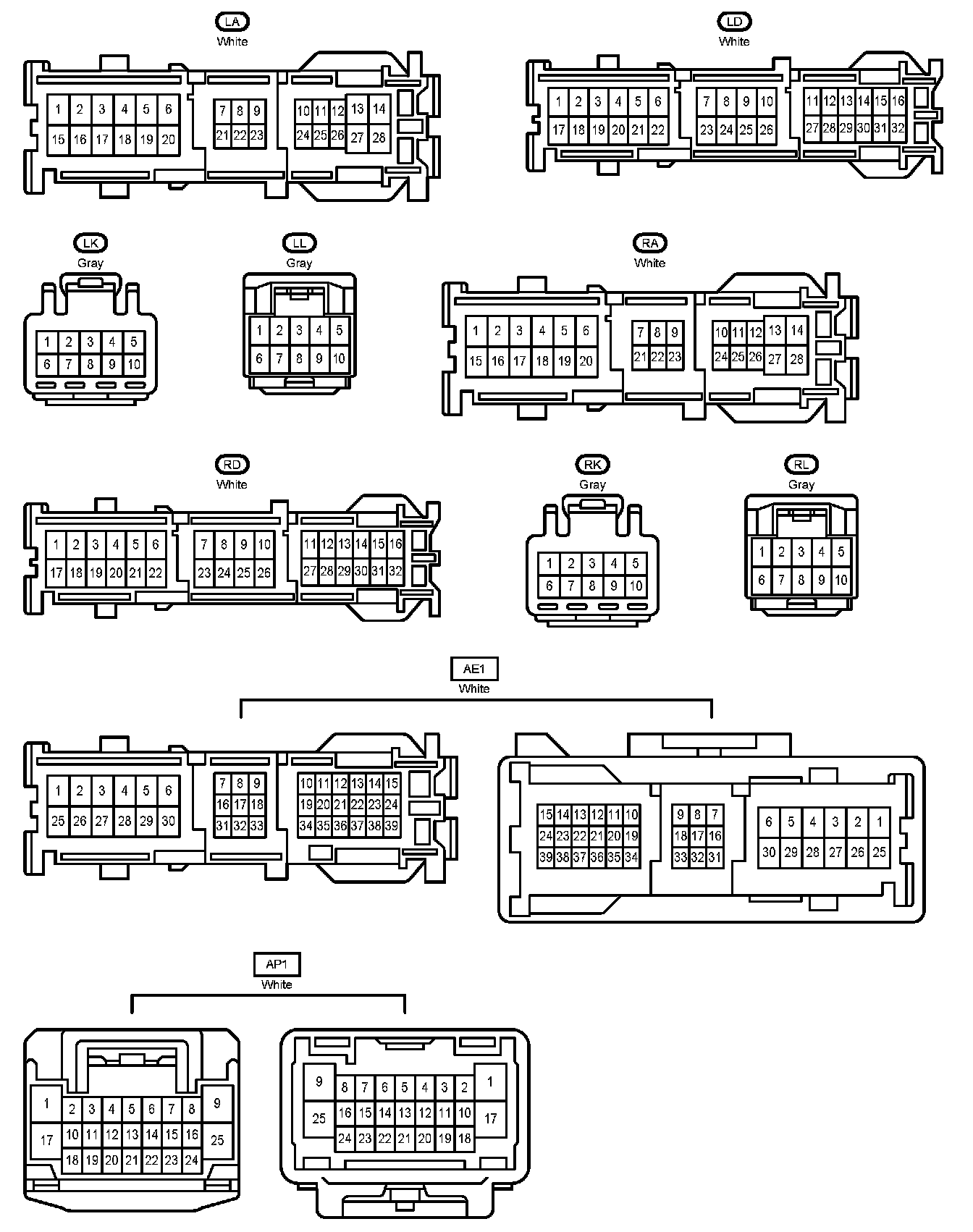

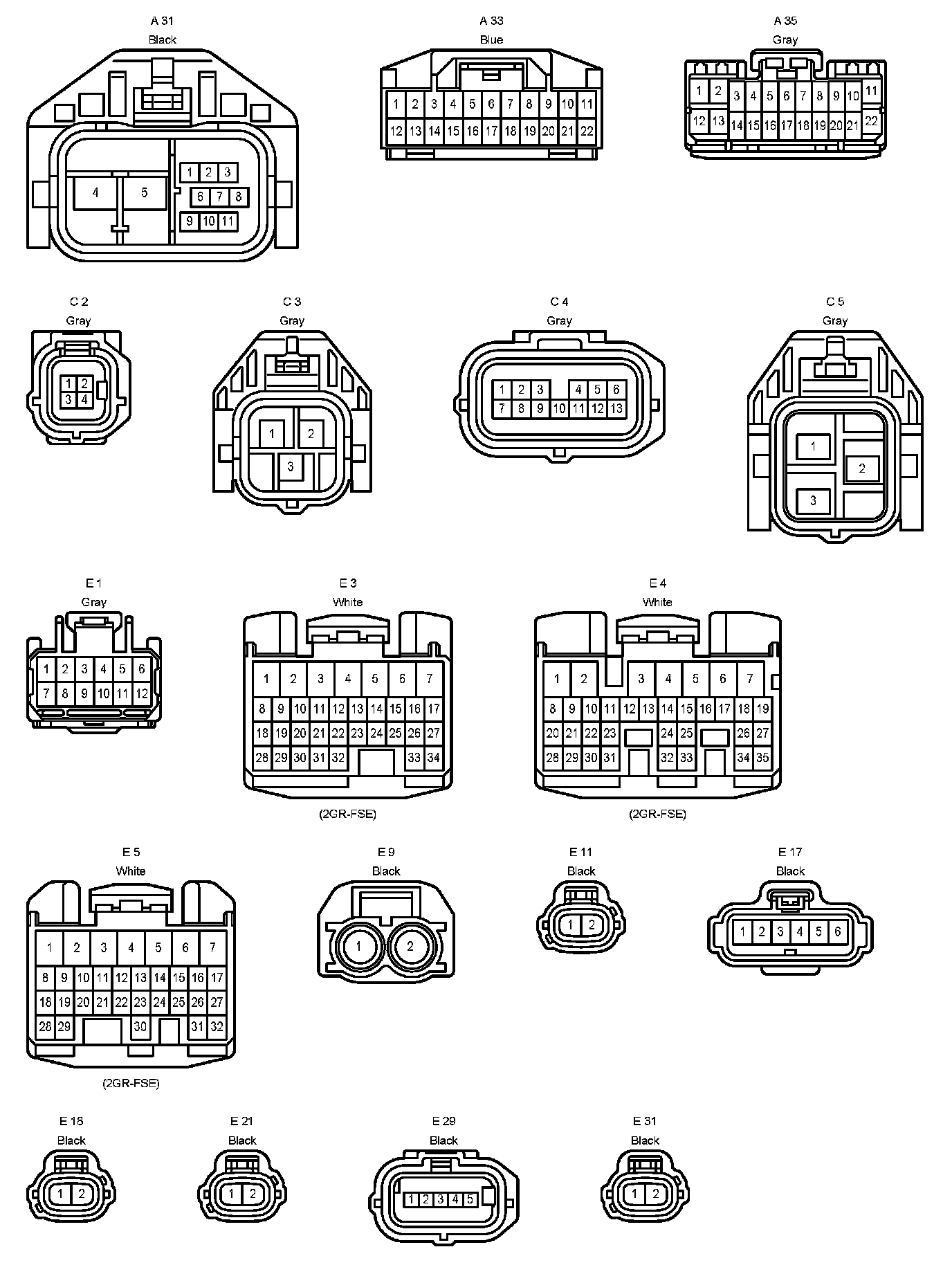

Connector Pin Outs Part 1:

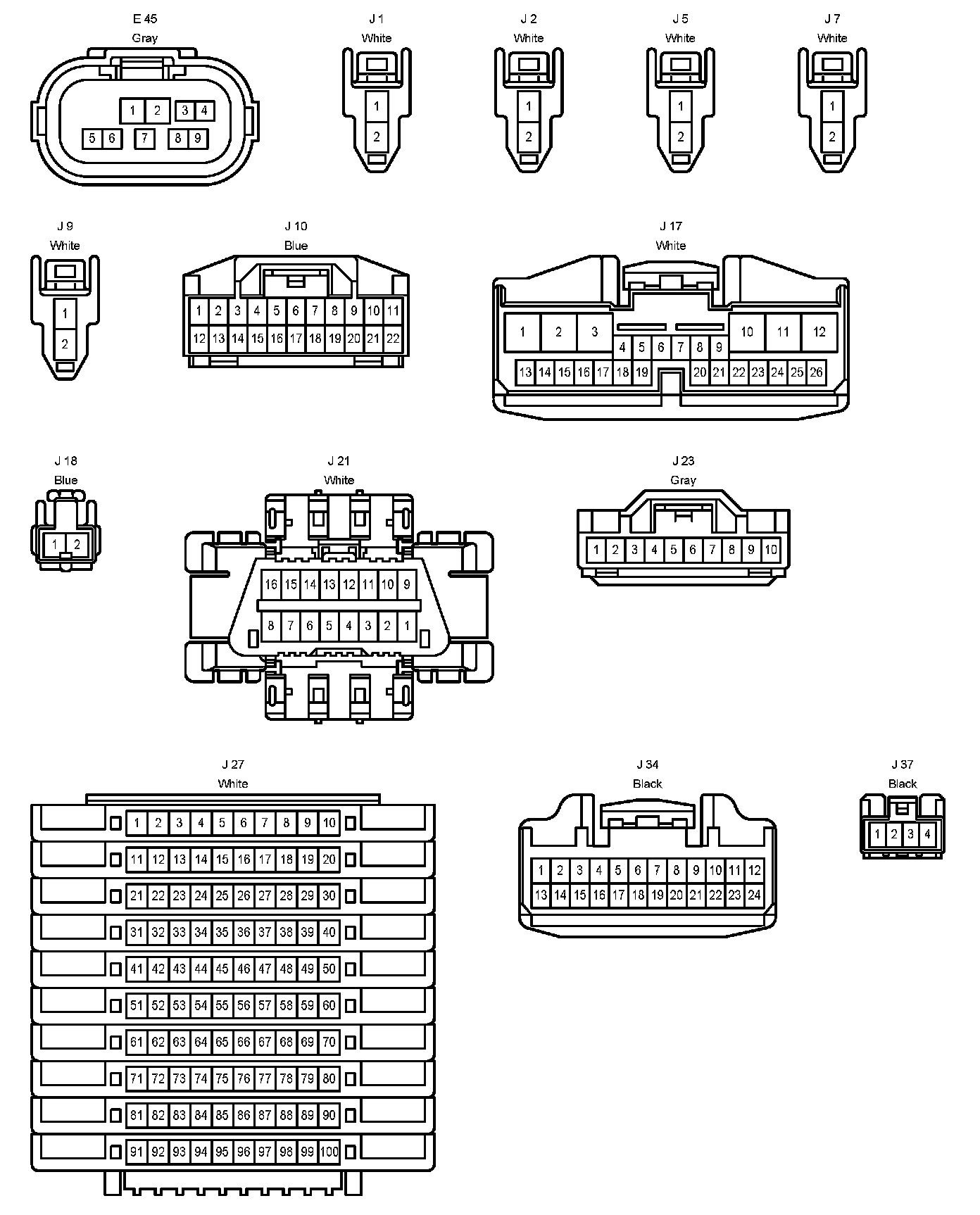

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Connector Pin Outs Part 7:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
