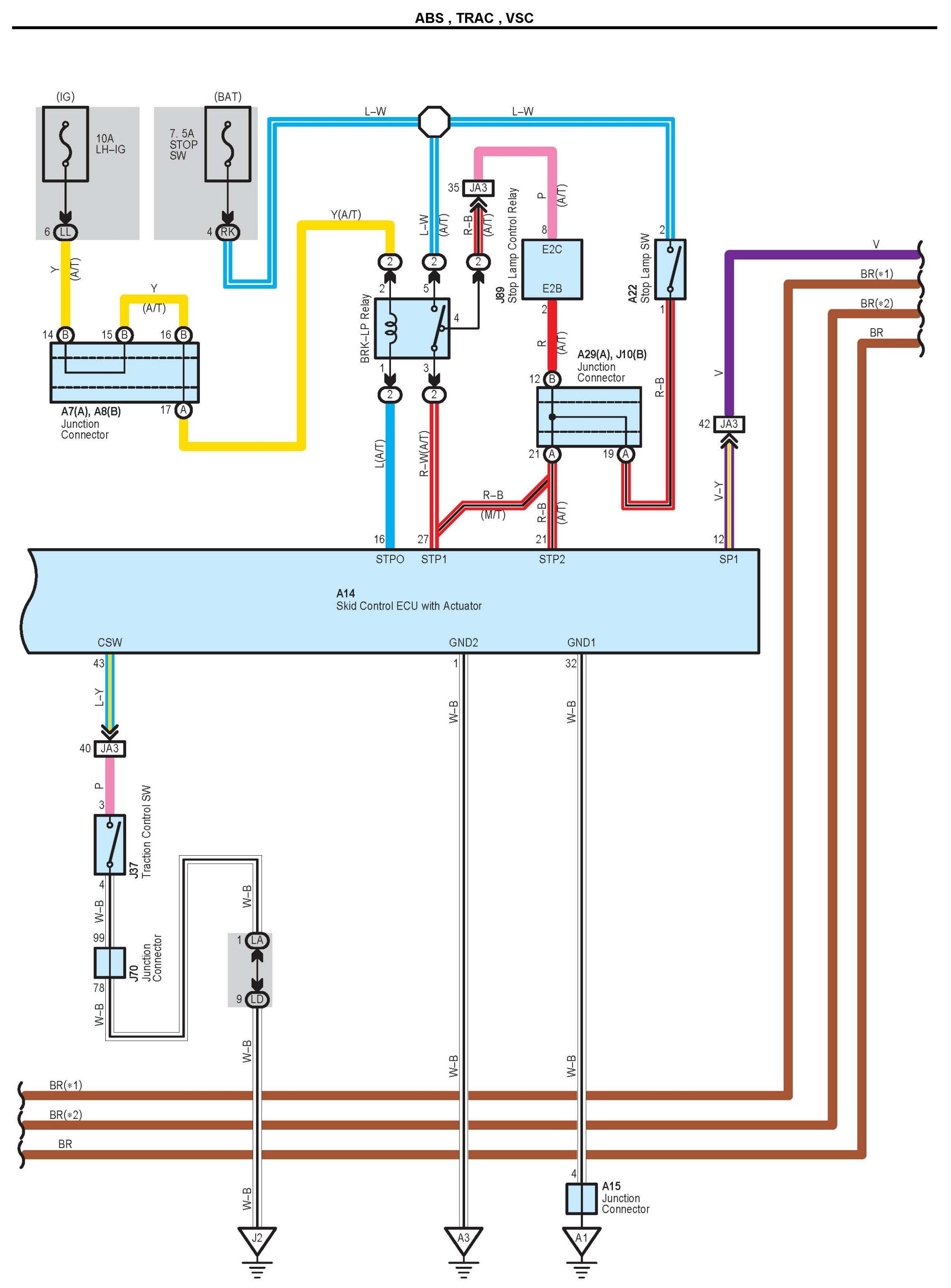

ABS, TRAC, VSC

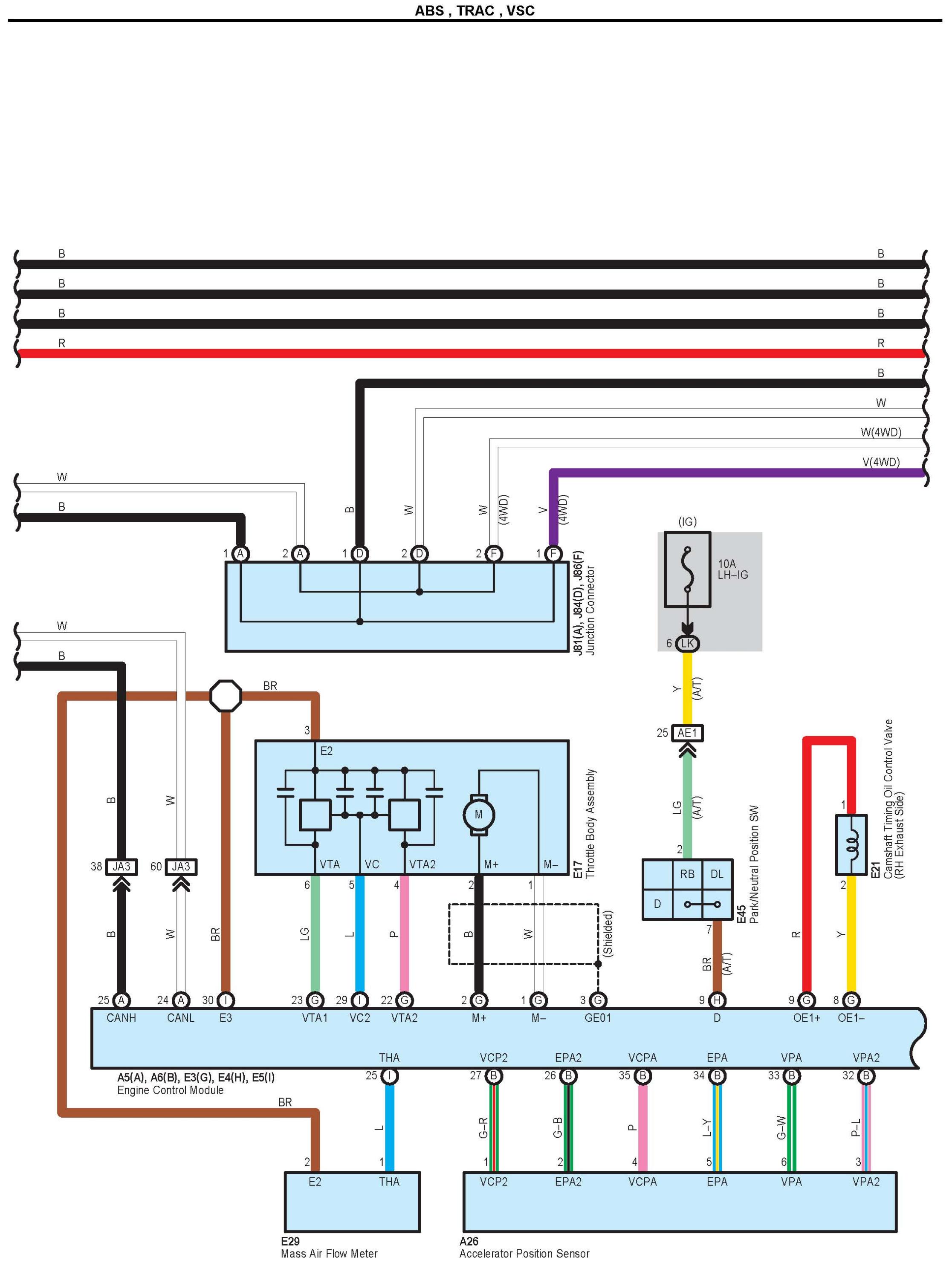

ABS, TRAC, VSC Part 1:

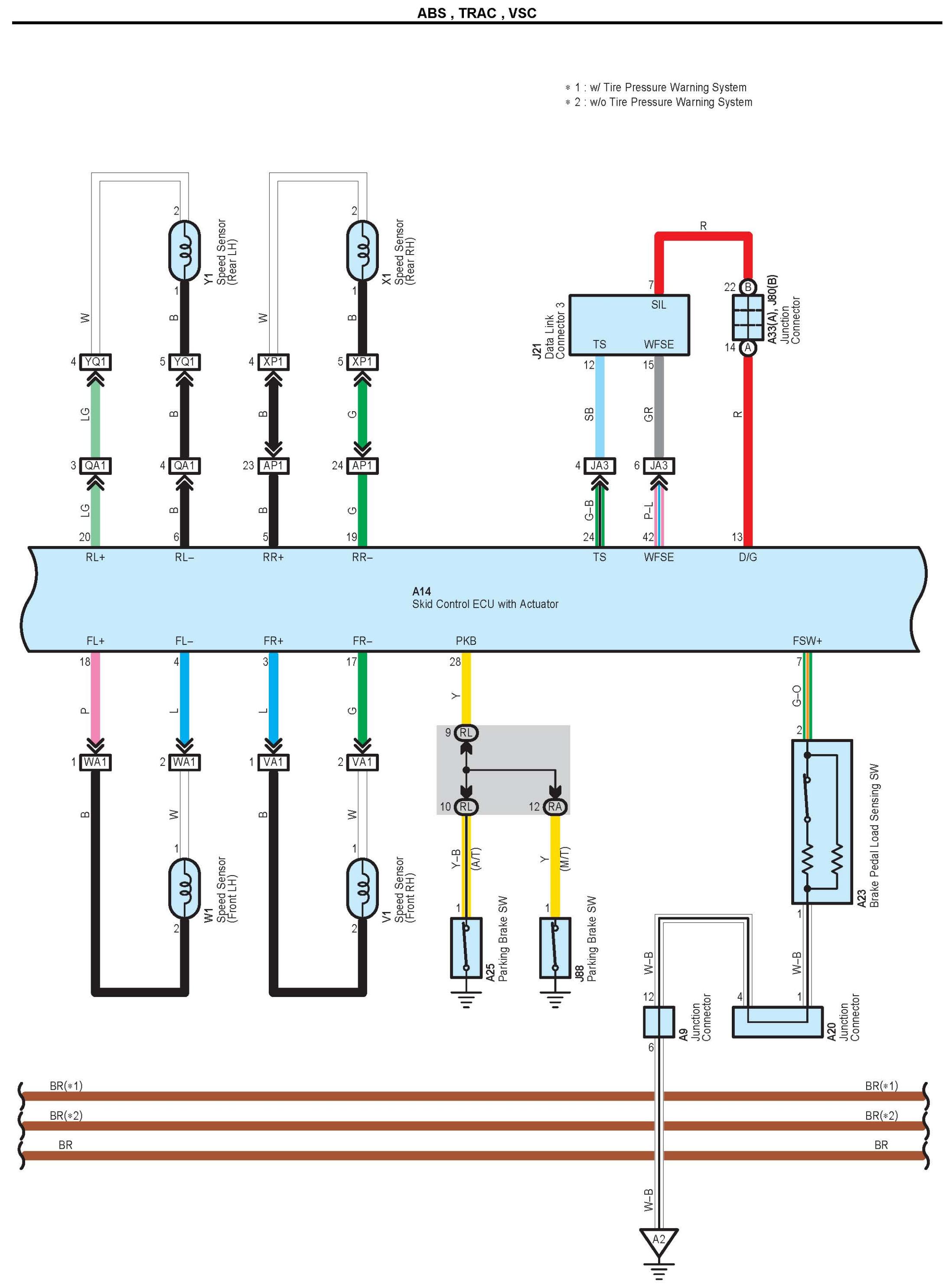

ABS, TRAC, VSC Part 2:

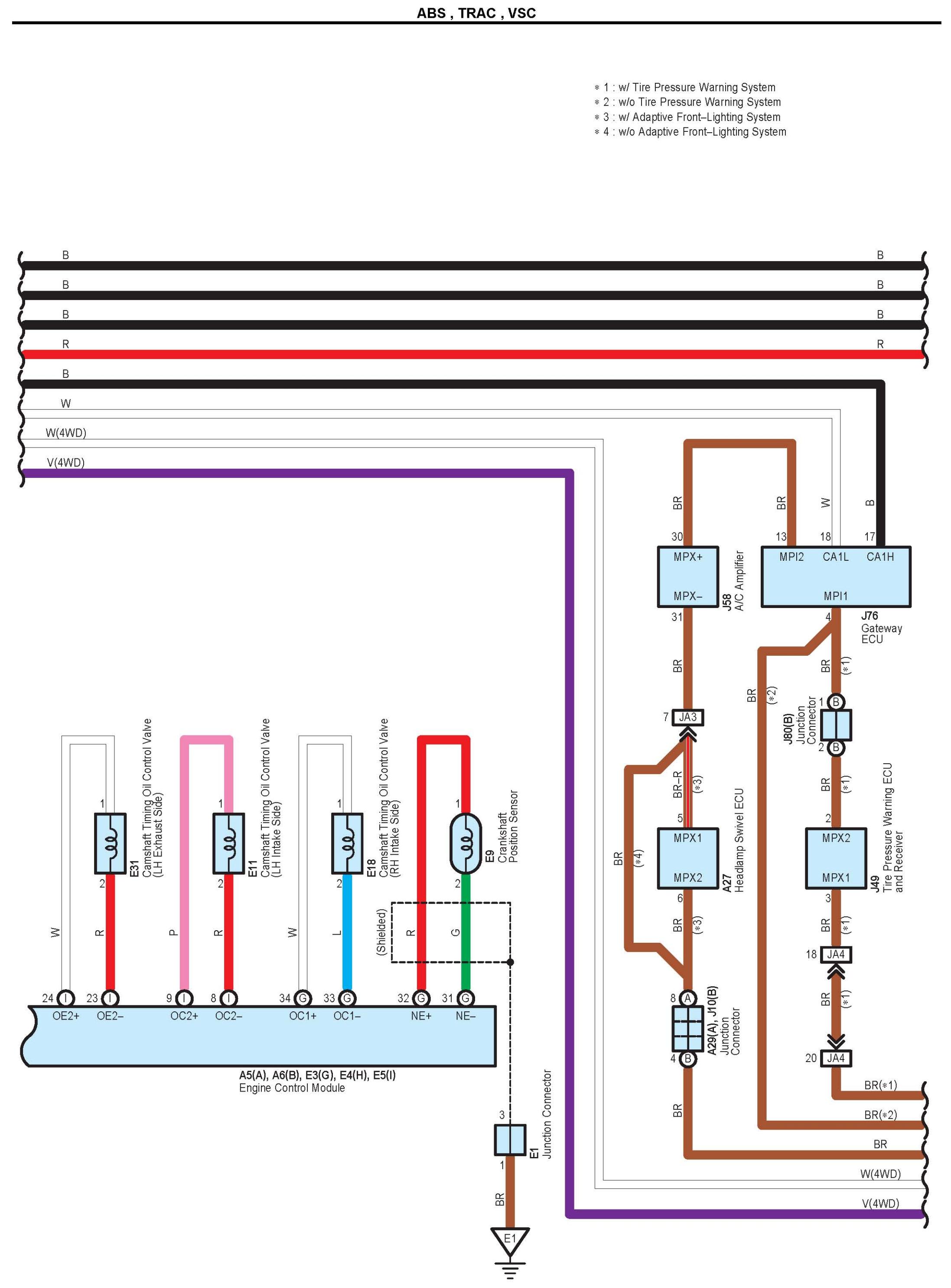

ABS, TRAC, VSC Part 3:

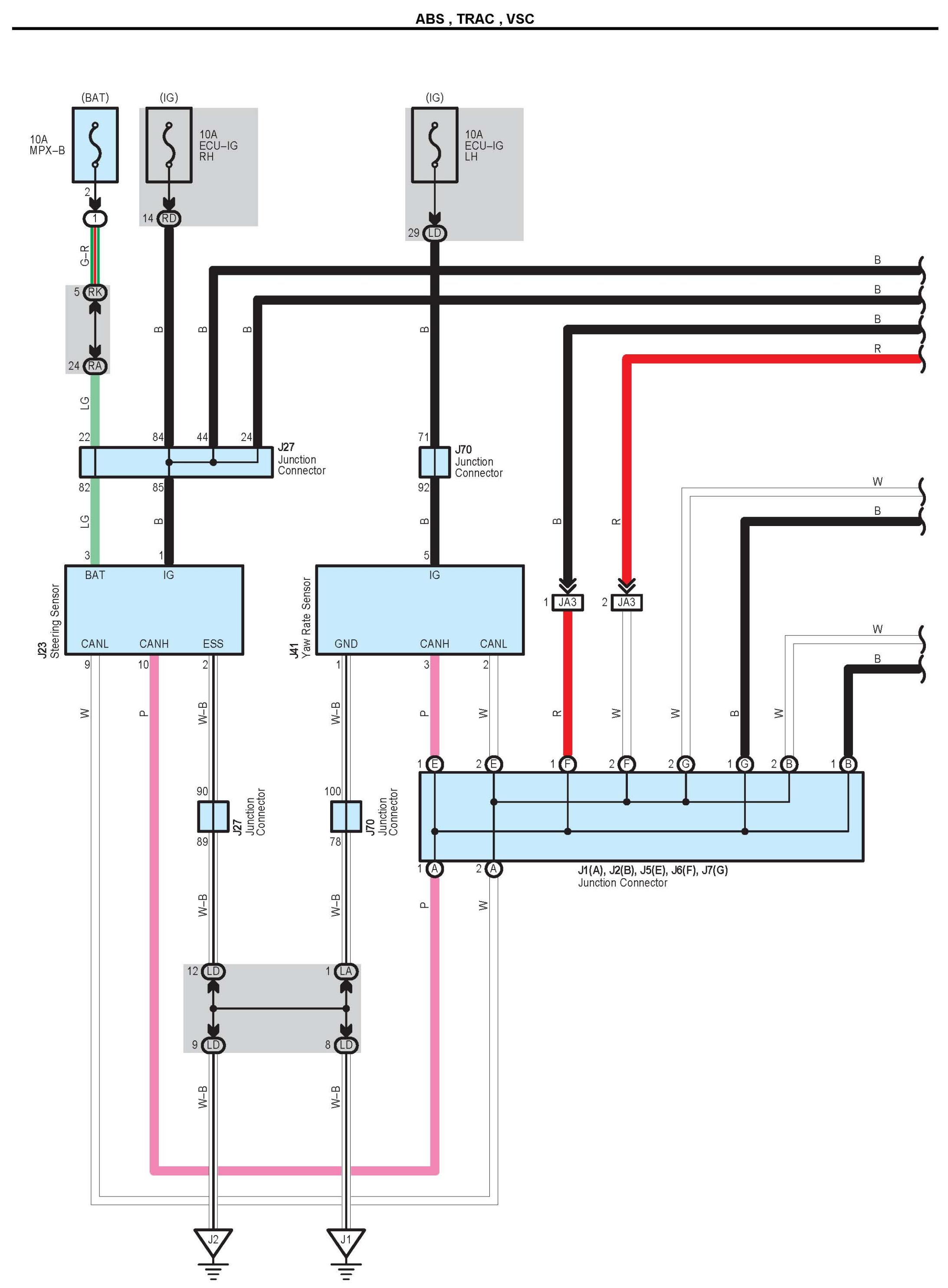

ABS, TRAC, VSC Part 4:

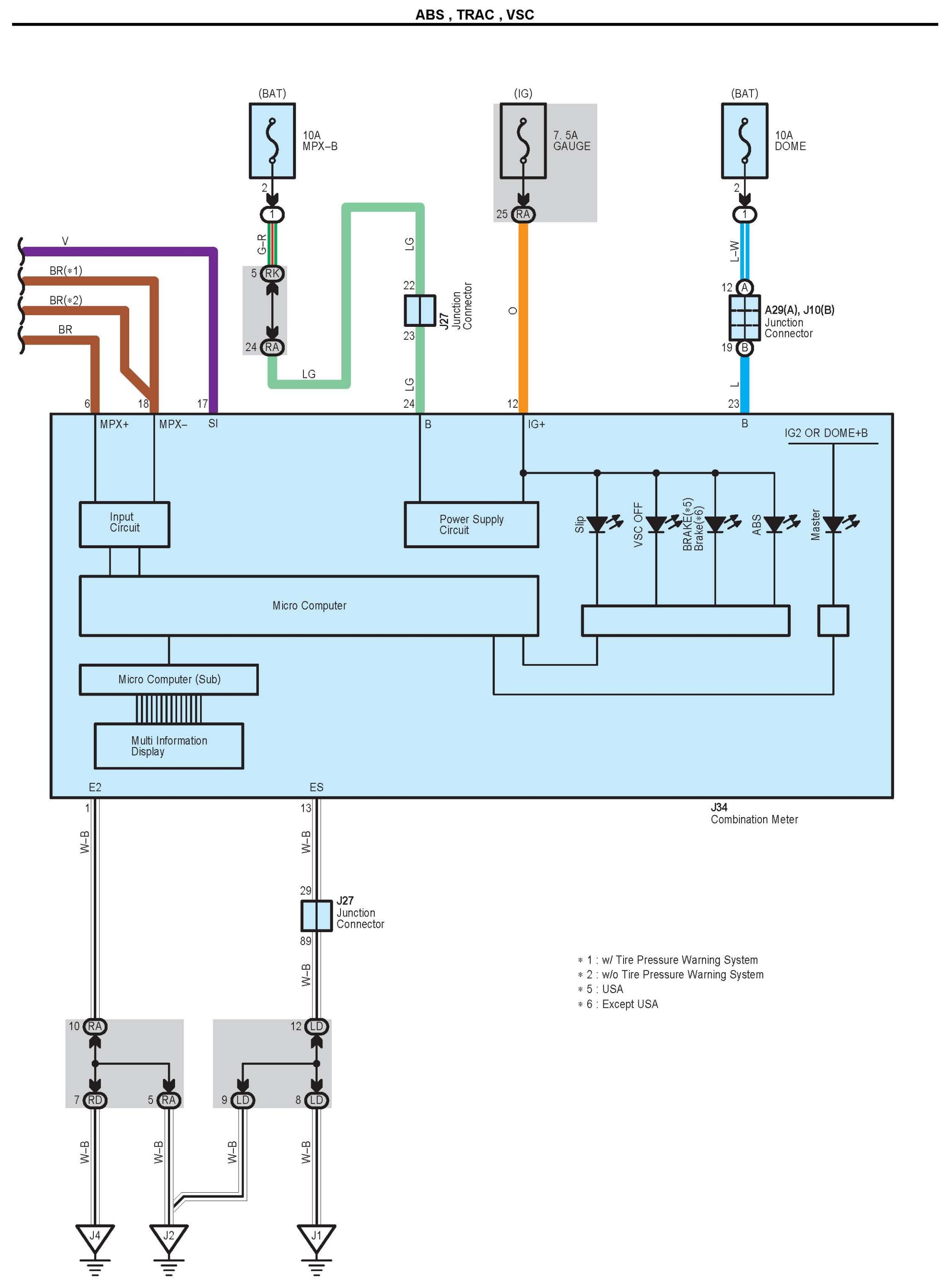

ABS, TRAC, VSC Part 5:

ABS, TRAC, VSC Part 6:

ABS, TRAC, VSC Part 7:

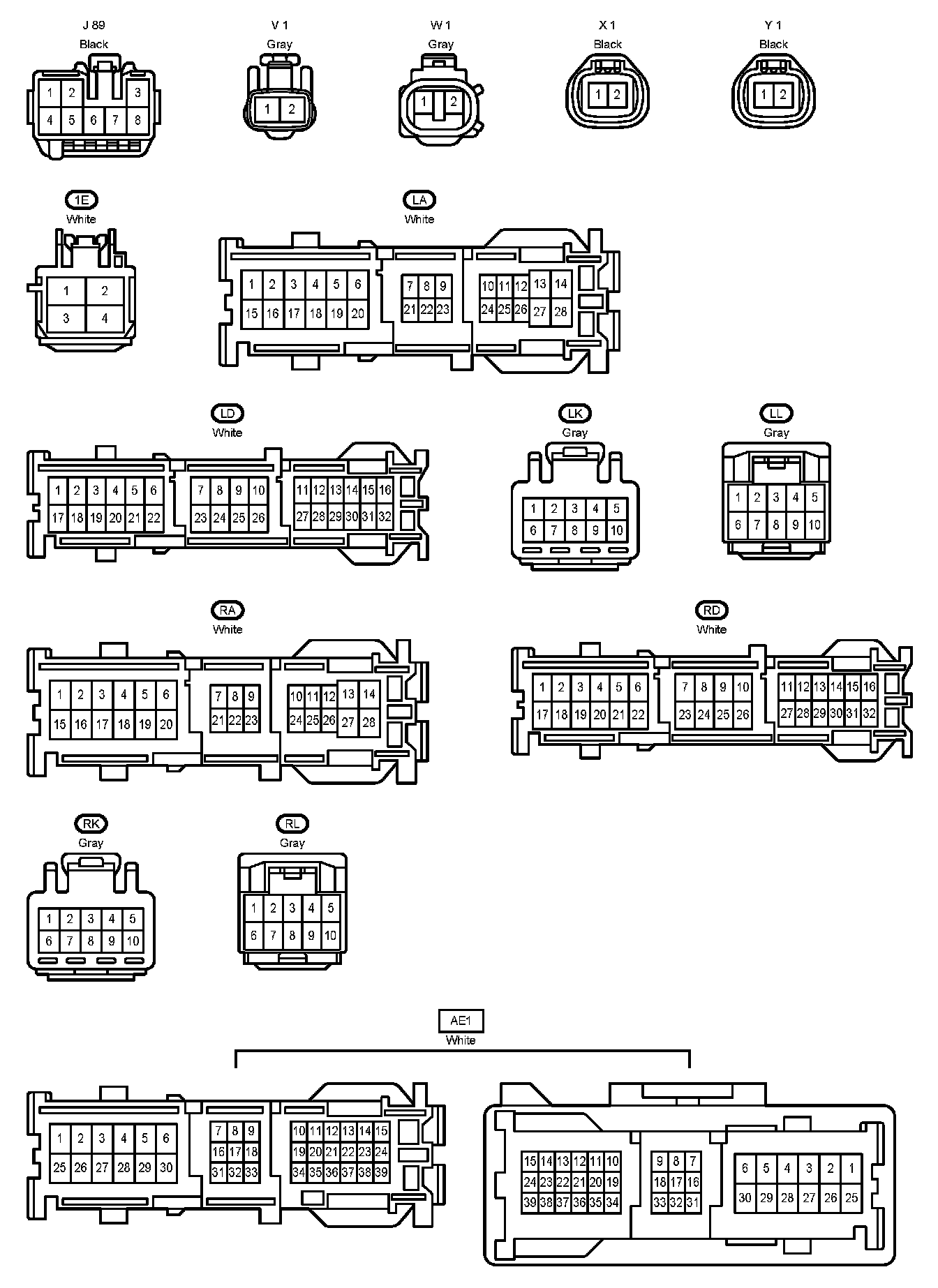

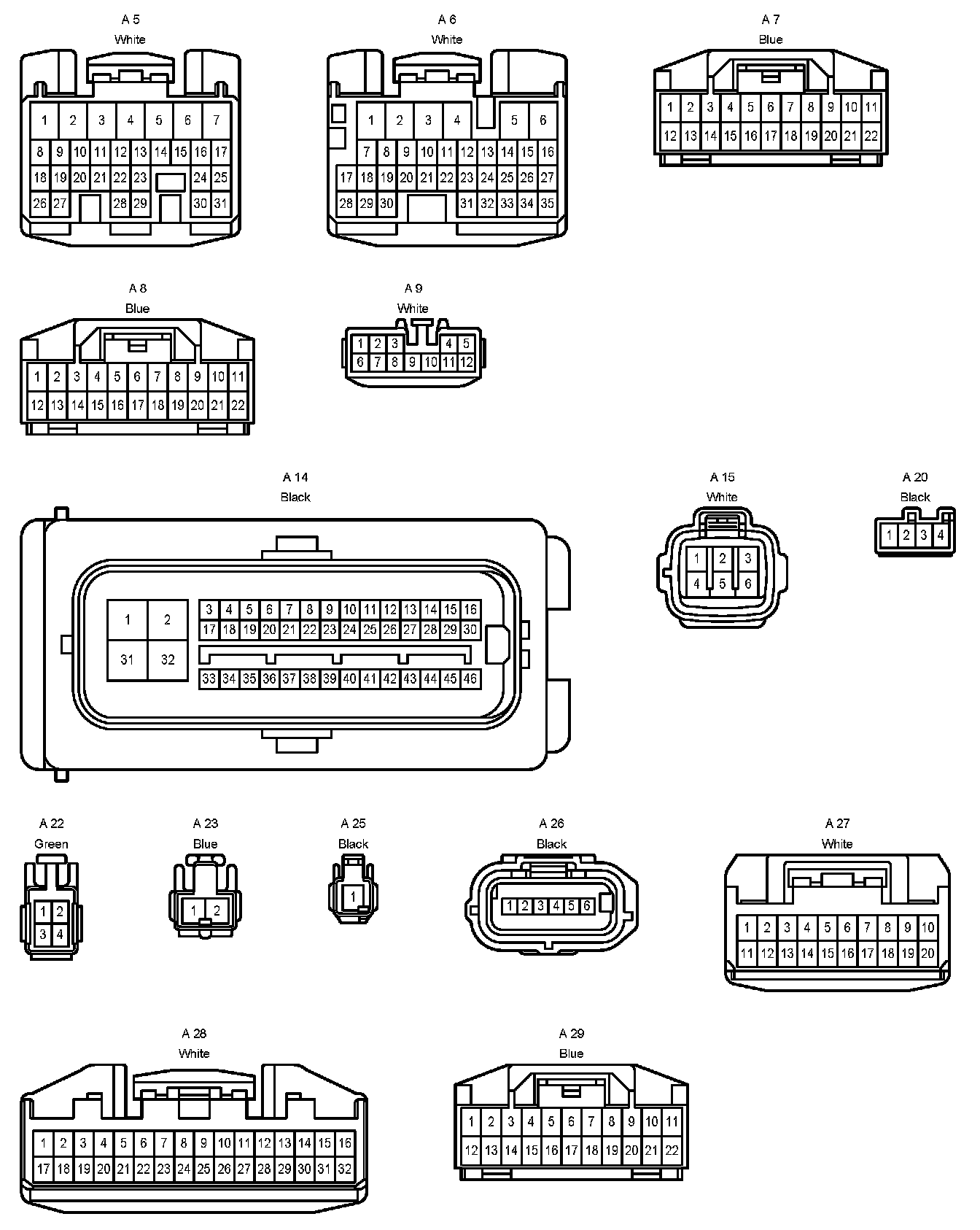

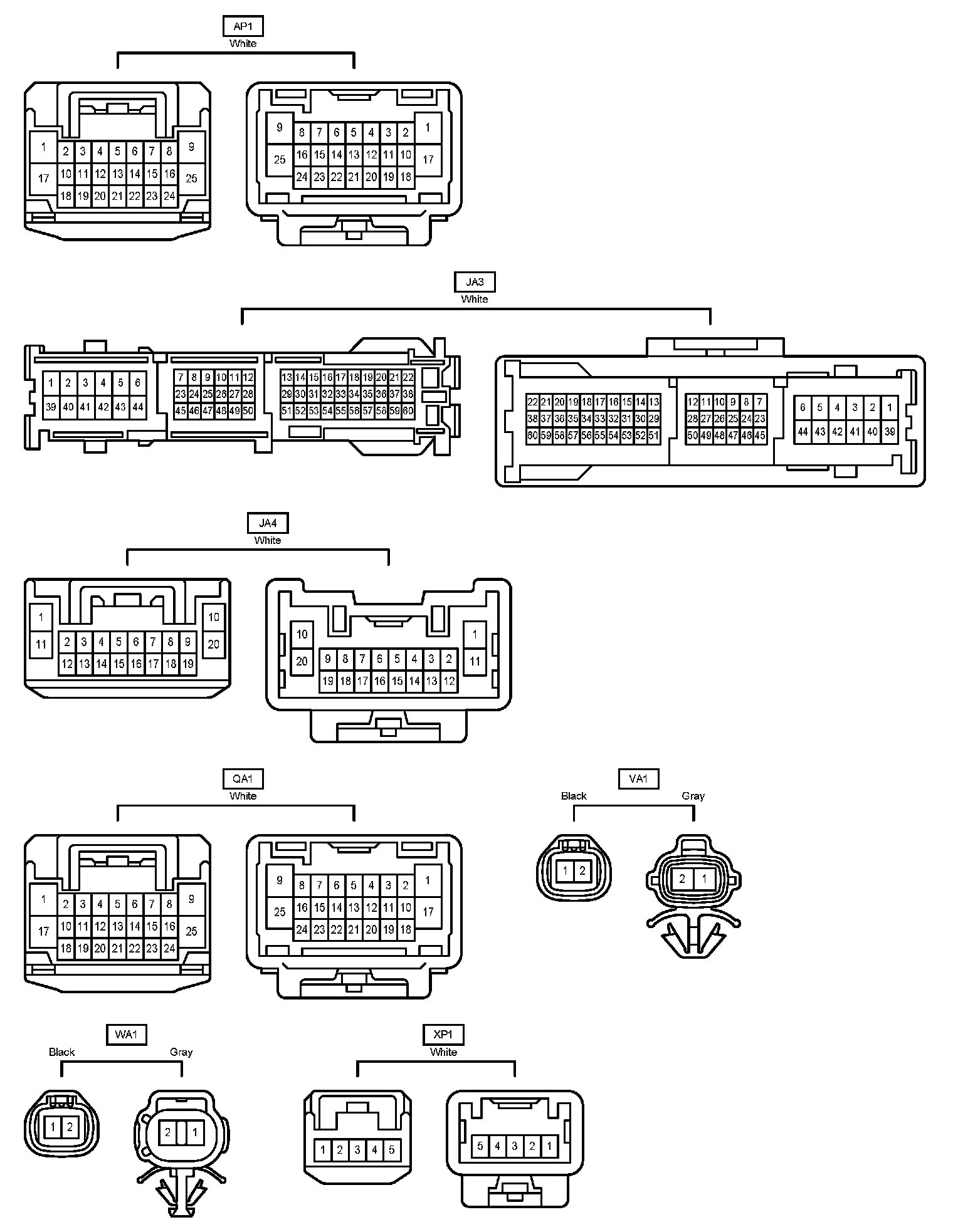

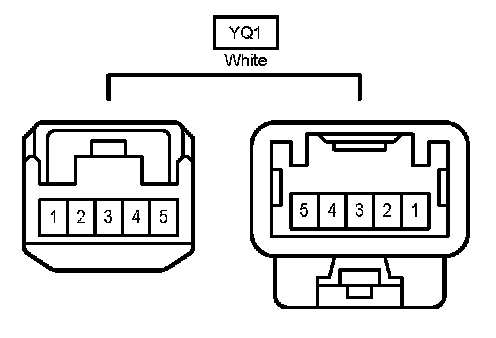

Connector Pin Outs Part 1:

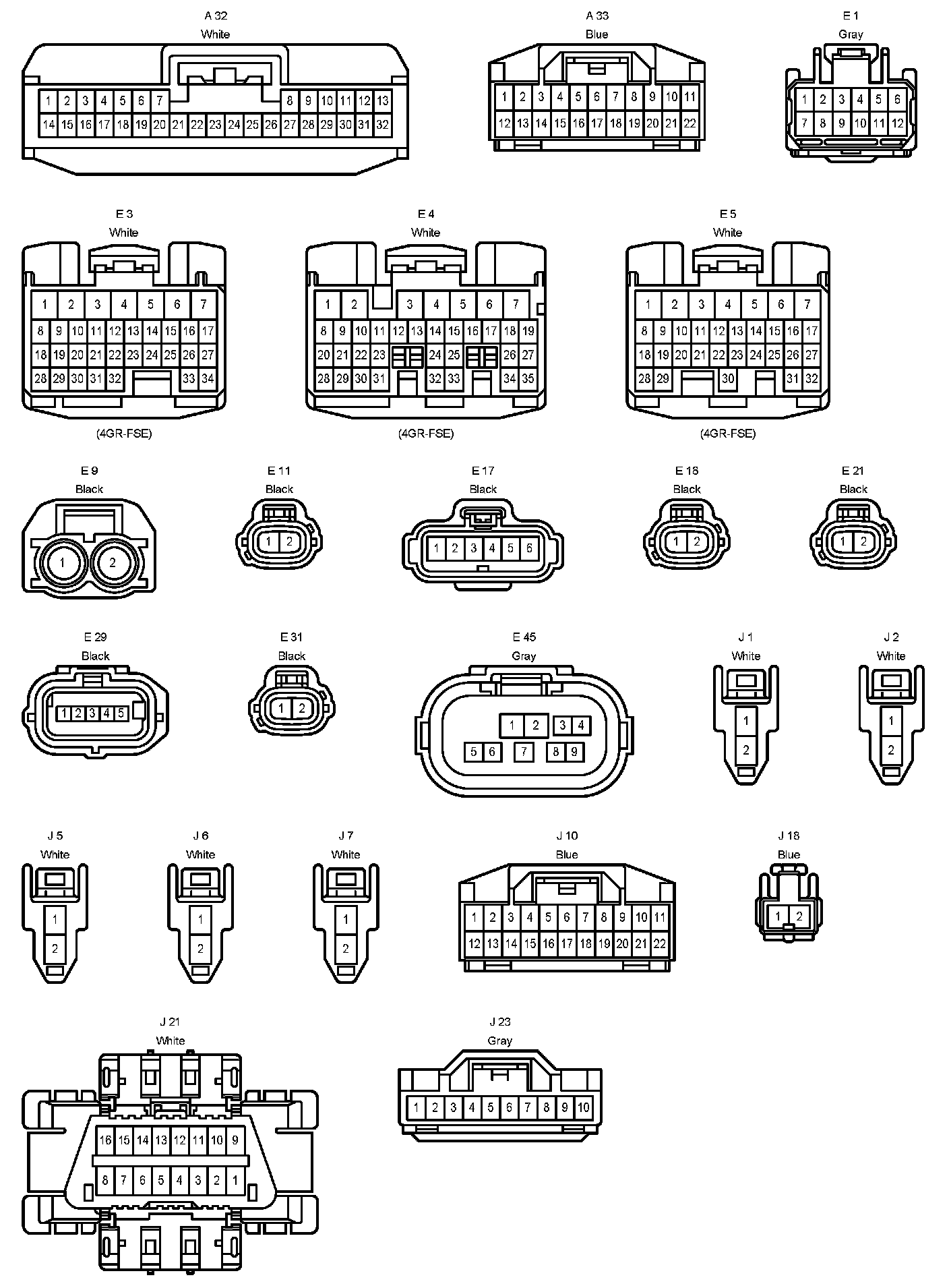

Connector Pin Outs Part 2:

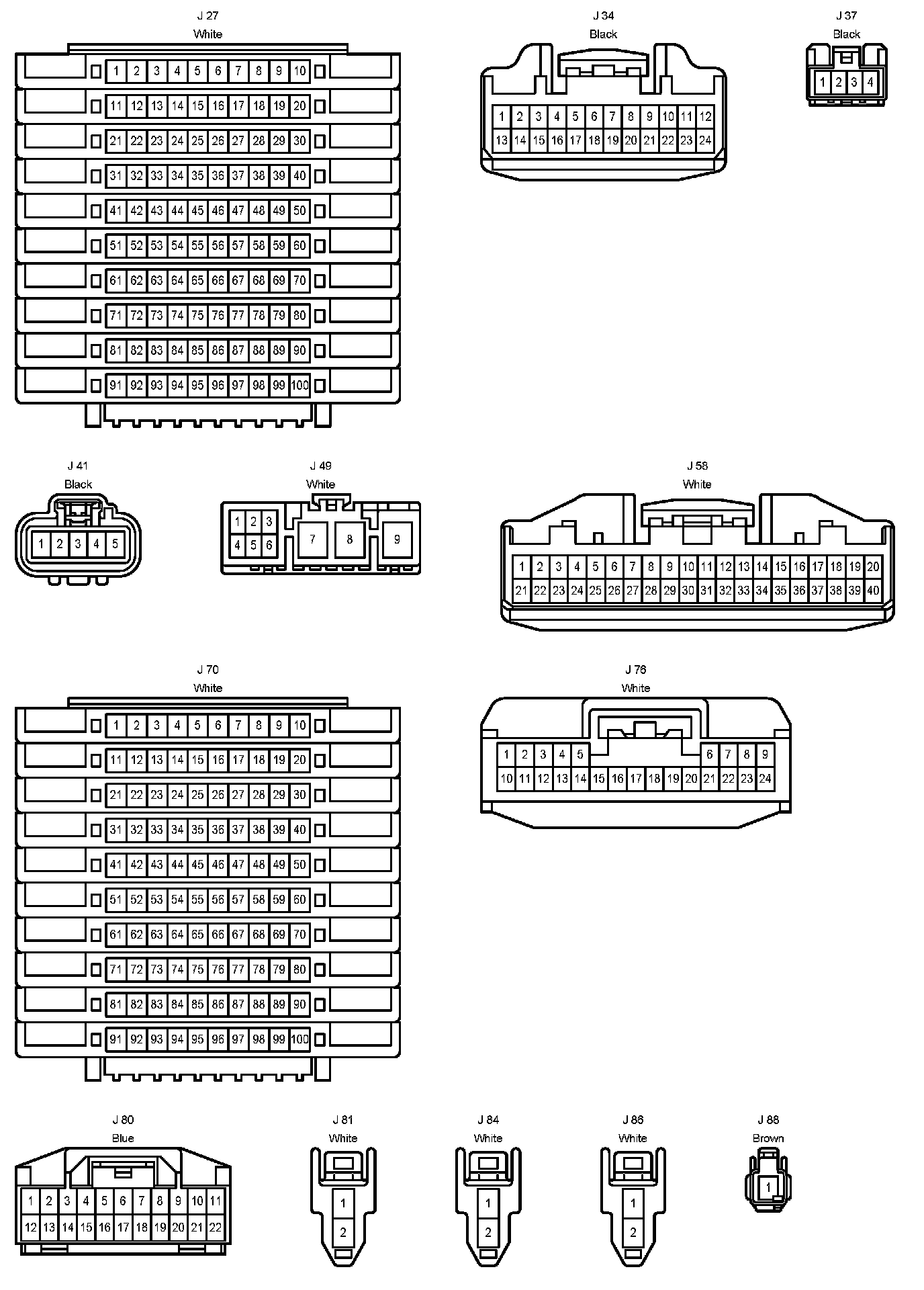

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
