Front Seat Cushion Heater








SEAT: FRONT SEAT CUSHION HEATER:

INSPECTION

1. INSPECT FRONT SEAT CUSHION HEATER

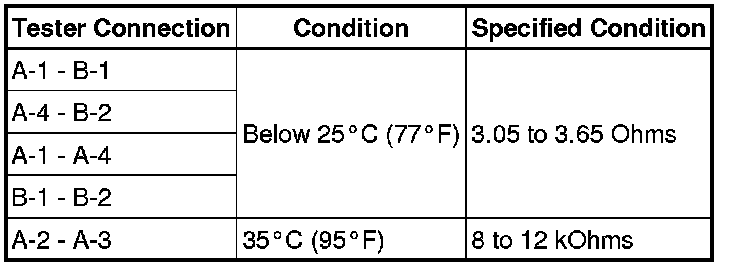

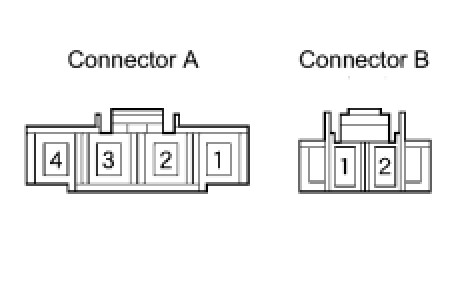

(a) Measure the resistance according to the value(s) in the table below.
Resistance:
