Installation

SEAT: FRONT SEATBACK HEATER:

INSTALLATION

1. INSTALL FRONT SEAT BACK HEATER ASSEMBLY

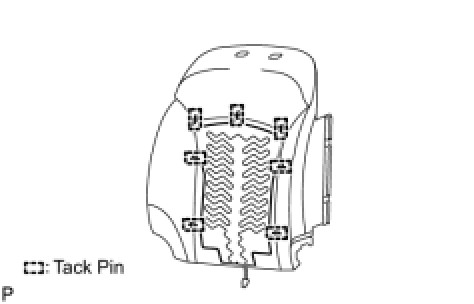

(a) Using a tacker, install the front seatback heater to the end of the seat cover with the 7 tack pins.
2. INSTALL FRONT SEPARATE TYPE SEAT BACK COVER (for Manual Seat) Reassembly

3. INSTALL FRONT SEATBACK COVER WITH PAD (for Manual Seat)
4. INSTALL FRONT SEAT HEADREST SUPPORT (for Manual Seat)
5. INSTALL FRONT SEAT HEADREST SUPPORT (for Manual Seat)
6. INSTALL FRONT INNER SEAT CUSHION SHIELD LH (for Manual Seat)
7. INSTALL FRONT LOWER SEAT CUSHION SHIELD RH (for Manual Seat)
8. INSTALL FRONT SEAT CUSHION SHIELD LH (for Manual Seat)
9. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH (for Manual Seat)
10. INSTALL NO.2 VERTICAL ADJUSTING HANDLE (for Manual Seat)
11. INSTALL VERTICAL SEAT ADJUSTER KNOB CAP (for Manual Seat)
12. INSTALL VERTICAL SEAT ADJUSTER KNOB LH (for Manual Seat)
13. INSTALL FRONT INNER SEAT BELT ASSEMBLY (for Manual Seat) Installation

14. INSTALL FRONT SEPARATE TYPE SEAT BACK COVER (for Power Seat) Reassembly

15. INSTALL FRONT SEPARATE TYPE SEATBACK ASSEMBLY (for Power Seat) Reassembly

16. INSTALL FRONT SEPARATE TYPE SEATBACK ASSEMBLY (for Power Seat)
17. INSTALL FRONT SEAT HEADREST SUPPORT (for Power Seat)
18. INSTALL FRONT SEAT HEADREST SUPPORT (for Power Seat)
19. INSTALL FRONT SEAT BACK BOARD SUB-ASSEMBLY (for Power Seat)
20. INSTALL FRONT INNER SEAT CUSHION SHIELD LH (for Power Seat)
21. INSTALL FRONT INNER SEAT CUSHION SHIELD NO.1 LH (for Power Seat)
22. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB (for Power Seat)
23. INSTALL RECLINING POWER SEAT SWITCH KNOB (for Power Seat)
24. INSTALL FRONT INNER SEAT BELT ASSEMBLY (for Power Seat) Installation

25. INSTALL FRONT SEAT ASSEMBLY (for Power Seat) Installation

26. INSTALL REAR INNER SEAT TRACK COVER (for Power Seat)
27. INSTALL REAR OUTER SEAT TRACK COVER (for Power Seat)
28. INSTALL FRONT INNER SEAT TRACK BRACKET COVER (for Power Seat)
29. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER (for Power Seat)
30. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
31. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat) Installation
