Climate Control Seat, Seat Heater [w/ Climate Control Seat]

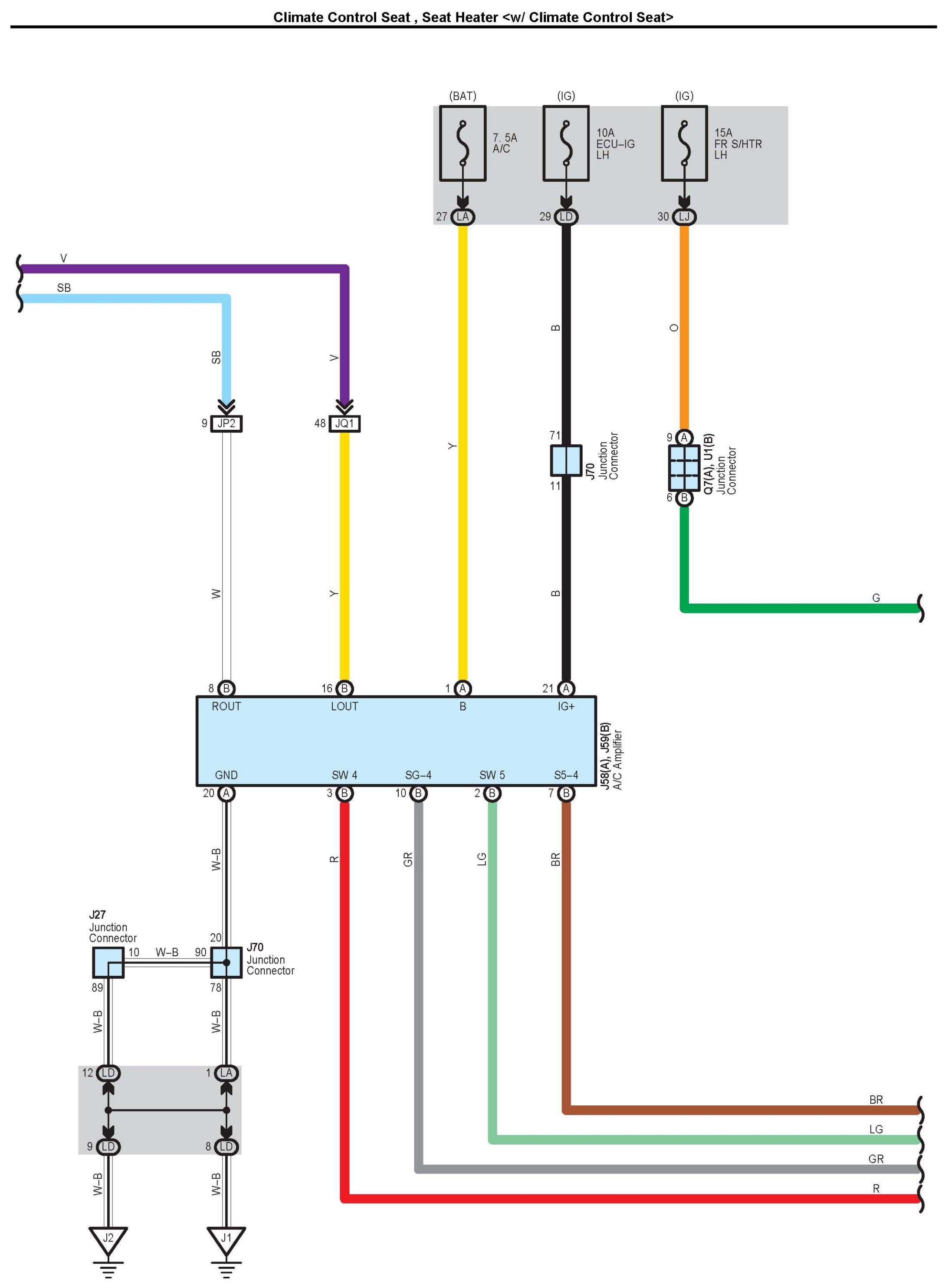

Climate Control Seat, Seat Heater <w/ Climate Control Seat> Part 1:

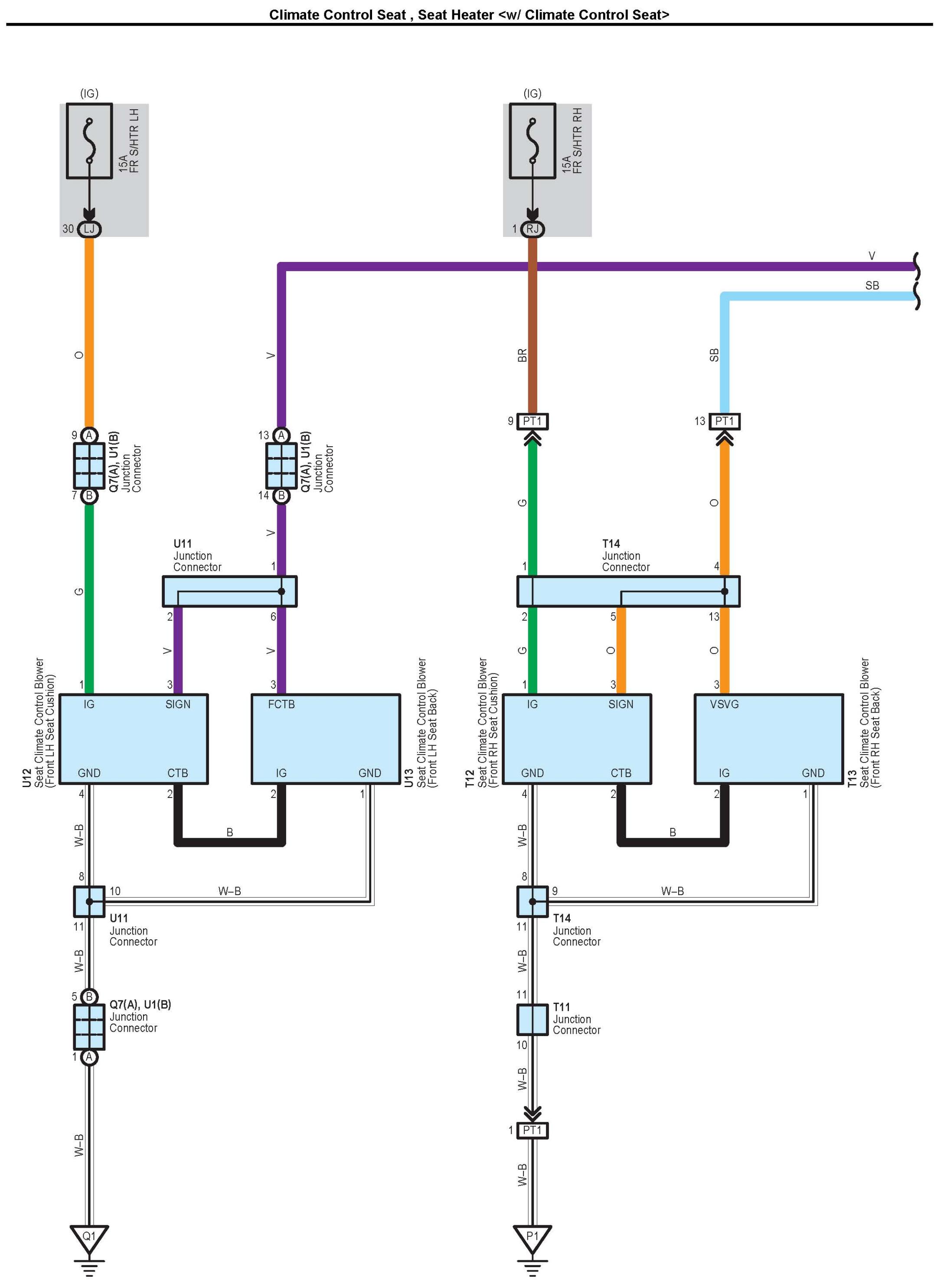

Climate Control Seat, Seat Heater <w/ Climate Control Seat> Part 2:

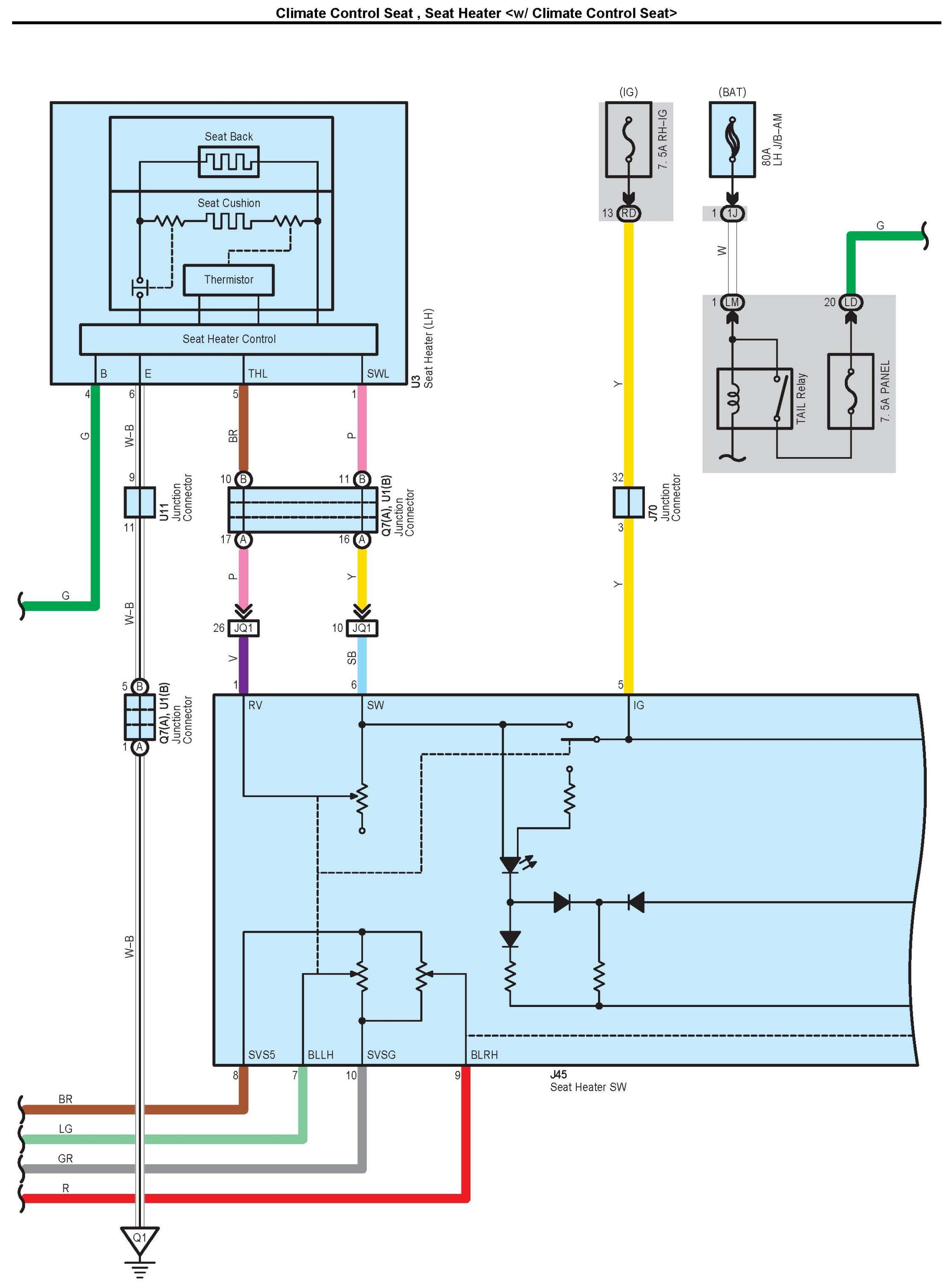

Climate Control Seat, Seat Heater <w/ Climate Control Seat> Part 3:

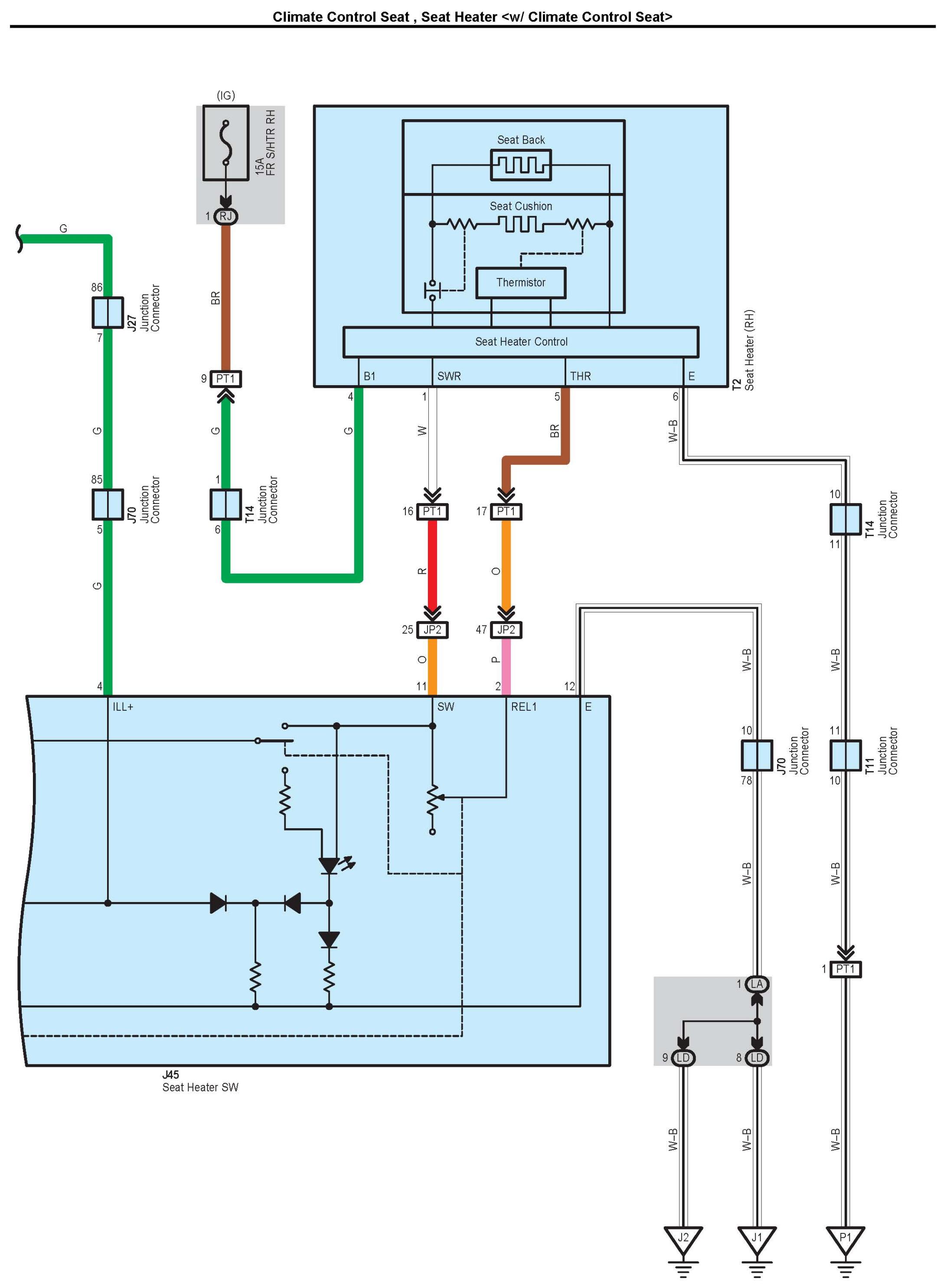

Climate Control Seat, Seat Heater <w/ Climate Control Seat> Part 4:

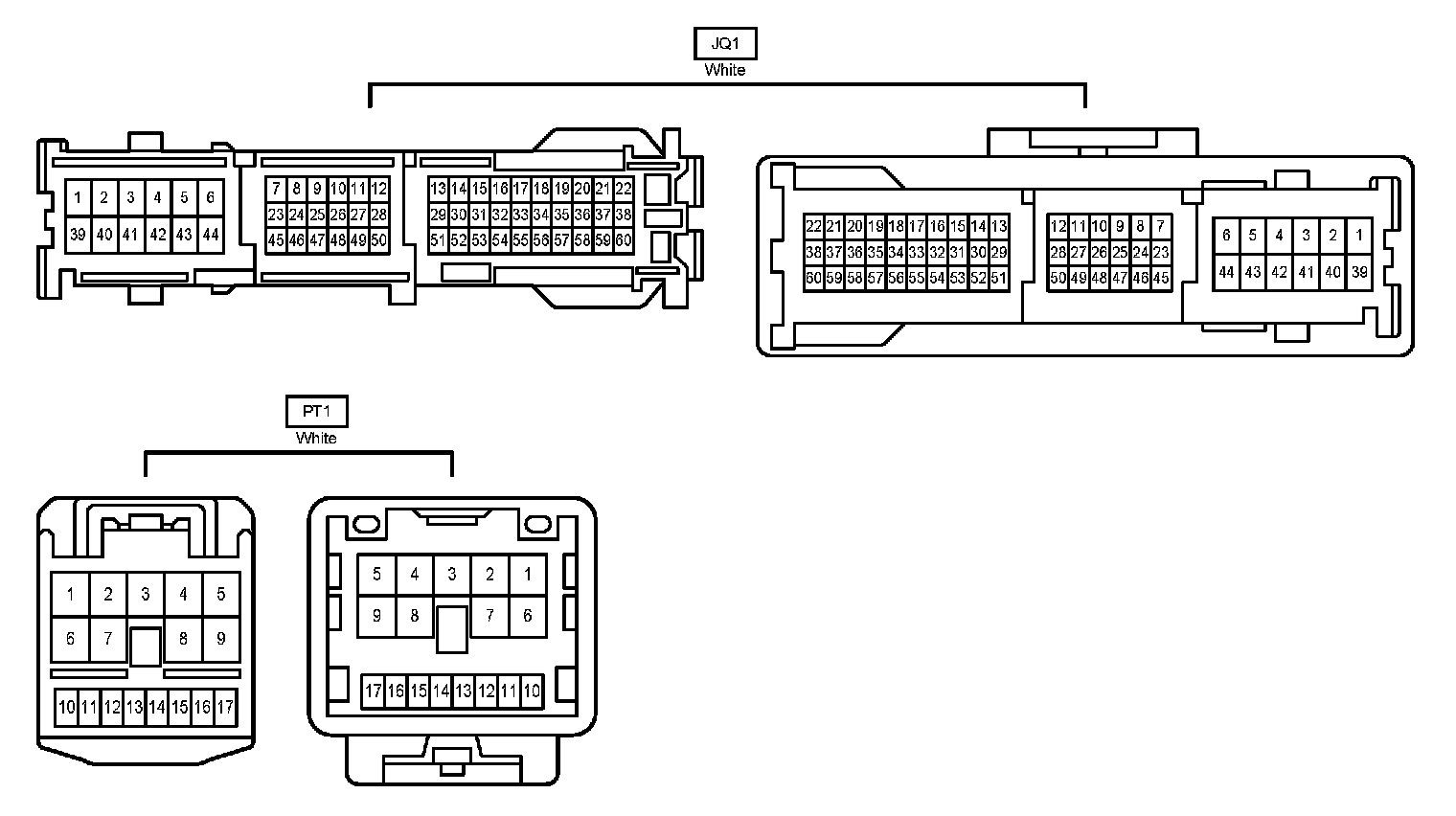

Connector Pin Outs Part 1:

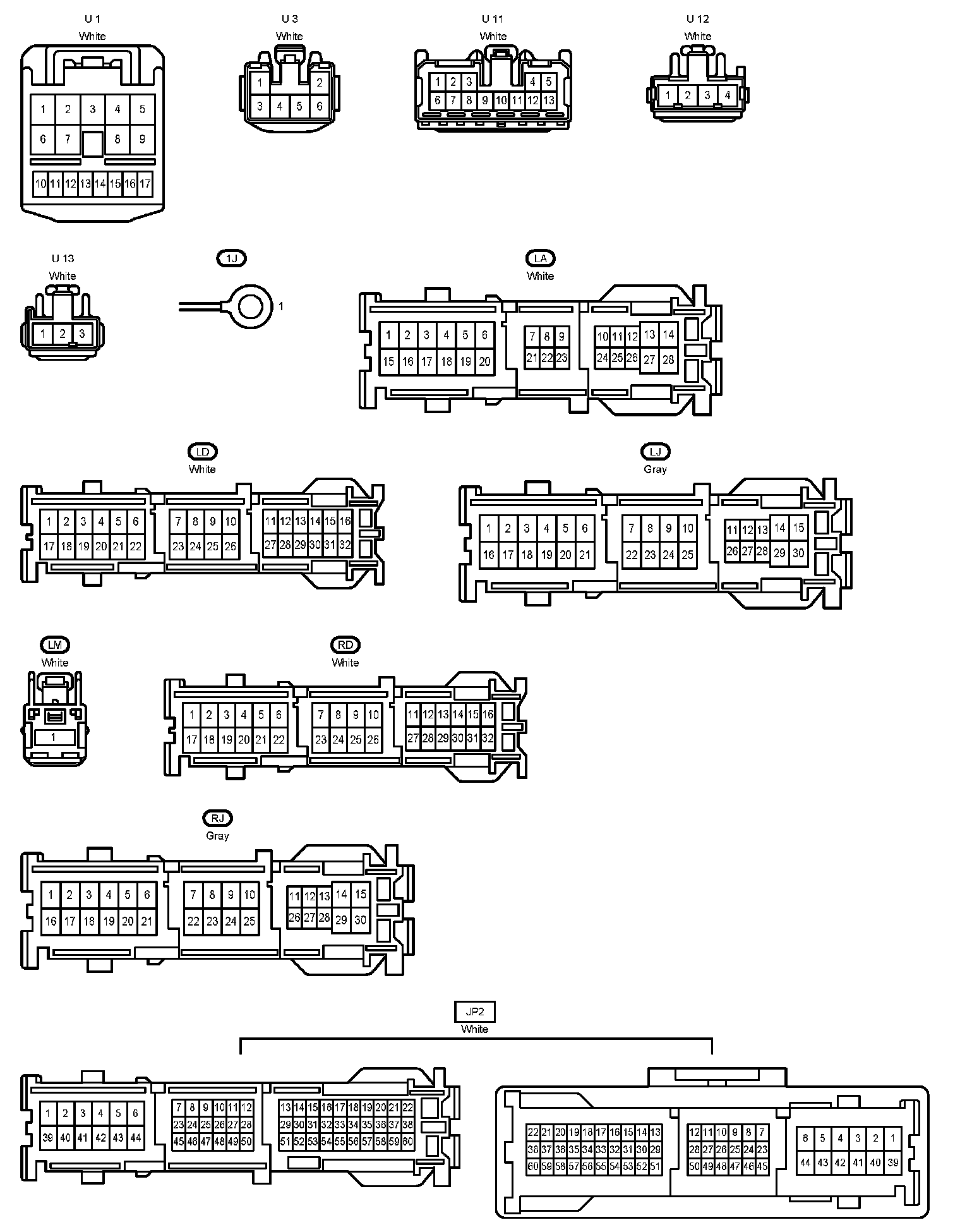

Connector Pin Outs Part 2:

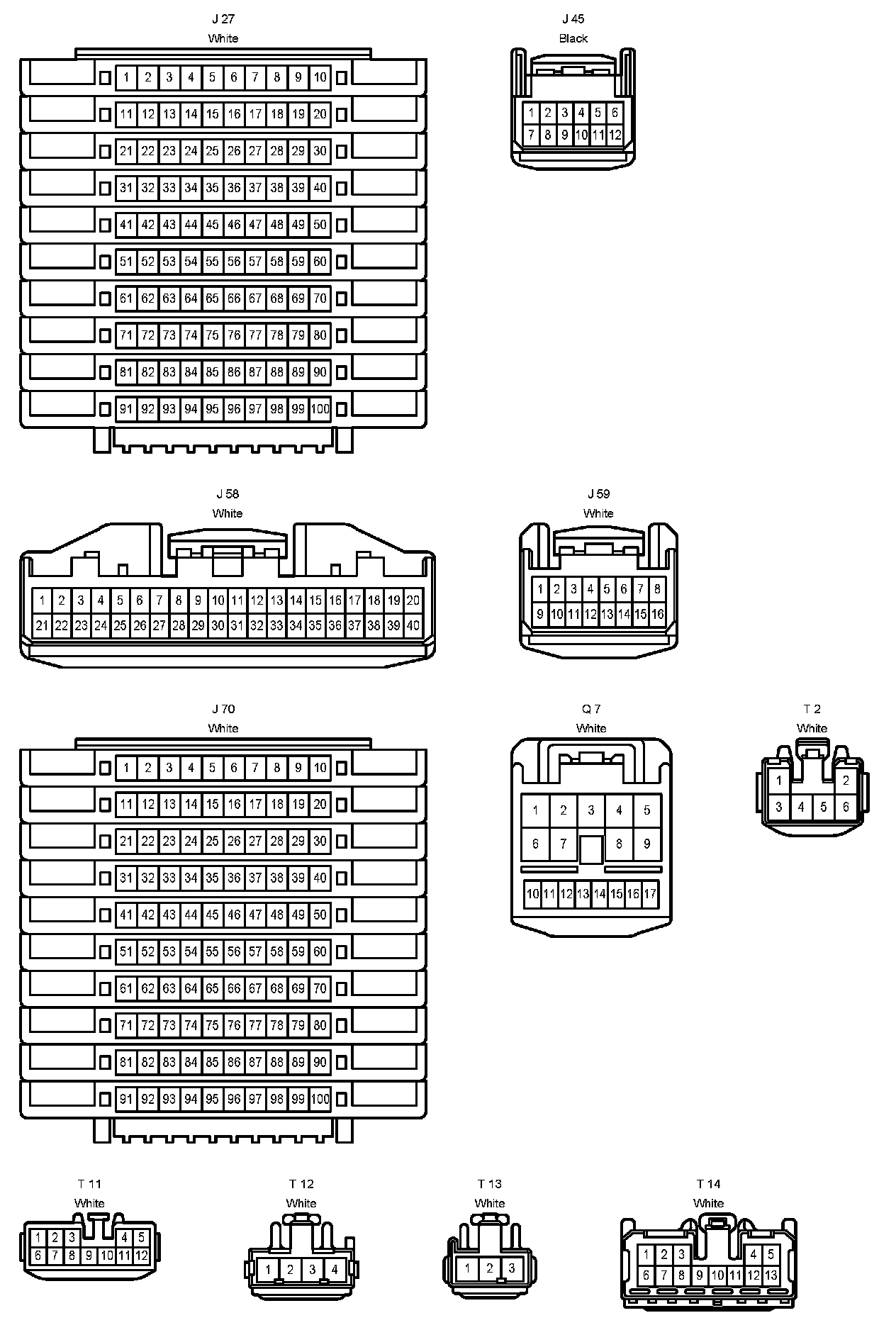

Connector Pin Outs Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
