Reassembly

EXTERIOR: REAR BUMPER:

REASSEMBLY

1. INSTALL UPPER REAR BUMPER RETAINER RH
2. INSTALL UPPER REAR BUMPER RETAINER LH
3. INSTALL NO. 2 REAR BUMPER SIDE SUPPORT RH
4. INSTALL NO. 2 REAR BUMPER SIDE SUPPORT LH
5. INSTALL NO. 1 REAR BUMPER SIDE SUPPORT RH
6. INSTALL NO. 1 REAR BUMPER SIDE SUPPORT LH

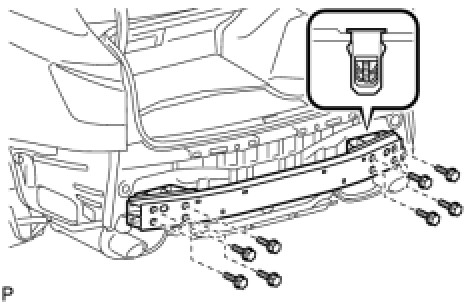

7. INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY






(a) Install the grommet to the rear bumper reinforcement sub-assembly.
(b) Install the rear bumper reinforcement sub-assembly with the 8 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
8. INSTALL REAR BUMPER ARM REINFORCEMENT RH
9. INSTALL REAR BUMPER ARM REINFORCEMENT LH
10. INSTALL REAR BUMPER BAR
11. INSTALL REAR BUMPER ENERGY ABSORBER
12. INSTALL REAR BUMPER COVER
13. INSTALL REAR BUMPER PROTECTOR LH
(a) Install the new rear bumper protector LH.
14. INSTALL REAR BUMPER PROTECTOR RH
15. INSTALL REFLEX REFLECTOR ASSEMBLY RH
16. INSTALL REFLEX REFLECTOR ASSEMBLY LH
17. INSTALL REAR BUMPER PIECE RH
18. INSTALL REAR BUMPER PIECE LH
19. INSTALL NO. 3 LUGGAGE ROOM WIRE (w/ Clearance Sonar System)
20. INSTALL NO. 2 ULTRASONIC SENSOR RETAINER (w/ Clearance Sonar System)
21. INSTALL NO. 2 ULTRASONIC SENSOR (w/ Clearance Sonar System) Installation

22. INSTALL NO. 1 ULTRASONIC SENSOR (w/ Clearance Sonar System) Installation
