Disassembly

EXTERIOR: REAR BUMPER:

DISASSEMBLY

1. REMOVE NO. 1 ULTRASONIC SENSOR (w/ Clearance Sonar System) Removal

2. REMOVE NO. 2 ULTRASONIC SENSOR (w/ Clearance Sonar System) Removal

3. REMOVE NO. 2 ULTRASONIC SENSOR RETAINER (w/ Clearance Sonar System)
4. REMOVE NO. 3 LUGGAGE ROOM WIRE (w/ Clearance Sonar System)

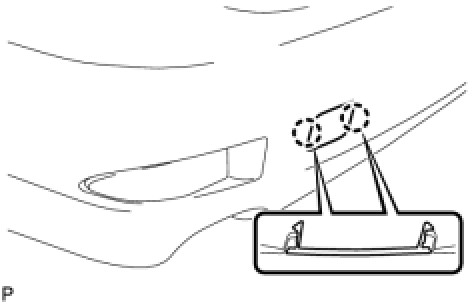

5. REMOVE REAR BUMPER PIECE LH






(a) Disengage the 2 claws and remove the rear bumper piece LH.
6. REMOVE REAR BUMPER PIECE RH

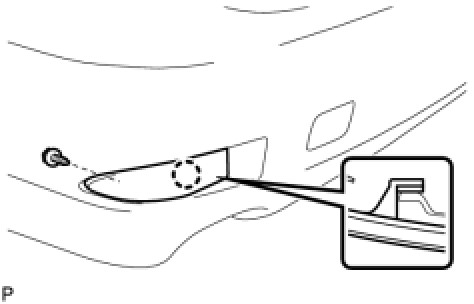

7. REMOVE REFLEX REFLECTOR ASSEMBLY LH






(a) Remove the screw.
(b) Disengage the claw and remove the reflex reflector assembly LH.
8. REMOVE REFLEX REFLECTOR ASSEMBLY RH
9. REMOVE REAR BUMPER PROTECTOR LH
(a) Remove the rear bumper protector LH.
10. REMOVE REAR BUMPER PROTECTOR RH
11. REMOVE REAR BUMPER COVER

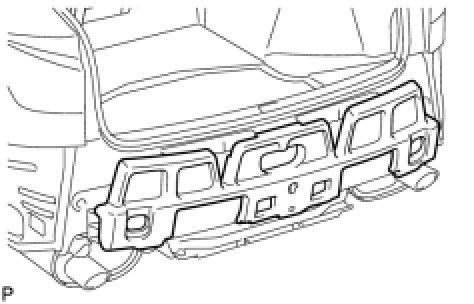

12. REMOVE REAR BUMPER ENERGY ABSORBER






(a) Remove the rear bumper energy absorber with rear bumper bar.

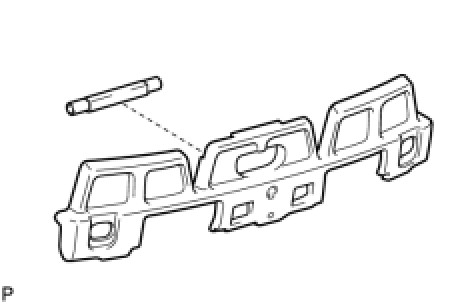

(b) Remove the rear bumper energy absorber from the rear bumper bar.
13. REMOVE REAR BUMPER BAR

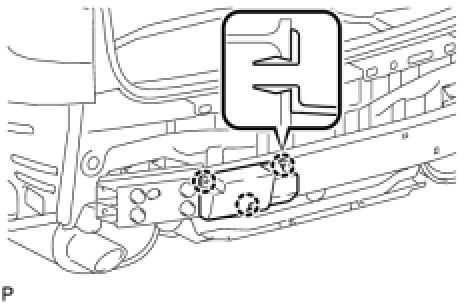

14. REMOVE REAR BUMPER ARM REINFORCEMENT LH






(a) Disengage the 3 claws and remove the rear bumper arm reinforcement LH.
15. REMOVE REAR BUMPER ARM REINFORCEMENT RH

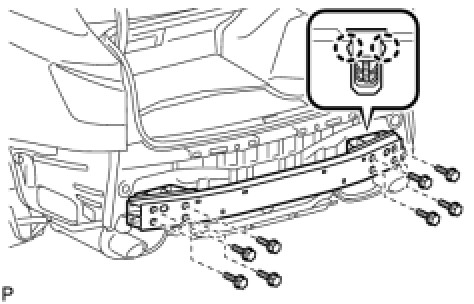

16. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY






(a) Remove the 8 bolts.
(b) Disengage the 2 claws and remove the rear bumper reinforcement sub-assembly.
(c) Remove the grommet.

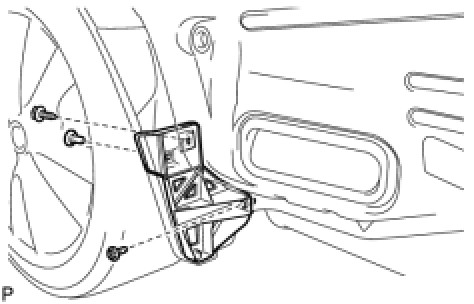

17. REMOVE NO. 1 REAR BUMPER SIDE SUPPORT LH






(a) Remove the 2 screws, clip and No. 1 rear bumper side support LH.
18. REMOVE NO. 1 REAR BUMPER SIDE SUPPORT RH
19. REMOVE NO. 2 REAR BUMPER SIDE SUPPORT LH






(a) Remove the 2 screws and No. 2 rear bumper side support LH.
20. REMOVE NO. 2 REAR BUMPER SIDE SUPPORT RH

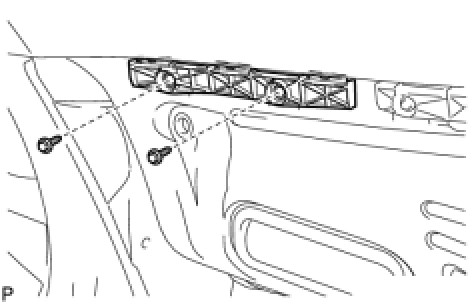

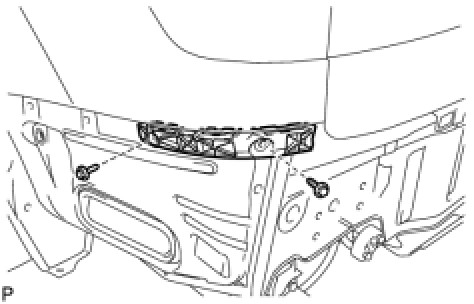

21. REMOVE UPPER REAR BUMPER RETAINER LH






(a) Remove the 2 screws and upper rear bumper retainer LH.
22. REMOVE UPPER REAR BUMPER RETAINER RH
