Installation

NAVIGATION: MULTI-DISPLAY:

INSTALLATION

1. INSTALL MULTI-DISPLAY
2. INSTALL CLOCK ASSEMBLY Installation

3. INSTALL NAVIGATION ECU Installation

4. INSTALL MULTI-DISPLAY ASSEMBLY

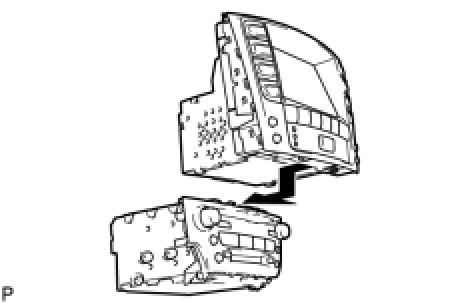

(a) Install the multi-display assembly as shown in the illustration.
5. INSTALL NO. 2 RADIO BRACKET Installation

6. INSTALL NO. 1 RADIO BRACKET Installation

7. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY Installation

8. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Installation

9. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

10. INSTALL CONSOLE BOX Installation

11. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

12. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY Installation

13. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

14. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

15. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation

16. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

17. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

18. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
19. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
20. ADJUST CLOCK
