A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Transfer Case Four Wheel Drive Control System - UF1AE
Transfer Case Four Wheel Drive Control System - UF1AE
UF1AE TRANSFER: FOUR WHEEL DRIVE CONTROL SYSTEM:

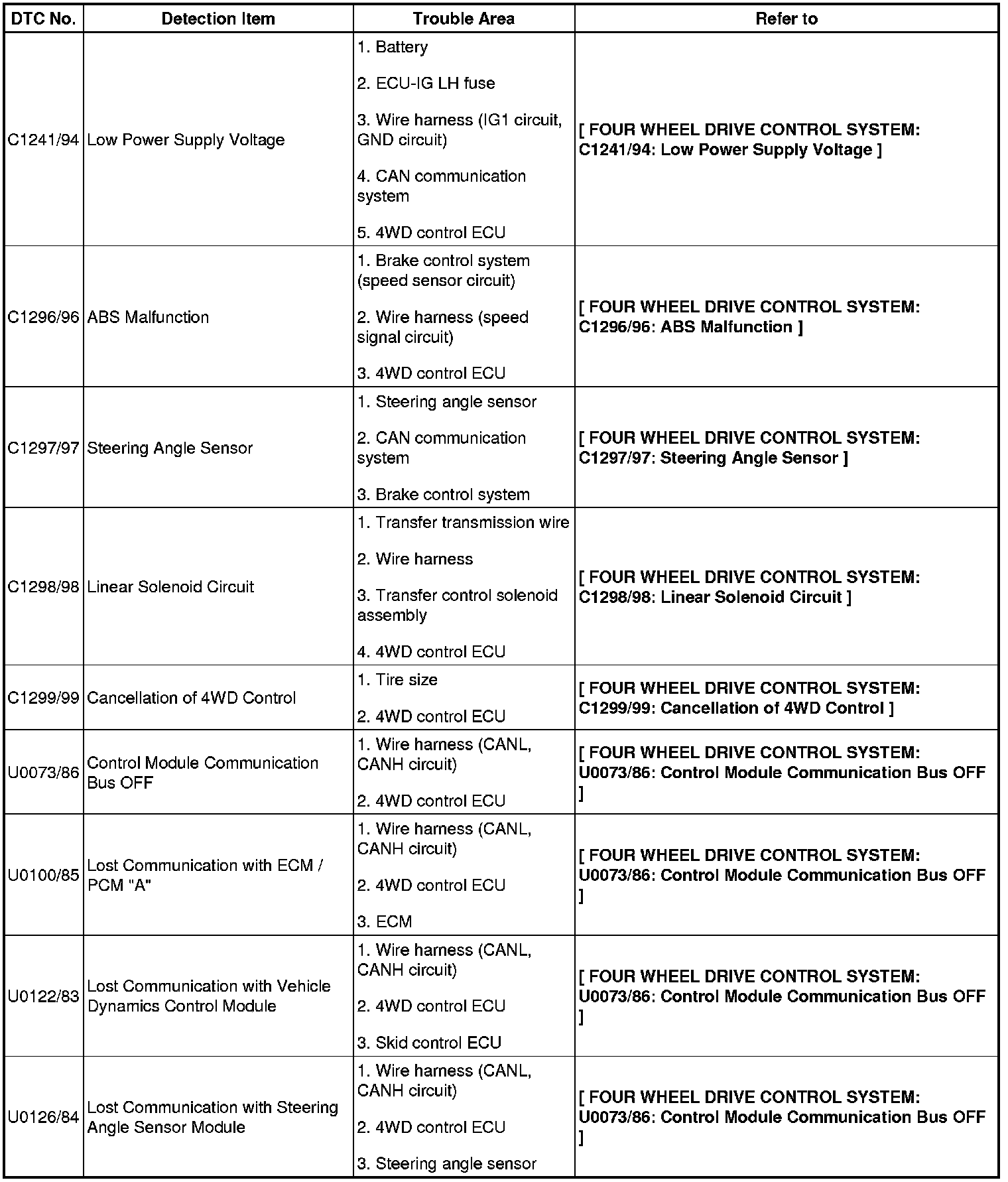

DIAGNOSTIC TROUBLE CODE CHART
FOUR WHEEL DRIVE CONTROL SYSTEM
C1241/94 - U0126/84:
