System Specifications

Timing Chain Tensioner
No. 2 chain tensioner x Cylinder head 10 Nm (102 kgf-cm, 7 ft lbf)
No. 1 chain tensioner x Cylinder head 10 Nm (102 kgf-cm, 7 ft lbf)
No. 3 chain tensioner x Cylinder head 10 Nm (102 kgf-cm, 7 ft lbf)

Timing cover

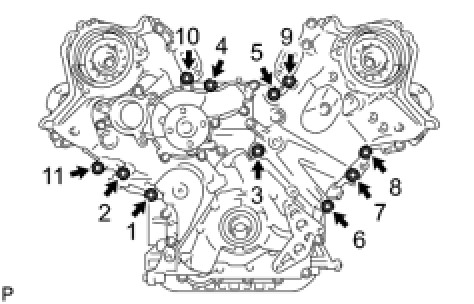

Tighten the 11 bolts in several steps, in the sequence shown in the illustration.
Torque 47 Nm (479 kgf-cm, 35 ft-lbf)

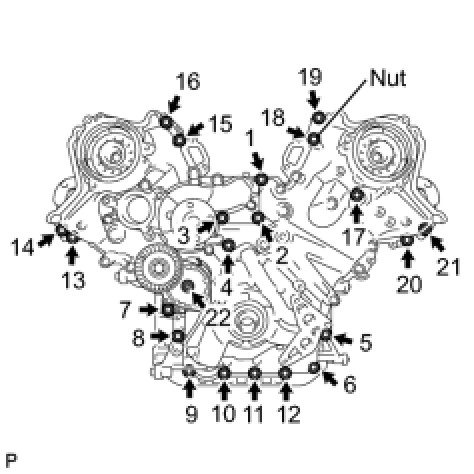

Tighten the 21 bolts and nut in several steps, in the sequence shown in the illustration
Torque 23 Nm (235 kgf-cm, 17 ft-lbf)





Crankshaft pulley x Crankshaft 300 Nm (3059 kgf-cm, 221 ft lbf)
