Removal

BRAKE CONTROL: SKID CONTROL ECU (for 1UR-FSE): REMOVAL

BRAKE CONTROL: SKID CONTROL ECU

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE ENGINE ROOM SIDE COVER LH Removal

3. REMOVE SKID CONTROL ECU ASSEMBLY

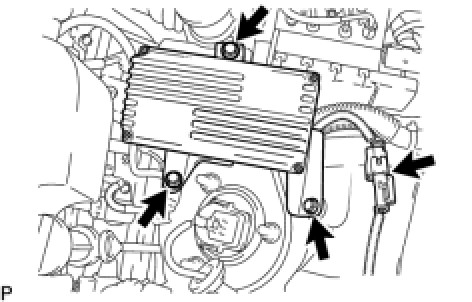

(a) Disconnect the connector.
(b) Remove the 3 bolts and skid control ECU assembly.

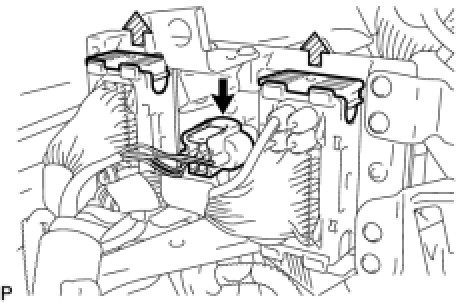

(c) Pull the 2 lock levers upward to release the lock and disconnect the 3 connectors.
