Components

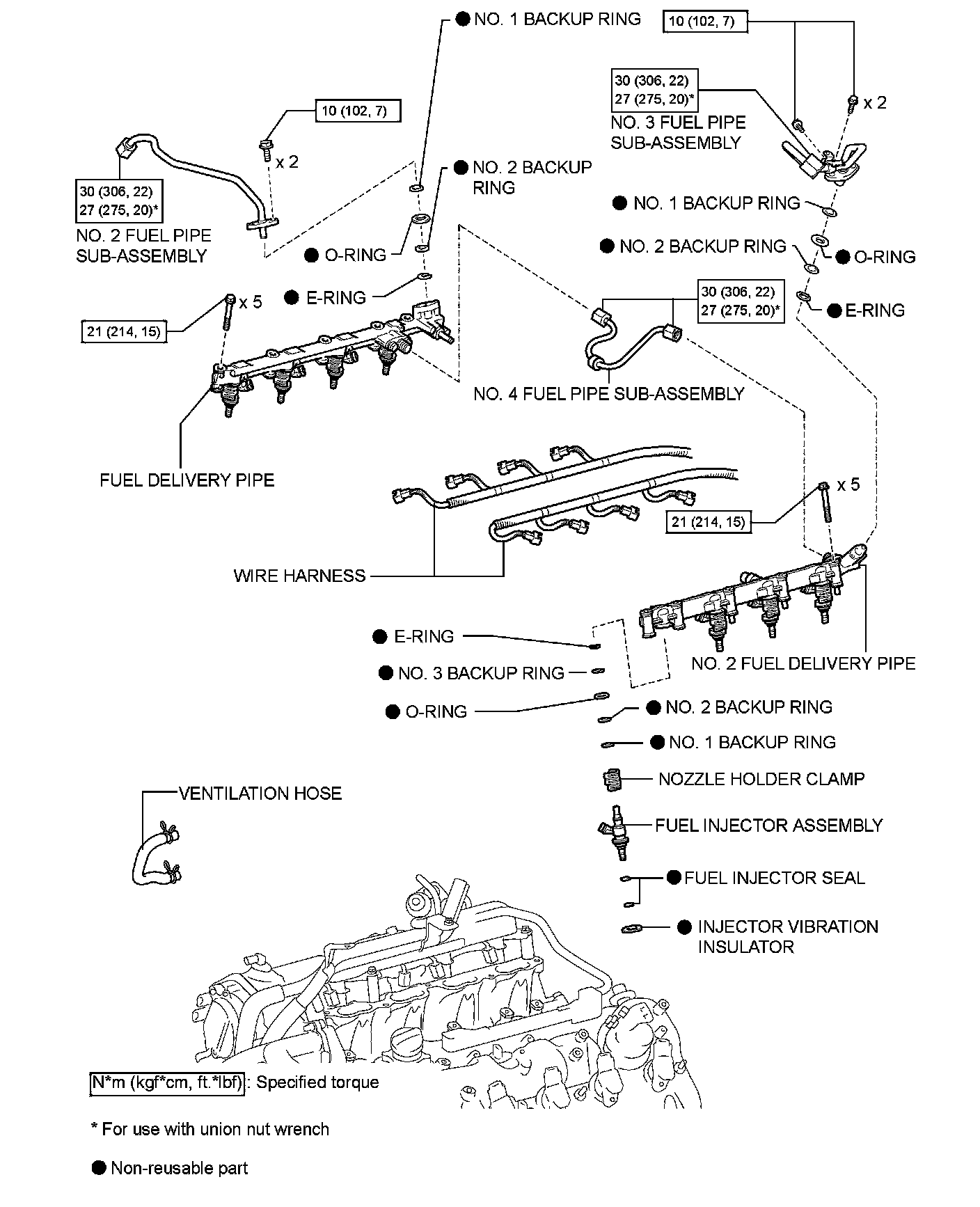

1UR-FSE FUEL: FUEL INJECTOR (for Direct Injection): COMPONENTS

1UR-FSE FUEL: FUEL INJECTOR

ILLUSTRATION
