Installation

1UR-FSE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: INSTALLATION

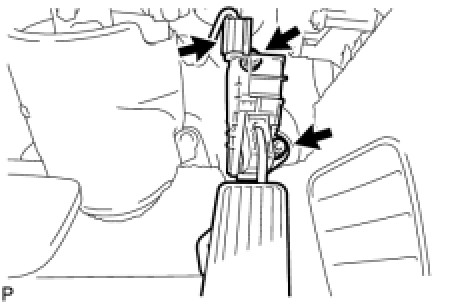

1. INSTALL ACCELERATOR PEDAL






(a) Install the accelerator pedal with the 2 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
NOTICE:

- Avoid physical shocks to the accelerator pedal.
- Do not disassemble the accelerator pedal assembly.


(b) Connect the accelerator pedal sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
