1UR-FSE ENGINE CONTROL SYSTEM: HEATED OXYGEN SENSOR: REMOVAL

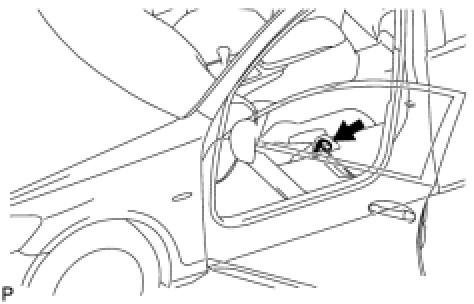

1. REMOVE FRONT SEAT ASSEMBLY RH (for Bank 1 Sensor 2)
Removal
2. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)






(a) Disconnect the heated oxygen sensor connector.
(b) Remove the grommet.

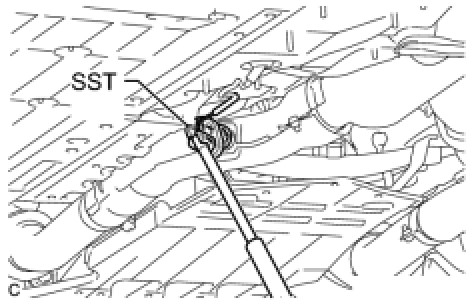

(c) Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
SST: 09224-00010

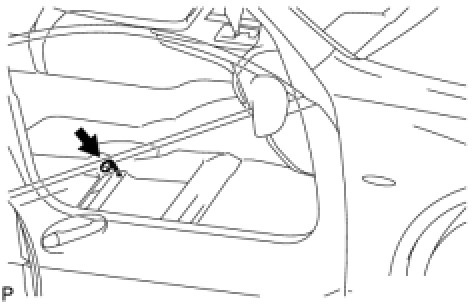

3. REMOVE FRONT SEAT ASSEMBLY LH (for Bank 2 Sensor 2)
Removal
4. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)






(a) Disconnect the heated oxygen sensor connector.
(b) Remove the grommet.

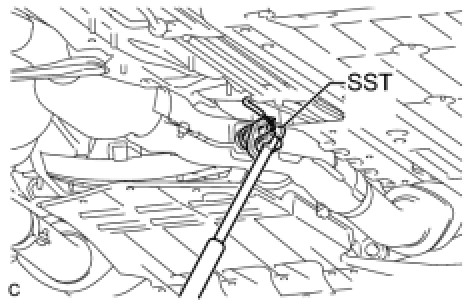

(c) Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
SST: 09224-00010
