Installation

1UR-FSE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSTALLATION

1. INSTALL KNOCK SENSOR

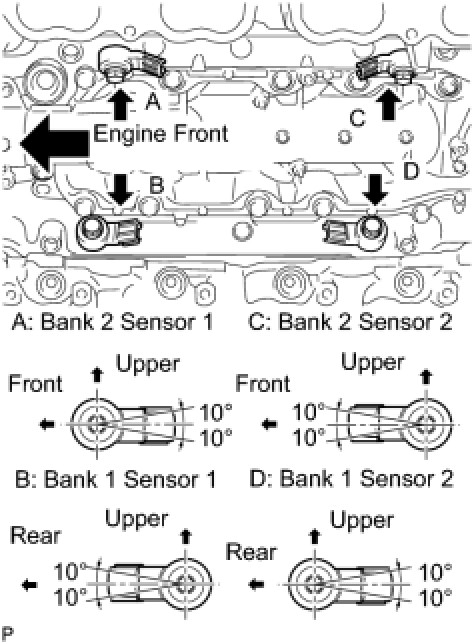

(a) Install the 4 knock sensors with the 4 bolts so that the sensors are angled as shown in the illustration.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
NOTICE:
The acceptable installation angle of the knock sensors is between 10° upwards and downwards from the horizontal position.

(b) Connect the 4 knock sensor connectors.
2. INSTALL SEPARATOR CASE






(a) Install the case separator with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)






(b) Connect the fuel pressure sensor connector.
3. INSTALL NO. 4 FUEL PIPE SUB-ASSEMBLY Installation

4. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY LH Installation

5. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY Installation

6. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation

7. INSTALL INTAKE MANIFOLD
(a) Install the intake manifold Installation
