1UR-FSE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: INSTALLATION

1. INSTALL ENGINE REAR OIL SEAL

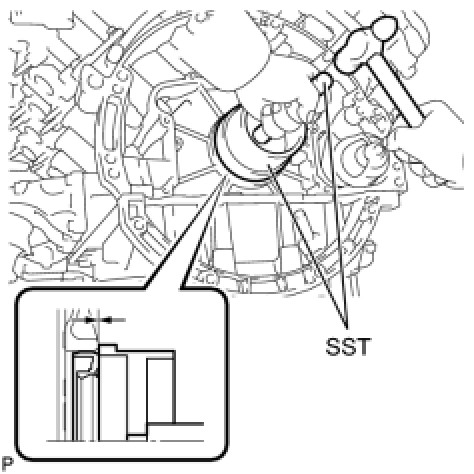

(a) Using SST, tap in a new engine rear oil seal until its surface is flush with the oil seal retainer edge.
SST: 09223-15030
SST: 09950-70010
09951-07150
NOTICE:

- Keep the lip free from foreign matter.
- Do not tap on the oil seal at an angle.


2. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY Installation

3. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
(a) Install the automatic transmission assembly Installation.
