Components

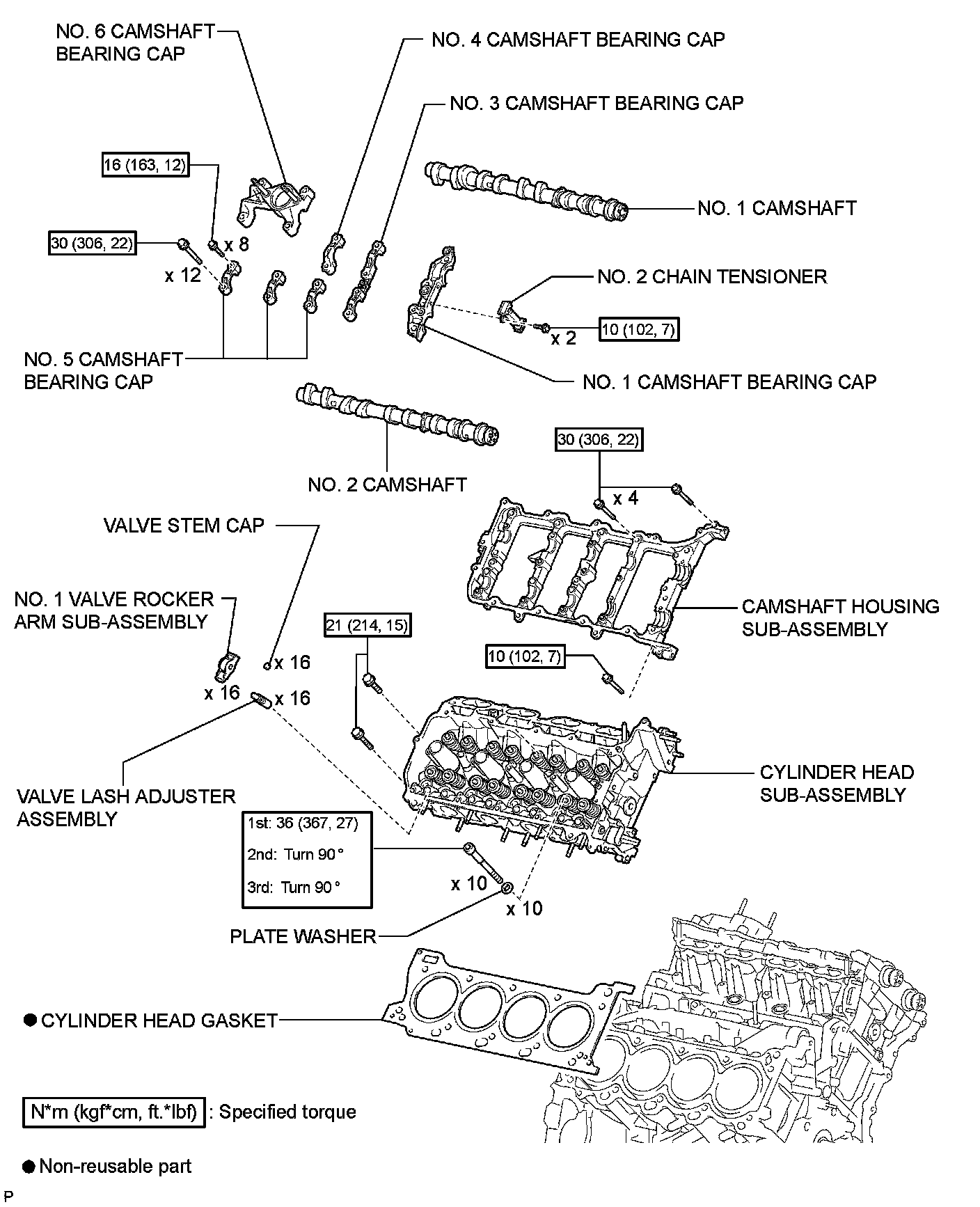

1UR-FSE ENGINE MECHANICAL: CYLINDER HEAD GASKET (for Bank 2): COMPONENTS

1UR-FSE ENGINE MECHANICAL: CYLINDER HEAD GASKET

ILLUSTRATION
