Installation

BRAKE CONTROL: SKID CONTROL ECU (for 1UR-FSE): INSTALLATION

BRAKE CONTROL: SKID CONTROL ECU

1. INSTALL SKID CONTROL ECU ASSEMBLY

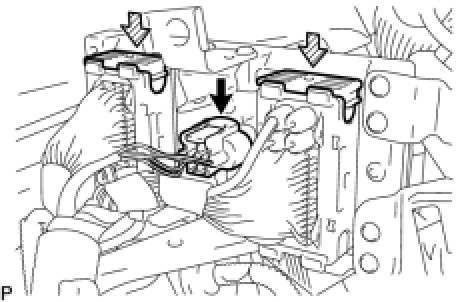

(a) Connect the 3 connectors and press the lock levers down to lock the connectors.
NOTICE:
Make sure that the lock levers securely lock the connectors.





(b) Install the skid control ECU assembly with the 3 bolts.
Torque: 17 Nm (173 kgf-cm, 12 ft-lbf)
(c) Connect the connector.
2. INSTALL ENGINE ROOM SIDE COVER LH Installation

3. CONNECT BATTERY CABLE TO BATTERY NEGATIVE TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. CHECK AND CLEAR DTC
Electronically Controlled Brake System
