P060B

1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P060B: Internal Control Module A/D Processing Performance

DTC P060B - Internal Control Module A/D Processing Performance

DESCRIPTION

This DTC is output when a communication error occurs in the ECM.






MONITOR STRATEGY

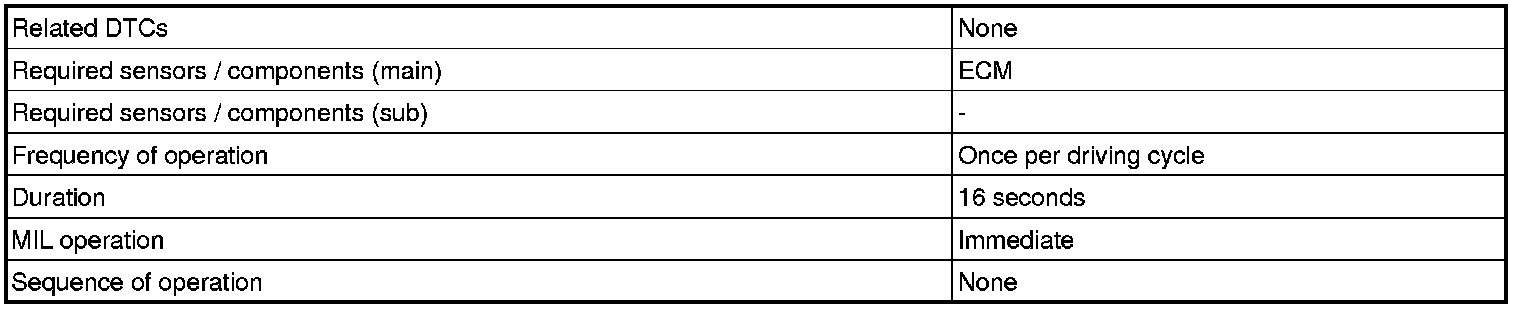

TYPICAL ENABLING CONDITIONS

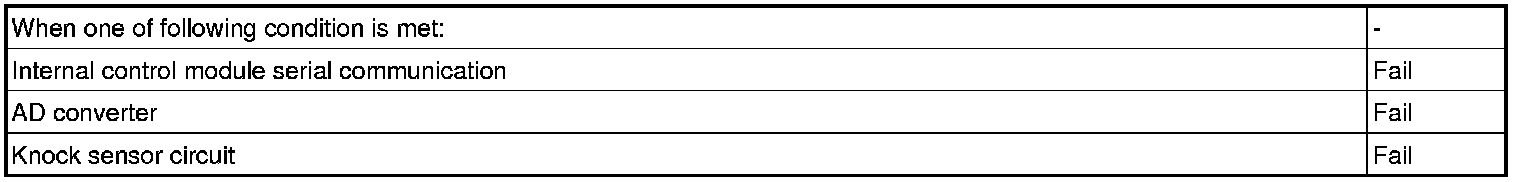

TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC
(a) Clear DTC DTC Check / Clear.
(b) Turn the engine switch OFF.
(c) Disconnect the cable from the negative battery terminal and wait for 1 minute.
(d) Connect the cable to the negative battery terminal.
(e) Turn the engine switch ON (IG).
(f) Check DTC.

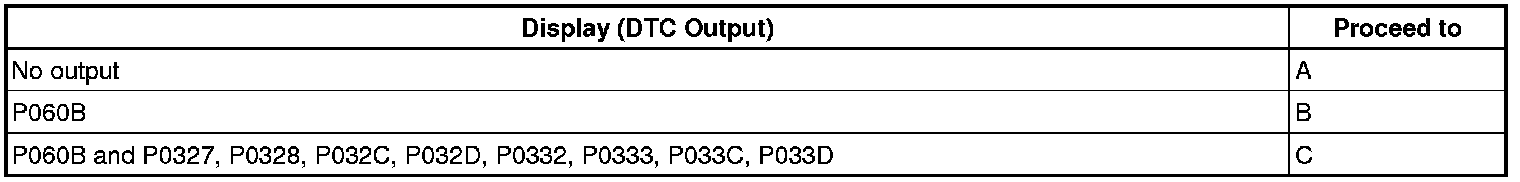

Result





C -- GO TO DTC (P0327, P0328, P032C, P032D, P0332, P0333, P033C and P033D)
B -- REPLACE ECM
A -- CHECK FOR INTERMITTENT PROBLEMS
