Removal

WIPER AND WASHER: FRONT WASHER MOTOR: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal

3. REMOVE ENGINE UNDER COVER (for 2WD) Removal

4. REMOVE ENGINE UNDER COVER (for 4WD) Removal

5. REMOVE FRONT FENDER LINER LH
(a) Using a screwdriver, remove the 2 clips.
(b) Remove the 2 bolts and partially remove the fender liner.
HINT:
It is not necessary to fully remove the fender liner. Partially remove it so that the bumper cover, windshield washer jar and pump can be removed in a later step.

6. REMOVE FRONT FENDER LINER RH

(a) Using a screwdriver, remove the 2 clips and partially remove the fender liner.
HINT:
It is not necessary to fully remove the fender liner. Partially remove it so that the bumper cover can be removed in a later step.

7. REMOVE FRONT BUMPER COVER Removal

8. REMOVE NO. 3 COOL AIR INTAKE DUCT SUB-ASSEMBLY
(a) Remove the 3 bolts and duct.
9. REMOVE HEADLIGHT ASSEMBLY LH Removal

10. DRAIN WASHER FLUID

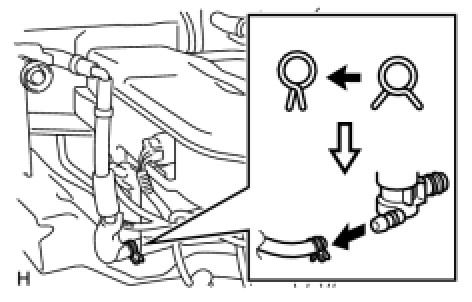

(a) Remove the washer hose from the windshield washer motor and pump, and drain the washer fluid.
11. REMOVE WINDSHIELD WASHER JAR AND PUMP ASSEMBLY
(a) w/o Headlight cleaner system:

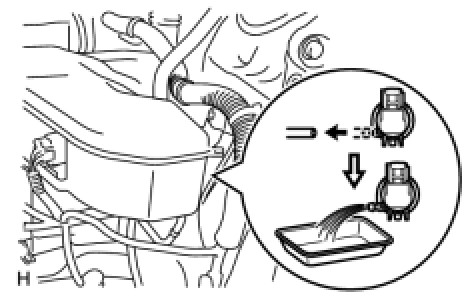

Disconnect the 2 connectors.
(b) w/ Headlight cleaner system:
Disconnect the 4 connectors.

(d) Remove the bolt.

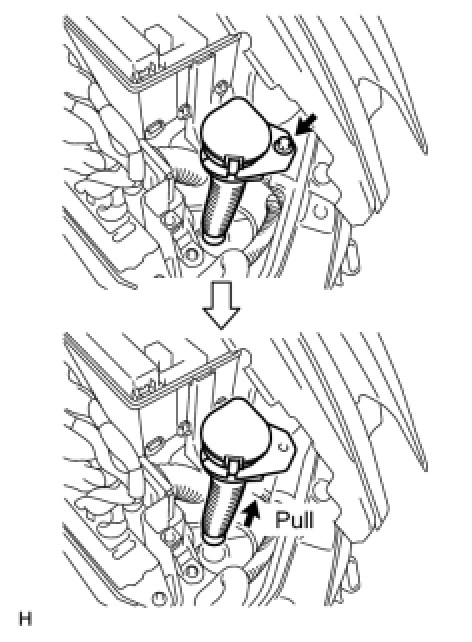

(e) Pull the upper part of the washer jar and pump upward. Then remove it from the windshield washer jar and pump.

(f) Remove the 3 bolts. Then remove the windshield washer jar and pump.
12. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
13. REMOVE HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY (w/ Headlight Cleaner System)
14. REMOVE HEADLIGHT CLEANER CONTROL RELAY (w/ Headlight Cleaner System)
